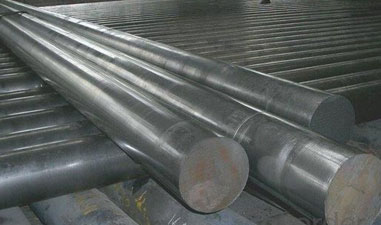

Stainless Steel 316 Round Bar
Manufacturer of ASTM A276 Type 316 Rod, View A479 Gr 316 Flat Bar Dimensions
Stainless Steel 316 Round Bar is made up of a stainless steel that is austenitic. The material has chromium, nickel and molybdenum in its composition. The molybdenum content makes the Stainless Steel 316 Round Bar products to be more corrosion resistant than the 304 grade of stainless steel. Navstar Steel is a leading supplier and manufacturer of these products in different types and specifications.
Stainless Steel 316 Round Bar
ASTM A276 Type 316 Rod
SS 316 Round Bar
We are Largest 316 Stainless Steel Round Bar, SS 316 Hex Bar Sizes, Stainless Steel 316 Square Bar in India
The ASTM A276 Type 316 Rod is a specification for hot rolled and cold drawn rods except for the forged ones. The material is hard, strong and high temperature capable. It can also be used under the A479 specification as pressure vessel category. The bars are in different forms such as the A479 Gr 316 Flat Bar, round, square, billet, ingot and SS 316 Round Bar. The dimensions vary according to the application requirements. The bars can range from 4mm to 500mm in outer diameters. The length of the bars ranges from 1m to 6m and cut to lengths are available for custom orders as well.
Table of Contents
- ASTM A276 Type 316 Rod Specifiaction Chart
- Size Chat of A479 Gr 316 Flat Bar
- Various Type of Stainless Steel 316 Square Bar
- Equivalent Material of 316 Stainless Steel Half Round Bar
- Hot Rolled 316 Stainless Steel Bars Weight Chart
- 316 SS Round Bar Price List
- 316 Stainless Steel Round Bar Chemical Formula
- SS 316 Hex Bar Mechanical Strength
The UNS S31600 Stainless Steel Round Bar composition has nickel, carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum and nitrogen in the composition. The density and the melting point of the material are similar to those of the 304 grade steel. The SS 316 Hex Bar Sizes range from 18mm to 57mm and these are stronger because of the geometrical shape. The minimum tensile strength of the material is at 515MPa and the minimum yield strength is at 205MPa. The hardness is 217BNH maximum for these products. Please contact us for more information on the Stainless Steel 316 Square Bar and other types and their prices.
ASTM A276 Type 316 Rod Specifiaction Chart
| Dimensions Chart | DIN, JIS, ASME, EN, ASTM, BS, AISI |
|---|---|
| size in milimeter | 3-~800 milimeter Diameter |
| SUS316 Flat bars size & Schedule | 2 -100 milimeter Thickness |
| Surface Finish | Cold (bright) drawn, smooth turned, centreless ground, peeled, hot rolled, hot rolled annealed, Bright, Polish, Rough Turned, Grinding, slit rolled edge, Centreless Ground & Black |
| ASTM A276 Type 316 Cold Rolled Bar Technique | 316 Stainless Steel Cold Drawn, Forged Round Bar, Hot Rolled, Cold Rolled, Rod |
| SS 316 Rod Processing | Bar cutting to 650mm |
| SUS316 T-Bar Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Rolled Stainless Steel 316 Flat Bars Condition | Hardened & tempered, annealed |
| Stainless Steel 316 Grade | SS 316 (UNS S31600) |
| SS 316 Standard | ASTM A276, ASME SA276 and ASTM A479 ASME SA479 |
| Stainless Steel 316 Hex Bar size Chart | 2 to 100milimeter A/F |
| Stainless Steel 316 Channel Bars | 80 x 40 - 150 x 75milimeter; thickness upto 5.0 - 6.0milimeter |
| SUS316 Rectangular Bars Section | thickness: 3.0 to 12.0mm |
| SS 316 Threaded Bar Billet Size Chart | 1/2 - 495mm Diameter Width: 10 to 500mm |
| Sizes of SS 316 Angle bars | 3mm*20mm*20mm to 12mm*100mm*100mm |
| Stainless Steel 316 Square bar Sizes | 4 to 100mm |
| Stainless Steel 316 Rectangles Sizes | 33mm x 30mm to 295mm x 1066mm |
| ASTM A276 Type 316 Hollow Bars | 32mm Outside dia x 16mm inside dia to 250mm Outside dia x 200mm inside dia) |
| ASTM A276 Type 316 Hollow Bar Tolerance | H13K9, H8 to H12, K10 to K12 or as per clients’ requirements |
Get 316 Stainless Steel Half Round Bar, Hot Rolled SS 316 Round Bar, UNS S31600 Forged Bars. Check 316 SS Hollow Bar Sizes
Size Chat of A479 Gr 316 Flat Bar
| Type | SIZES (Inches) | SIZES (mm) | ISO Tolerance |
|---|---|---|---|
| Peeled and Polished | 1.50 - 6.00 | 40.00 - 150.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 1/8 - 3.00 | 3.00 to 75.00 | h8, h9, h10, h11 |
| Cold Drawn and Ground | 5/6 - 2.50 | 10.00 to 75.00 | h8, h9, h10, h11 |
| Peeled and Ground | 3/4 - 2.00 | 20.00 to 50.00 | h9, h10, h11 |
Length of 316 Stainless Steel Bars is 2000 to 6000 mm.
|
5.0
|
45.0
|
|
6.0
|
50.0
|
|
7.0
|
55.0
|
|
8.0
|
60.0
|
|
9.0
|
65.0
|
|
10.0
|
70.0
|
|
12.0
|
75.0
|
|
16.0
|
80.0
|
|
20.0
|
90.0
|
|
25.0
|
100.0
|
|
30.0
|
130.0
|
|
35.0
|
160.0
|
|
40.0
|
200.0
|
Various Type of Stainless Steel 316 Square Bar
316 SS round bars 10 milimeter
SS Dia 12milimeter 12.7 milimeter 3/8"" 1/2"" Round Bars
10 20 30 50 milimeter cold drawn 316 polished ss round bar rod
SS 316 25mm round bar
20mm SS hex Bar
steel round bars rod 10mm 12mm
Equivalent Material of 316 Stainless Steel Half Round Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐032 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Special Price Offer For 316 Stainless Steel Hexagon Bars, Stainless Steel 316 Bars. Check Stainless Steel Werkstoff Nr. 1.4435 Threaded Round Bars Weight Chart.
Hot Rolled 316 Stainless Steel Bars Weight Chart
| Diameter in milimeter | Weight Chart in kg | Diameter in inch | Weight Chart in kg |
|---|---|---|---|
| 3 | 0.06 | 1/8" | 0.06 |
| 4 | 0.10 | 3/16" | 0.14 |
| 5 | 0.16 | 1/4" | 0.25 |
| 6 | 0.22 | 5/16" | 0.39 |
| 7 | 0.30 | 3/8" | 0.56 |
| 8 | 0.40 | 7/16" | 0.77 |
| 10 | 0.62 | 1/2" | 1.00 |
| 12 | 0.89 | 9/16" | 1.22 |
| 14 | 1.22 | 5/8" | 1.56 |
| 15 | 1.40 | 11/16" | 1.89 |
| 16 | 1.59 | 3/4" | 2.25 |
| 18 | 2.01 | 7/8" | 3.07 |
| 20 | 2.48 | 1" | 4.03 |
| 22 | 3.00 | ||
| 24 | 3.57 | ||
| 25 | 3.88 |
316 SS Round Bar Price List
| Stainless Steel 316 Round Bar Price List | Price in India |
|---|---|
| Hot rolled 316 flat round square ss bar Price | $1,000.00-$2,000.00/ Ton |
| ASTM 316 2Cr13 Solid Rod / SS Round Bar Prices | $2.00-$3.00/ Kilogram |
| 316 SS hex bars Price Per Kg | $1,000.00-$5,000.00/ Ton |
| 10mm 16mm 18mm 20mm 25mm 316 SS Round bar Price | $900.00-$2,900.00/ Ton |
Supplies A Full Range Of SS 316 Welding Rod, ASTM A479 Gr316 Rods, SS 316 Threaded Bar, 316 SS Polished Bar. View SS 316 Rod Chemical Composition, 316 SS Round Bar at factory Prices
316 Stainless Steel Round Bar Chemical Formula
| Grade | Carbon | Manganese | Silicon | Phospherous | Sulfur | Chromium | Molybdenum | Nickel | Nitrogen |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.3 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 - 18 | 2 - 3 | 10 - 14 | 0.10 max |
SS 316 Hex Bar Mechanical Strength
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
