Titanium Grade 2 Round Bar
Manufacturer of ASTM B348 Gr 2 Rods, Titanium Gr 2 Hex Bars
Titanium Grade 2 Round Bar is made up of a commercially pure titanium grade with over 99% titanium in it. The material comes under the specification ASTM B348 and the dimensions are according to the standards EN, DIN, JIS, ASTM, BS, ASME and AISI. Navstar Steel is a leading manufacturer and supplier of the Titanium Grade 2 Round Bar products in various scales and types. The width of the bars range from 5mm to 500mm with the diameters ranging from 0.1mm to 100mm.

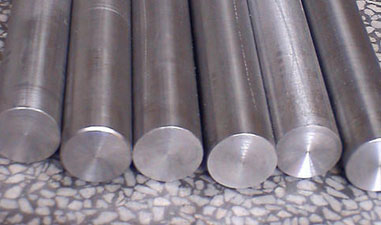

Titanium Grade 2 Round Bar

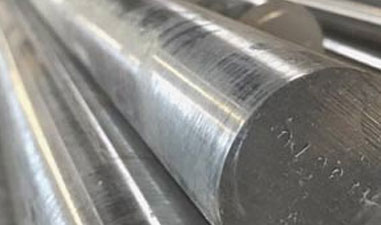

ASTM B348 Gr 2 Rods

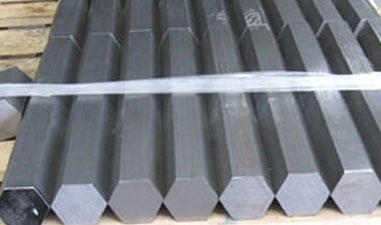

Titanium Gr 2 Hex Bars

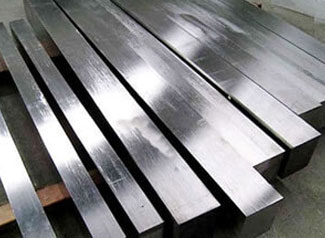

Buy 2mm, 3mm, 6mm Titanium ASTM B348 Grade 2 Flat Bars at lowest price in India, Check Specification of 16mm cold rolled Titanium UNS R50400 Forged Bars
The ASTM B348 Gr 2 Rods can vary in length ranging from 100mm to 3000mm in general but lengthier bars are also produced and per customer requirements. The bars have different tolerance levels denoted as H8 through H13 and K9 through K12. There are different forms of the bars such as the Titanium Gr 2 Hex Bars, round bars, square, rectangle, billet, ingot, forging and more. There are also different finishes to these bars such as black, bright polished, rough turned, No 4 finish, matt finish and BA finish.
Table of Contents
- Material Specification Chart of ASTM B348 Gr 2 Rods
- Titanium Gr 2 Hex Bars Sizes In Mm
- Composition Chart of Titanium ASTM B348 Grade 2 Flat Bars
- UNS R50400 Forged Bars Mechanical Properties Chart
- Various Types Of Grade 2 Ti Square Bar
- Hot Rolled Ti Alloy Grade 2 Black Bar Equivalent Grade
- Physical property of Titanium Gr 2 Threaded Bar
- Thickness Chart Of Titanium Alloy Grade 2 Bars
- Grade 2 Titanium Alloy Triangular bar Tolerance Standard
- Titanium Werkstoff Nr. 3.7035 Polished Bar Prices
The Titanium ASTM B348 Grade 2 Flat Bars have a composition of titanium, carbon, iron, hydrogen, nitrogen and oxygen. This composition is responsible for the extreme mechanical properties of the material. The material has 344MPa minimum tensile strength and 275MPa minimum yield strength. The Titanium UNS R50400 Forged Bars also have 1665 degrees Celsius melting point. This extreme melting point provides the material the space to dominate high temperature applications as well high strength applications. The applications of the Grade 2 Ti Square Bar as well as the others include power generation, petrochemicals, gas processing, heat exchangers, pulp and paper industry, condensers and specialty chemicals. Please contact us for more information on the products and pricing.
Material Specification Chart of ASTM B348 Gr 2 Rods
| Specifications Chart | ASTM B348/ ASTM SB348 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size in mm |
5 mm To 500 mm |
| Diameter in mm | 0.1 mm to 100 mm |
| Length in mm | 100 mm To 3000 mm Long & Above |
| Surface Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Titanium Gr 2 Hex Bars Sizes In Mm
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
| 1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
| 5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
| 3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
| 7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
| 1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
| 5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
| 3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
| 7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
| 11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
| 2-1/2" | 7.576 | 24.856 | ||||||
| 2-5/8" | 8.354 | 27.409 | ||||||
| 2-3/4" | 9.169 | 30.083 | ||||||
Composition Chart of Titanium ASTM B348 Grade 2 Flat Bars
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
UNS R50400 Forged Bars Mechanical Properties Chart
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20% |
Various Types Of Grade 2 Ti Square Bar
4 inch Titanium GR 2 Round Bar
Titanium Grade 2 Bars 6-20 m
3 meter, 14 Inch, ASTM B348 Gr 2 Rods
3 meter, 6 meter, Titanium Gr 2 Round Bars
CP Titanium Grade 2 Round Bars, Size/diameter: >4 inch
50mm To 5 Meter Long Silver Titanium Grade 2 Round Bars
Hot Rolled Ti Alloy Grade 2 Black Bar Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Titanium Grade 2 | 3.7035 | R50400 |
Physical property of Titanium Gr 2 Threaded Bar
Density: 0.163 lbs/in3, 4.51 g/cm3
Mean Coefficient of Thermal Expansion, in/inl° F (mm/ml° C):
70 - 212 ° F (20 - 100 ° C): 4.78 x 10-6 (8.6)
Thermal Conductivity: BTU-in/h-ft-° F (W/m-° K):
At 70 ° F (21 ° C): 114 (16.4)
Modulus of Elasticity, ksi (MPa)
15.2 x 103 (105 x 103) in tension
Melting Point: 3040 ° F (1670 ° C)
Grade 2 Ti Square Bar, Titanium Grade 2 UNS R50400 Threaded Bar. Check Titanium Alloy Grade 2 Bars Sizes, Grade 2 Titanium Alloy Triangular bar Weight Chart
Thickness Chart Of Titanium Alloy Grade 2 Bars
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3 | 0.017 | 0.055 | 20 | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
| 1/8" | 0.019 | 0.062 | 22 | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
| 5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
| 4 | 0.030 | 0.098 | 24 | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
| 3/16" | 0.043 | 0.141 | 25 | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
| 5 | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
| 7/32" | 0.058 | 0.190 | 26 | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
| 6 | 0.068 | 0.223 | 27 | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
| 1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
| 7 | 0.091 | 0.298 | 30 | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
| 5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
| 8 | 0.120 | 0.398 | 32 | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
| 9 | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
| 3/8" | 0.170 | 0.557 | 35 | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
| 10 | 0.189 | 0.620 | 36 | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
| 11 | 0.228 | 0.748 | 38 | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
| 7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
| 12 | 0.271 | 0.889 | 40 | 3.009 | 9.872 | |||
| 1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
| 13 | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
| 14 | 0.368 | 1.207 | 45 | 3.807 | 12.555 | |||
| 9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
| 15 | 0.424 | 1.391 | 48 | 4.330 | 14.205 | |||
| 5/8" | 0.473 | 1.551 | 50 | 4.698 | 15.414 | |||
| 16 | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
| 17 | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
| 11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
| 18 | 0.610 | 2.001 | 60 | 6.768 | 22.205 | |||
| 3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
| 2-1/2" | 7.576 | 24.856 | ||||||
| 2-5/8" | 8.354 | 27.409 | ||||||
| 2-3/4" | 9.169 | 30.083 | ||||||
Grade 2 Titanium Alloy Triangular bar Tolerance Standard
| Tolerances for ot Rolled grade 2 ti Round Bar | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| milimeter | milimeter | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
Tolerances of Turned ASTM B348 grade 2 titanium Round Bar (BS 970-3)
| Turned titanium grade 2 round bar Tolerances | |
|---|---|
| grade 2 titanium round bar diameter and sizes | Permitted variation |
| milimeter | milimeter |
| ≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250 |
Tolerances of Precision ASTM B348 Gr 2 Rods (BS 970-3)
| Precision Gr 2 Ti Round Bar Tolerances | ||||
|---|---|---|---|---|
| Section | Size, diameter |
Permitted overall variation | ||
| Class A | Class B | Class C | ||
| mm | mm | mm | mm | |
| Round | ≧ 6 <75 | 0.05 | 0.025 | 0.013 |
Tolerance of Grade 2 Titanium Alloy Bright Round Bar (BS EN ISO 286-2 )
| Cold Drawn grade 2 titanium round bar Tolerance ISO “H” Series in MM | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE | h5 | h6 | h7 | h8 | h9 | H10 | H11 | h12 |
| DIAMETER milimete | ||||||||
| ~ to 3 | +0.004/0 | +0.006/0 | +0.01/0 | +0.014/0 | +0.025/0 | +0.04/0 | +0.06/0 | +0.1/0 |
| over 3 to 6 | +0.005/0 | +0.008/0 | +0.012/0 | +0.018/0 | +0.03/0 | +0.048/0 | +0.075/0 | +0.12/0 |
| over 6 to 10 | +0.006/0 | +0.009/0 | +0.015/0 | +0.022/0 | +0.036/0 | +0.058/0 | +0.09/0 | +0.15/0 |
| over 10 to 18 | +0.008/0 | +0.011/0 | +0.018/0 | +0.027/0 | +0.043/0 | +0.07/0 | +0.11/0 | +0.18/0 |
| over 18 to 30 | +0.009/0 | +0.013/0 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 | +0.13/0 | +0.21/0 |
| over 30 to 50 | +0.011/0 | +0.016/0 | +0.025/0 | +0.039/0 | +0.062/0 | +0.1/0 | +0.16/0 | +0.25/0 |
| over 50 to 80 | +0.013/0 | +0.019/0 | +0.03/0 | +0.046/0 | +0.074/0 | +0.12/0 | +0.19/0 | +0.3/0 |
| over 80 to 120 | +0.015/0 | +0.022/0 | +0.035/0 | +0.054/0 | +0.087/0 | +0.14/0 | +0.22/0 | +0.35/0 |
| over 120 to 180 | +0.018/0 | +0.025/0 | +0.04/0 | +0.063/0 | +0.1/0 | +0.16/0 | +0.25/0 | +0.4/0 |
| over 180 to 250 | +0.02/0 | +0.029/0 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 | +0.29/0 | +0.46/0 |
Largest Independent Supplier of Titanium Werkstoff Nr. 3.7035 Polished Bar, View ASTM B348 Ti. Alloy Gr. 2 Cold Drawn Round Bar, Titanium Grade 2 Hexagonal Bar Price List.
Titanium Werkstoff Nr. 3.7035 Polished Bar Prices
| Size | Price in India |
|---|---|
| 0.125" Ti Grade 2 Round Bars (10"-12") | $3.43 |
| 0.158" Ti Grade 2 Round Bars (10"-12") | $5.47 |
| 0.1875" Ti Grade 2 Round Bars (36") length | $23.82 |
| 0.25" Ti Grade 2 Round Bars (72") length | $63.38 |
| 0.3125" Ti Grade 2 Round Bar (12") length | $17.91 |
Titanium Gr 2 Round Bar Finish
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Fast Delivery of Grade 2 Alloy Steel Hollow Bars in India. Check ASME SB348 Titanium Gr 2 Rectangular Bar, Check AMS 4921 Titanium Alloy Grade 2 Rod Dimension & Stock
Titanium Grade 2 Hexagonal Bar Stockist
| ASTM B348 Alloy Gr 2 Hex Bar Polished | grade 2 titanium Hexagonal Bar |
| ASTM B348 Alloy Gr 2 Rectangular Bar | Titanium WERKSTOFF NR. 3.7035 Threaded Bar Black |
| Titanium UNS R50400 Round Bar | grade 2 titanium Din 3.7035 Flat Bar |
| Titanium Grade 2 Bar | Alloy grade 2 titanium Flat Bar Black |
| Alloy Gr 2 Rounds | ASME SB 338 gr 2 Flat Bar Bright |
| Titanium Alloy Grade 2 Bright Bar | Alloy Gr 2 Flat Bar Polished |
| Alloy grade 2 titanium Hex Bar Annealed | Titanium WERKSTOFF NR. 3.7035 Cold Drawn Round Bar |
| ASTM B348 grade 2 titanium Round Bars | Titanium Grade 2 Flat Bar stock |
| Titanium WERKSTOFF NR. 3.7035 Hex Bar | Alloy Gr 2 Threaded Bar |
| Titanium Grade 2 Square Bar Polished | Titanium UNS R50400 Bright Bar Hot Rolled |
| 3.7035 grade 2 titanium Hex Bar Bright | Alloy Gr 2 Alloy Hollow Bar |
| Gr 2 Titanium Rectangular Bar Annealed | Alloy grade 2 titanium Polished Hex Bar |
| ASME SB 338 gr 2 Forged Bar | Gr 2 Titanium Polished Bar |
| Alloy Gr 2 Alloy Rods | UNS R50400 Titanium Flat Bar Cold Drawn |
| Alloy Gr 2 Square Bar Cold Drawn | Titanium Grade 2 Bright Bar material |
| grade 2 titanium Rod | Titanium UNS R50400 Flat Bar Annealed |
