Monel 400 Bolts and Nuts

ISO4017 Alloy 400 Fasteners, UNS N04400 Studs manufacturer in India

Monel 400 Bolts and Nuts are made up of a nickel copper alloy that exhibits an extreme corrosion resistance, especially to acidic conditions. The material is also strong and hard and it is used to produce bolts and nuts that are applied for high temperature services. Navstar Steel is a leading manufacturer and supplier of the Monel 400 Bolts and Nuts in various dimensions and types. There are carbon, aluminum, manganese, silicon, iron, sulfur and 63% nickel and 28% copper in the composition. This composition brings the melting point of the material high.

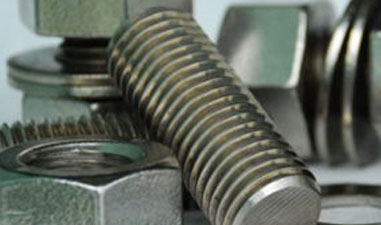

Monel 400 Bolts and Nuts

Alloy 400 Fasteners

UNS N04400 Studs

Wholesale M1.6~M12 Monel 400 Fasteners, Alloy UNS N04400 Set Screws, ASTM F467 400 Monel Stud Bolts Price in India.

The melting point is 1350 degrees Celsius for the Alloy 400 Fasteners. The density of the material is higher than most chromium nickel stainless steel. The density of the monel 400 material is 8.8 grams per centimeter cube. The strength also exceeds that of the 304, 316 and 310 grades of austenitic stainless steel. The minimum yield strength is 240MPa and the minimum tensile strength is 550MPa. The UNS N04400 Studs are made from a single rod of the monel 400 material.

Table of Contents

• Specification Schedule of Alloy 400 Fasteners
• UNS N04400 Studs Dimension Chart
• Monel 400 Fasteners Chemical Properties
• Mechanical Properties of Alloy UNS N04400 Set Screws
• Common Types Of ASTM F467 400 Monel Stud Bolts
• 400 Alloy Threaded Rod Equivalent Material
• Weight Chart Of ASTM F467 Monel Hex Bolts
• 400 Monel Alloy Hex Head Bolt Price per Kg
• Monel 400 Fasteners As Per DIN /BS Grades

The stud is a rod with threads on both ends. Some studs have threads all over the rod some have differently sized threads. There are different variations of the studs and these are used to connect different types of threaded components together. The Monel 400 Fasteners fall under the ASTM F467 specification. There are different standards to govern the dimensions such as the DIN, ASTM and BS standards. The length of the fasteners vary from 3mm 200mm. The sizes also range from M3 to M56 and 3/6 inches to 2 inches and custom sizes as well. The Alloy UNS N04400 Set Screws are one special type because they do not need nuts to fit them in place. There are different types of these screws as well. The hex head bolts, square bolts, U bolts, Eye bolts, T bolts, lag bolts, counter sunk bolts and the ASTM F467 400 Monel Stud Bolts are all different types of bolts used in this category. Please contact us  for more information on the bolts and nuts and the pricing.

Specification Schedule of Alloy 400 Fasteners

Specifications	ASTM F 467 ASME SF 467
Standard	IS, ASTM, BS and all International Standards
Length	3 to 200 milimeter
Size	M3 – M56 | 3/6″ to 2″ | Custom Sizes
Screw Type	Monel 400 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types	Monel 400 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc.
Washer Types	Monel 400 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs Types	Monel 400 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut Types	Monel 400 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.

400 Alloy Threaded Rod, ASTM F467 Monel Hex Bolts, 400 Monel Socket Head Cap Screws, OEM ODM Factory ASME SF 467 Monel Coupling Nut Dimension

UNS N04400 Studs Dimension Chart

Table B4 HEX CAP SCREW DIMENSIONS
Bolt Size	A		B	C (min)	D	F Thread Length for Screw Lengths
	max	min				6" and shorter	over 6"
1/4"	0.2500	0.2450	7/16	0.488	5/32	0.750	1.000
5/16"	0.3125	0.3065	1/2	0.557	13/64	0.875	1.125
3/8"	0.3750	0.3690	9/16	0.628	15/64	1.000	1.250
7/16"	0.4375	0.4305	5/8	0.698	9/32	1.125	1.375
1/2"	0.5000	0.4930	3/4	0.840	5/16	1.250	1.500
9/16"	0.5625	0.5545	13/16	0.910	23/64	1.375	1.625
5/8"	0.6250	0.6170	15/16	1.051	25/64	1.500	1.750
3/4"	0.7500	0.7410	1-1/8	1.254	15/32	1.750	2.000
7/8"	0.8750	0.8660	1-5/16	1.465	35/64	2.000	2.250
1"	1.0000	0.9900	1-1/2	1.675	39/64	2.250	2.500
1-1/8"	1.1250	1.1140	1-11/16	1.859	11/16	2.500	2.750
1-1/4"	1.2500	1.2390	1-7/8	2.066	25/32	2.750	3.000
1-3/8"	1.3750	1.3630	2-1/16	2.273	27/32	3.000	3.250
1-1/2"	1.5000	1.4880	2-1/4	2.480	1-5/16	3.250	3.500
1-3/4"	1.7500	1.7380	2-5/8	2.893	1-3/32	3.750	4.000
2"	2.0000	1.9880	3	3.306	1-7/32	4.250	4.500
2-1/4"	2.2500	2.2380	3-3/8	3.719	1-3/8	4.750	5.000
2-1/2"	2.5000	2.4880	3-3/4	4.133	1-17/32	5.250	5.500
2-3/4"	2.7500	2.7380	4-1/8	4.546	1-11/16	5.750	6.000
3"	3.0000	2.9880	4-1/2	4.959	1-7/8	6.250	6.500

Monel 400 Fasteners Chemical Properties

Element	Content (%)
Nickel, Ni	63.00 min
Silicon, Si	0.5 max
Carbon, C	0.3 max
Sulphur, S	0.024
Copper, Cu	28-34
Iron, Fe	2.5 max
Manganese, Mn	2 max

Mechanical Properties of Alloy UNS N04400 Set Screws

Properties	Metric	Imperial
Tensile strength(annealed)	517-620 MPa	75-90 ksi
Yield strength	172-345 MPa	25-50 ksi
Modulus of elasticity	179 GPa	26000 ksi
Poisson’s ratio	0.32	0.32

Common Types Of ASTM F467 400 Monel Stud Bolts

Alloy Fastener Steel 400 Stud Bolts And Nut

fasteners Alloy 400 (UNS N04400) Ni 66.5 Cu 31.5 hex bolts

monel 400 bolts m36*210 nuts and bolts set

Thread Rod Alloy 400 / 2.4360 / UNS N04400 Stud Bolts

Alloy 400 hex bolts

Monel 400 Heavy Hex Bolts

Monel 400 Hex Bolts Nut N04400 2.4360 M6 - M100

Alloy 400 Nickel alloy Monel 400 fasteners hex bolts hex heavy nut

monel 400 fastener bolts nut washer

M-3 To M 100 Alloy 400 Fasteners

Round Head Steel Monel Fasteners, Size: 2 Mm To 30 Mm

Alloy 400 Fasteners, Size: 2 To 30 Mm

400 Alloy Threaded Rod Equivalent Material

STANDARD	WERKSTOFF NR.	ASTM	UNS	BS	GOST	AFNOR	JIS	EN
Monel 400	2.4360	F467	N04400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NW 4400	NiCu30Fe

400 Monel Alloy Hex Head Bolt DIN933 bolts and nuts set, DIN 2.4360 Monel 400 Screws, Alloy 400 Washers Weight Chart. Monel 400 Nut in Mumbai.

K500 Monel Alloy Washers Weight

MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH in milimeter	DIAMETER
	M 5	M 6	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
16	0.448	0.743	1.590	3.211
20	0.598	0.812	1.711	3.411	4.892
25	0.660	0.897	1.871	3.660	5.252	8.170
30	0.737	1.010	2.070	3.912	5.574	9.690	10.707		18.657
35	0.804	1.120	2.271	4.223	5.974	10.000	11.416	16.026	19.608
40	0.881	1.230	2.470	4.533	6.410	10.288	12.107	16.667	20.747
45	0.958	1.340	2.671	4.840	6.859	10.504	12.821	17.241	21.739
50	1.030	1.450	2.870	5.155	7.299	11.261	13.624	17.857	22.727	28.409
55		1.560	3.071	5.464	7.740	11.628	14.409	18.868	23.810	30.120
60		1.670	3.270	5.774	8.183	12.255	15.244	20.000	25.126	32.051
65		1.781	3.472	6.083	8.621	12.626	16.026	21.008	26.455	34.014
70		1.890	3.671	6.394	9.058	12.987	16.835	22.124	27.778	35.461
75		2.000	3.873	6.702	9.506	13.228	17.606	23.256	29.070	39.063
80		2.111	4.072	7.013	10.000	13.889	18.248	24.510	30.303	40.000
90			4.472	7.634	10.917	14.925	19.841	26.042	33.113	41.667
100			4.873	8.251	11.820	16.340	21.459	27.778	35.714	46.296
110				8.881	12.723	17.730	23.041	31.250	38.168	47.170
120				9.506	13.624	18.797	24.631	32.895	40.984	50.000
130				10.101	14.535	20.000	26.316	34.722	43.478	52.632
140				10.707	15.432	20.833	27.933	35.461	46.296	55.556
150				11.312	16.340	22.222	29.412	37.594	48.544	58.824
160				11.905	17.241	24.272	31.056	40.984	50.505	61.728
170				12.500	18.116		32.680		53.191	64.935
180				13.123	19.011	26.882	34.247		55.556	67.568
190				13.736	19.920		35.971		58.140	70.423
200				14.327	20.833	29.586	37.594	49.020	60.976	73.529
220				15.528	22.624		40.650		65.789	79.365
240				16.722	24.510		43.860		71.429	84.746
250				17.301	25.381		45.455		74.627	87.719
260				17.921	26.316		47.170		76.923	90.909
280				19.157	28.090		50.505		81.967	98.039
300				20.325	29.940		53.763		87.719	104.167
320					31.646		56.818		92.593
340					33.557		60.241		98.039
360					35.211		63.291		104.167
380					37.037		66.667		108.696
400					39.063		69.444		113.636

Hot Sales Hardware Monel WERKSTOFF NR. 2.4360 U Bolts, Monel Gost МНЖМц 28-2,5-1,5 Square Bolts Prices. UNS N04400 Hex Head Bolts, Monel 400 Bolts manufacturers in India.

400 Monel Alloy Hex Head Bolt Price per Kg

Monel 400 Fasteners Price List	Price Per Pcs
Alloy 400 Machine bolts price	USD $5.50
Monel 400 Hex Bolts price	USD $6.50
Alloy 400 Socket Head Cap Screw price	USD $3.35
Monel 400 Screws price	USD $3.40

Monel 400 Fasteners As Per DIN /BS Grades

Hexagon Bolts / Set Screws	Stud Bolts	Hexagon Nuts	Socket Cap screws
DIN 931	BS4882	DIN 934	DIN 912
DIN 933	DIN 976	BS 1768	DIN 6912
BS 1768		BS 1769	DIN 7984
UNI 5731		BS 1083	ANSI B18.3
UNI 5739		BS 3692	ISO 4762
ISO 4014		ISO 4032	UNI 5931
ISO 4017		ISO 4033	BS 2470
BS 1769		ANSI B18.2.2	BS 4168
BS 3692
ANSI B18.2.1

Socket & Slotted Set Screws	Socket & Slotted Countersunk Screws	Studs	Washers
DIN 913	DIN 963	DIN 938	DIN 125
DIN 914	DIN 7991	DIN 939	DIN 9021
DIN 915	BS 4168	DIN 2510	BS 4320
DIN 916	BS 1981	BS 4439	BS 3410
DIN 551	BS 483	BS 2693
DIN 553	BS 2470		Spring Washers
DIN 438			DIN 127
BS 4168			BS 4464
			BS 1802
