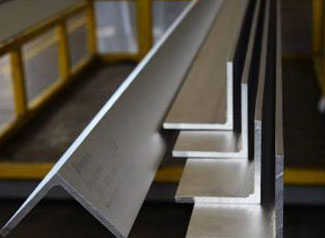

Stainless Steel Angle manufacturer in India
SS 304 Equal Angle Weight Chart, 316 Stainless Steel Equal Angle
Navstar Steel is a Stainless Steel Angle manufacturer that produces different types of angles in different grades of stainless steels. There are different types of angles. The angles are L shaped and are mostly 90 degrees. As a leading SS Angle Manufacturer we manufacture the angles in different specific angles and different L forms as well.

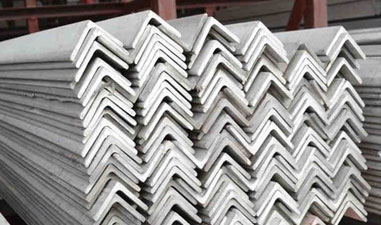

Stainless Steel Angle

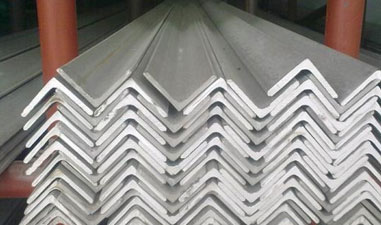

Stainless 304 Equal Angle

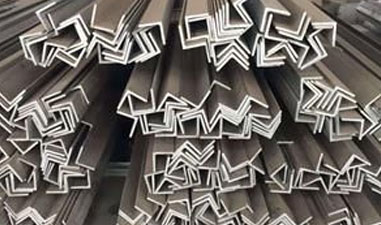

316 Stainless Steel Equal Angle
Check Stainless Steel 304 Unequal Angle Sizes, 316 Stainless Steel Unequal Angle Price List for Mumbai
The SS 304 Equal Angle Weight Chart gives you an idea of the weights of different material grade made angles. The equal angle has both sides of the L in equal lengths. There are unequal angles where one side of angle is wider than the other side. The 316 Stainless Steel Equal Angle is second most used next to the 304 angles. The 304 angles cannot be used in brackish and sea water applications due to the chloride ion corrosion.
Table of Contents
- Specification Chart of SS 304 Equal Angle
- Dimensions of 316 Stainless Steel Equal Angle
- Chemical Element of SS 304 Unequal Angle
- Mechanical Properties of 316 Stainless Steel Unequal Angle
- Types Of Stainless Steel Unequal Angle
- Austenitic SS Equal Angle Equivalent Material
- Stainless Steel 90 Degree Angle Bracket Tolerance Chart
- Size Chart of Martensitic Stainless Steel L Angle
- HSN Code of SS Angle
- Polished Stainless Steel Angle Price
The 316 material can resist the chloride ion stress corrosion because of the 4% molybdenum in the content. There are different Stainless Steel 304 Unequal Angle Sizes depending on the application requirements. The angles are used to connect components together with a grip. There are angles with bolt holes for bolts or screws as well. The 316 Stainless Steel Unequal Angle is used in more corrosive applications than the 304 angles could be used. The Stainless Steel Unequal Angle is as common as the equal angle. They are used in brackets, trim, reinforcements and in other applications as well. Please contact us for more information on the angles and their prices.
Specification Chart of SS 304 Equal Angle
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
PED Approved Stainless Steel Unequal Angle Stockist, View Austenitic Stainless Steel Equal Angle Dimension
Dimensions of 316 Stainless Steel Equal Angle
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 304 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Chemical Element of SS 304 Unequal Angle
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| Stainless 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Stainless 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 |
| Stainless 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 |
| Stainless 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 - 18.00 | 16.00 - 18.00 | 10.00 - 14.00 |
Mechanical Properties of 316 Stainless Steel Unequal Angle
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Types Of Stainless Steel Unequal Angle
SS Angles, Size: 20 to 250 mm
25 mm to 50 mm L Shape SS Angles
202 SS Angles Size: 3-10 M
SS 304 Structural Angles 2mm up to 20mm
L Shape 316 SS Angles, Size: 25x3 To 100x8 Mm
Ss Angles, Size: 20 X 20 X 3 Mm
316 316L HL ss angles
ss angles 304 41x41mm
50x50x5mm SS304 angles
50x50x5mm SS304 angles rod
50x50x5 SS Angles
angles bar sizes and thickness 1.5 x 1.5 steel
Austenitic SS Equal Angle Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | - | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We are high quality SS 304 Angle Bar, Stainless Steel Angle Manufacturer In India
Stainless Steel 90 Degree Angle Bracket Tolerance Chart
Leg Length = +/- 1/8"
Right Angle = +/- 2 Degrees
Straightness or Camber = 1/8" in 5 feet
Size Chart of Martensitic Stainless Steel L Angle
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20' Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
largest supplier of small-quantity Stainless Steel 90 Degree Angles Bracket, Martensitic SS L Angle in India, Check SS Angle Hsn Code
HSN Code of SS Angle
| Hs Code | Description |
|---|---|
| 7222 | Other Bars And Rods Of SS; Angles, Shapes And Sections Of SS |
| 72224020 | Of Below 80 Mm |
| 72222012 | Nickel Chromium Austenitic Type |
| 72223099 | Other |
| 7301 | Sheet Piling Of Iron , Whether Or Not Drilled, Punched Or Made From Assembled Elements; Welded Angles, Shapes A |
| 73012090 | Other |
| 7326 | Other Articles Of Iron Or Steels |
| 73269060 | Manufactures Of SS |
Held wide stock of Polished Stainless Steel Angle, Brushed Stainless Steel Angle Trim price in india, Check Stainless Steel Angle Material Specification
Polished Stainless Steel Angles Price
| Stainless Steel Angles Price List | SS 304 Unequal Angles Per Unit (INR) |
|---|---|
| 50x50x5mm SS304 angles Price List | $1,000.00-$3,000.00/ Ton |
| 201 304 316 SS angle bar | $500.00-$700.00/ Ton |
| SS angles bar price | $1,000.00-$2,500.00/ Ton |
| SS Angles Bar 6m Price | $1,000.00-$3,000.00/ Ton |
