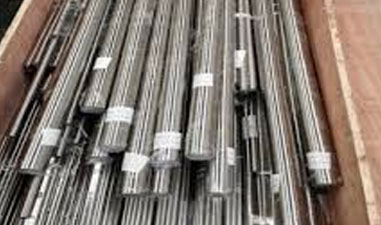

Cobalt Round Bar

Check Alloy Stellite 6B Rod, Chrome Moly 1537 Flat Bar Dimension

Cobalt Round Bar is used in super alloys and in making magnets. The cobalt alloys are used because they are ferromagnetic in nature. The material can maintain its strength even at elevated temperatures. Navstar Steel is a leading manufacturer of the Alloy Stellite 6B Rod and other types in various dimensions.

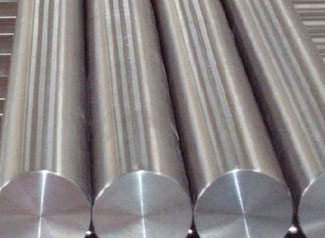

Cobalt Round Bar

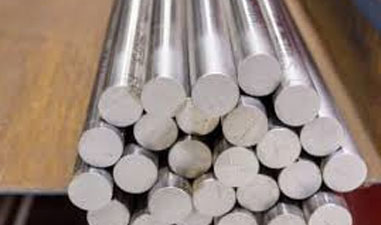

Alloy Stellite 6B Rod

Chrome Moly 1537 Flat Bar

View ASTM B473 Cobalt Bar Price, Cobalt Alloy UNS R30188 Bright Bar, Check Hot Rolled Cobalt Alloy Round Bars Properties

The material has high wear and tear resistance as well. The bars range from 0.201 inches to 4 inches in diameter. There are also Chrome Moly 1537 Flat Bar types used in various industries. The material can perform at high temperatures exceeding 1000 degrees Celsius and the chemical composition can have chromium, tungsten, nickel, iron, manganese, silicon, carbon, phosphorus and sulfur in the composition.

Table of Contents

• Schedule Chart of Alloy Stellite 6B Rod
• Chrome Moly 1537 Flat Bar Specification Format
• Chemical Properties of ASTM B473 Cobalt Bar Price
• Mechanical Properties of Cobalt Alloy UNS R30188 Bright Bar
• Hot Rolled Cobalt Alloy Round Bars Physical Composition
• List Of Cobalt Chrome Round Bar Types
• Equivalent Of M42 Cobalt Round Bar
• Cobalt Alloy Round Bars Size In Inch
• Alloy 6B Cobalt Cold Finished Bars Price per kg

The ASTM B473 Cobalt Bar Price is higher than that of the lower alloy components. The material has melting range of 1300 degrees Celsius to 1330 degrees Celsius. It also has high thermal conductivity. There are different types of finishes such as the Cobalt Alloy UNS R30188 Bright Bar and the black bars. The tensile strength of the material is high with minimum 862MPa and 310MPa minimum yield strength. The rupture strength decreases with the operating temperatures and the material can operate at above 982 degrees Celsius as well. Please contact us for more information on the Hot Rolled Cobalt Alloy Round Bars and the pricing.

Schedule Chart of Alloy Stellite 6B Rod

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

Specifications Of Cobalt Chrome Round Bar, M42 Cobalt Round Bar Manufacturers, Check the Market price before you buy Cobalt Alloy Round Bars

Chrome Moly 1537 Flat Bar Specification Format

Dimension as per european standards	EN, DIN, JIS, ASTM, BS, ASME, AISI
Grade Chart	R30006 Cobalt 6B Round Bars
Surface Finish	Bright Polished, Black, NO.4 Finish, Rough Turned, BA Finish, Matt Finish
Form	Rectangle, Billet, Ingot, Round, Square, Hex, Forging Etc.
Surface	Cold Drawn, Hot Rolled Pickled and Sand Blasting Finished, Polished, Bright, Hairline
Condition	Cold Drawnd Pulished & Centreless Ground & Polished.
Our Cobalt Round Bars conforms to NACE MR0175/ISO 15156

Chemical Properties of ASTM B473 Cobalt Bar Price

Grade	S	Si	Ni	C	Mn	P	Cr	Fe	W	Mo
Cobalt 6B Round Bar	-	2.0 max	3.0 max	.90 - 1.40	2.0 max	-	28.0 - 32.0	3.0 max	3.50 -5.50	1.50 max

Mechanical Properties of Cobalt Alloy UNS R30188 Bright Bar

CONDITION	TENSILE STRENGTH	YEILD STRENGTH	ELOGNATION
ANNEALED	80 (551)	35 (241)	30

Hot Rolled Cobalt Alloy Round Bars Physical Composition

DENSITY (G/CM 3)	8.08
DENSITY (LB/IN 3)	0.292
MELTING POINT (°C)	1425
MELTING POINT (°F)	2600

List Of Cobalt Chrome Round Bar Types

Carbide Rod Tungsten Carbide Round Boring Bar K05 K10k20k30k40 Carbide Rods

3 Meter Carbide Round Bar

Stainless Steel Carbide Round Bar

Cobalt 6B Rods, Size: 4 Inch

4Mm Carbide Rod

k10 Tungsten carbide rod,carbide drill blanks

Equivalent Of M42 Cobalt Round Bar

STANDARD	WERKSTOFF NR.	UNS
Alloy 6B	-	R30006

Check Cobalt Chrome Bar Stock, Cobalt Alloy Welding Rod, View Alloy 6B Cobalt Cold Finished Bar sizes

Cobalt Alloy Round Bars Size In Inch

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Ground	10.00 – 75.00	5/6" – 2.50"	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50" – 6.00"	h11, h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00"	h9-h10-h11
Cold Drawn and Polish	3.00 – 75.00	1/8" – 3.00"	h8-h9-h10-h11

Huge Inventory of Cobalt 6B Flat Bar, Alloy UNS R30188 Bright Bars in India, Check AMS 5894 6B Forged Round Bars Price List

Alloy 6B Cobalt Cold Finished Bars Price per kg

Price of ASTM B473 Cobalt Hex Bar Price	Hot Rolled Alloy 6B ound Bar Price
alloy stellite 6 round bar	$2,170.00/ Ton
UNS R30188 based alloy round bar	$0.05-$0.20/ Piece
AMS 5894 alloy 105 round bar	$70.00-$95.00/ Kilogram
