Stainless Steel 321 Flanges
Huge Inventory of SS 321 Blind Flange, view Stainless Steel F321 Forged Flange Dimension
Stainless Steel 321 Flanges are made up of a chromium nickel alloy that is stabilized with titanium. The material comprises of 17% chromium, 9% nickel, carbon, silicon, manganese, phosphorus, sulfur, nitrogen, titanium and iron in the composition.
Stainless Steel 321 Flanges

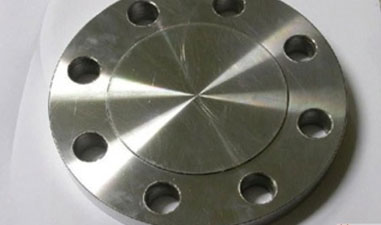

SS 321 Blind Flange

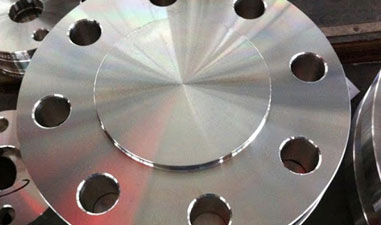

Stainless Steel F321 Forged Flange
SS 321 Plate Flange available for order, Buy ANSI B16.5 SS 321 Slip On Flanges, SS GOST 08Х18Н10 Socket Weld Flanges at lowest possible price
Navstar Steel is a leading manufacturer and supplier of the Stainless Steel 321 Flanges in different scales, shapes and standards. The material is strong with 30ksi yield strength and 75ksi minimum tensile strength. The material is hard with the Brinell hardness score of 217. The dimensions of the flanges range with different standards. There are ANSI, B, ASA, and APA standards and the nominal bore sizes range from ½ inches to 48 inches. The SS 321 Blind Flange is one type of special flange that is used to close a pipe.
Table of Contents
- Material Specification Chart of SS 321 Blind Flange
- Stainless Steel F321 Forged Flange Sizes In Mm
- Composition Chart of SS 321 Plate Flange
- SS 321 Slip On Flanges Mechanical Properties Chart
- Various Types Of SS UNS S32100 Socket Weld Flanges
- SS Grade F321 WNRF Flanges Equivalent Material Grade
- Thickness Chart Of SS UNS S32100 Pipe Flanges
- ASTM A182 SS F321 Industrial Flanges Dimensions Standard
- ANSI B16.5 SS F321 Screwed Flanges Prices
- SS DIN 1.4541 Spectacle Blind Flanges Pressure Rating Table
The blind flanges can come in different modifications as well. The material has high pressure capacities ranging from 150 through 2500 classes. The Stainless Steel F321 Forged Flange is forged in production and is used in high temperature services. The material has higher corrosion resistance than the 304, 316 and 310 grades of steel. The SS UNS S32100 Pipe Flanges are used in petrochemical, food processing, sea water, marine and other structural applications as well. We supply the flanges in various scales and types. Please contact us for more information on the different types of flanges such as the ANSI B16.5 SS 321 Slip On Flanges and the pricing information.
Material Specification Chart of SS 321 Blind Flange
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards |
ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard Flange | ANSI, ASME, BS, DIN, EN etc. |
SS Grade F321 WNRF Flanges, #150 ANSI SS UNS S32100 Pipe Flanges, Check ANSI B16.5 SS F321 Screwed Flanges Pressure Rating
Stainless Steel F321 Forged Flange Sizes In Mm
| Nominal Pipe Size | Outside Diameter of Flange | Thickness of Flange | Diameter of Raised Face | Diameter of Hub at Base | Length Thru Hub | Diameter or Bore | Diameter of Hub at Bevel | Radius of Fillet | Depth of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
Composition Chart of SS 321 Plate Flange
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
SS 321 Slip On Flanges Mechanical Properties Chart
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Various Types Of SS UNS S32100 Socket Weld Flanges
astm a182 300# f321 stainless steel forged ff plate flat flange
stainless steel ss 321 pipe flange
ASME B16.47 A182 F321 stainless steel backing ring flange
321 Forged Stainless Steel Flange
ANSI B16.5 Standard Stainless Steel 321 Forged Pipe Flanges From Class 150 to 2500
Threaded Stainless Steel Flange 321
aisi 321 RL RF Forged Stainless Steel Plate Flanges
Flanges Stainless Steel ANSI 321
Stainless Steel 1.4541 Flange
JIS SUS 321 Reducing Weld Neck Flange
321 Stainless steel flange, socket weld 150# 3000# 6000# slip on/weld neck/plate flange/blind flange
321 ss Reducing Weld Neck Flange
SS Grade F321 WNRF Flanges Equivalent Material Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
Thickness Chart Of SS UNS S32100 Pipe Flanges
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
OD 2 1/2'' Class 150 SS DIN 1.4541 Spectacle Blind Flanges, SS UNS S32100 Ring Type Joint Flanges Weight chart, 321 stainless steel Flanges.
ASTM A182 SS F321 Industrial Flanges Dimensions Standar
Dimensions: ANSI/ASME B16.5, B16.28, MSS-SP-43.
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Cheap Price Wholesale 321 Stainless Steel Weld Neck Flange, Stainless steel 321 Lap Joint Flange, Din pn16 Stainless Steel DIN 1.4878 Threaded Flanges
ANSI B16.5 SS F321 Screwed Flanges Prices
| ASTM A182 Grade F321 Pipe Flange Price Per Piece in India | ASTM A182 Gr F321 Flange Price in INR | ASTM A182 Gr F321 Flange Price in UAE Dirham |
| Stainless Steel ASTM A182 F321 Blind Flanges Price List | Rs. 1272.15 | UAE Dirham 66.11 |
| 321 Stainless Steel Flanges Prices | Rs. 1766.88 | UAE Dirham 91.82 |
| ASTM A182 Gr F321 Flanges Price in India | Rs. 1554.85 | UAE Dirham 80.80 |
| ASTM A182 Gr F321H Flanges Cost in Mumbai | Rs. 989.45 | UAE Dirham 51.42 |
| Cost of ASTM A182 321 SS Flanges in Mumbai | Rs. 1342.83 | UAE Dirham 69.78 |
Huge Stock of 321 Stainless Steel Flanges
| ASTM A182 Grade F321 Pipe Flange | ASTM A182 F321 Flange |
| ASTM A182 Gr F321 Plate Flange | Stainless Steel F321H Slip On Flanges |
| SA182 F321 Screwed Flanges | ASTM A182 Grade F321 Lap Joint Flanges |
| A182 F321 Expander Flanges | ASTM A182 321 Stainless Steel High Hub Blind Flanges |
| ASTM A182 Grade F321 Weld Neck Flanges A / B | Stainless Steel ASTM A182 F321 Forged Flanges |
| ASTM A182 F321 Forging Facing Flanges | Stainless Steel ASTM A182 F321 BLRF Flange |
| SA182 F321 SORF Flange | ASTM A182 F321 Stainless Steel RTJ Flange |
| Stainless Steel 321H WNRF Flange | ASTM A182 Gr F321 SWRF Flange |
| ASTM A182 F321 Plate Flange | Stainless Steel ASTM A182 F321 Slip On Flanges |
| SS F321H Long Weld Neck Flanges | Stainless Steel ASTM A182 F321 Spectacle Blind Flanges |
| SS 321H Expander Flange | ASTM A182 Gr F321H Ring Type Joint Flange |
| ASTM A182 F321 Tongue & Groove Flanges | SA182 F321 Reducing Flanges |
| Stainless Steel 321H Orifice Flanges | ASTM A182 Gr F321H Flat Flanges |
SS DIN 1.4541 Spectacle Blind Flanges Pressure Rating Table
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
