Hastelloy C276 Flanges
DN15-1200 3000lbs Forged Alloy C276 Forged Flange, UNS N10276 SORF Flange Manufacturer
Hastelloy C276 Flanges are made up of the nickel chromium molybdenum alloy that is called hastelloy. The composition includes 50.99% nickel, 14.5% chromium, 15% molybdenum and carbon, manganese, silicon, sulfur, cobalt, iron and phosphorus in it. The Hastelloy C276 Flanges have high melting point of 1370 degrees Celsius. This high melting point allows for higher operating temperatures of the flanges. The material also has 790MPa minimum tensile strength and 355MPa minimum yield strength.
Hastelloy C276 Flanges

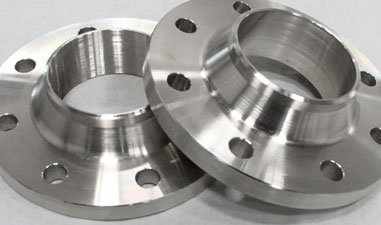

Alloy C276 Forged Flange
UNS N10276 SORF Flange
CNC machining ASTM B564 Hastelloy C276 Pipe Flanges, Hastelloy Alloy C276 Blind Flanges Price in India.
The Alloy C276 Forged Flange is made through a forging process which makes the flanges stronger. These are made from a single piece of raw material to remain in shape. There are different sizes, standards and specifications for the flanges such as the UNS N10276 SORF Flange. The flanges can be of ASTM B564 specification and different standards according to the ANSI, ASME, EN or DIN standards. There are different sizes ranging from ½ inches to 60 inches in this grade of material.
Table of Contents
- Specification List of Alloy C276 Forged Flange
- Size Schedule Chart of UNS N10276 SORF Flange
- Hastelloy C276 Pipe Flanges Chemical Composition
- Alloy C276 Blind Flanges Mechanical Strength Table
- Most Selling Types Of Alloy UNS N10276 Nippolet Flanges
- Equivalent Material Grade Of Alloy C276 Plate flange
- Hastelloy C276 Lap Joint Flange Pressure Chart
- Weight Of Hastelloy C276 ASME SB564 Screwed Flanges
- Hastelloy C276 UNS N10276 Nippo Flanges Dimension
- Price List of ASTM B564 Hastelloy C276 Weld Neck Flange
The ASTM B564 Hastelloy C276 Pipe Flanges can also come in different pressure classes. The pressure classes range from 150 through 2500 and PN6 through PN64. There are different application types such as offshore oil drilling, power generation, petrochemicals, gas processing, specialty chemicals and others which use these flanges. There are special flanges like the Hastelloy Alloy C276 Blind Flanges which are used to close a pipeline either temporarily or permanently. The type of flange and the application requirements vary. The flanges are also used in pharmaceuticals, petrochemicals, sea water equipment, heat exchangers and in condensers. The ASME SB564 Alloy C276 Plate flange is another type of flange used in these industries. Please contact us for more information on these flanges and their prices.
Specification List of Alloy C276 Forged Flange
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique | Forged, Heat treated and machined |
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
ASME SB564 Alloy C276 Plate flange Dimension, #150 ANSI Hastelloy C276 Lap Joint Flange, Hastelloy C276 ASME SB564 Screwed Flanges India.
Size Schedule Chart of UNS N10276 SORF Flange
| Nickel C276 Flange | 1/2″ (15 NB) to 48″ (1200NB) |
| ASME SB564 Alloy C276 Slip on Flange | 1/2″ NB – 12″ NB |
| ASTM B564 UNS N10276 Blind Flange | 1/2″ NB – 24″ NB |
Hastelloy C276 Pipe Flanges Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 ? 16.50 | 4.00 ? 7.00 | 15.00 ? 17.00 | 0.04 max |
Alloy C276 Blind Flanges Mechanical Strength Table
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm3 | 1370 ?C (2500 ?F) | Psi ? 1,15,000 , MPa ? 790 | Psi ? 52,000 , MPa ? 355 | 40 % |
Most Selling Types Of Alloy UNS N10276 Nippolet Flanges
forged Hastelloy C276 alloy flange
hastelloy g flange SGS Hastelloy C276 flange flat face flange
ansi b16.5 1500lb c276 N10276 hastelloy flange
UNS N10276 Hastelloy C276 Blind Flange DIN2527 PN6-PN100 DN10-DN1000
hastelloy c276 din standard plate flange
hastelloy c276 weld neck flat face flanges
Hastelloy flanges hastelloy C276 Flange
Hastelloy c276 UNS N10276 welding neck WN flange
hastelloy c276 weld overlay clad flange
UNS N10276 C276 Flange 1 1/2" Class 600 SO RF Forged Flange Hastelloy Flange
nickel alloy C276 hastelloy flange
Hastelloy C276 Socket Welding SW Flange
Equivalent Material Grade Of Alloy C276 Plate flange
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ??65??? | NiMo16Cr15W | ??760 |
Hastelloy C276 Lap Joint Flange Pressure Chart
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Weight Of Hastelloy C276 ASME SB564 Screwed Flanges
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
ASTM B564 Hastelloy C276 Weld Neck Flange, ANSI / ASME B16.5 UNS N10276 Socket Weld Flanges, Check ASME SB564 Ring Type Joint Flanges Pressure Rating
Hastelloy C276 UNS N10276 Nippo Flanges Dimension
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
C276 Hastelloy Slip On Flanges, API / DIN / JIS / GB UNS N10276 Orifice Flange, DN15~DN150 Hastelloy C276 Long Weld Neck Flange, Hastelloy DIN NR. 2.4819 Spectacle Blind Flanges weight Chart
Price List of ASTM B564 Hastelloy C276 Weld Neck Flange
| Hastelloy C276 Flanges Price List | Alloy C276 Forged Flange Price in India | UNS N10276 SORF Flange Prices |
| Hastelloy C276 Flange Prices | US $1.8-159 / Piece | UAE Dirham 0.087 - 7.73 |
| Alloy C276 Pipe Flange Price Per kg | US $1500 / Ton | UAE Dirham 72.90 |
| Alloy C276 Blind Flange Price | US $1-500 / Piece | UAE Dirham 0.049 - 24.30 |
| Price List of ASTM B564 Orifice Flange | US $999-1499 / Piece | UAE Dirham 48.55 - 72.85 |
Available Inventory Of Hastelloy C276 Flanges
| Hastelloy C276 Weld Neck Flanges | ASME SB564 Alloy C276 Lap Joint Flanges |
| C276 Hastelloy Long Weld Neck Flanges | Alloy C276 Spectacle Blind Flanges |
| Nickel C276 Spades & Ring Spacers | Hastelloy Alloy C276 Nipoflange |
| ASTM B564 UNS N10276 5D Weldoflange | Hastelloy C276 Flange Outlet |
| Hastelloy DIN 2.4819 Flange | Hastelloy Alloy C276 Blind Flange |
| Hastelloy DIN 2.4819 Forged Flanges | C276 Hastelloy Plate Flange |
| Hastelloy DIN 2.4819 Flanges | C276 Hastelloy BS 10 Flanges |
| Nickel C276 BS 4504 Flanges | ASTM B564 UNS N10276 EN 1092-1 Flanges |
| Hastelloy C276 SORF Flange | Alloy C276 BLRF Flange |
| Hastelloy Alloy C276 WNRF Flange | Hastelloy DIN 2.4819 Series a Lap Joint Ring Flange |
| Alloy C276 Class 150 LBS Flange | ASME SB564 Alloy C276 PN10 Forged Flanges |
