ASTM A694 Flange

ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India

ASTM A694 Flange comes in different grades such as F42, F52, F60, F65 and F70. The difference is in the chemical composition. The ASME SA694 High Yield CS F52 Slip On Flange has carbon, silicon, manganese, phosphorus, sulfur, molybdenum, nickel, chromium, copper, vanadium and niobium in the composition.

ASTM A694 Flange

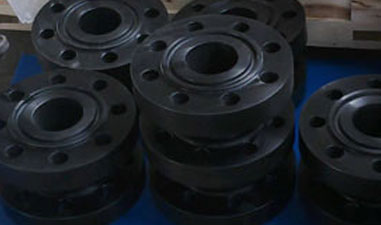

ASME SA694 High Yield CS F52 Slip On Flange

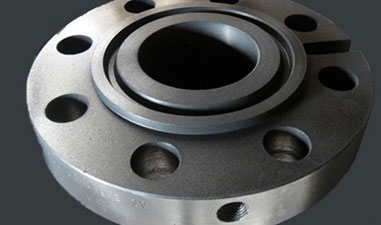

ASTM A694 F65 Blind Flange

ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India

There are different types of flanges and Navstar Steel is a leading supplier of all types of flanges in this specification. The ASTM A694 F65 Blind Flange is used to terminate a pipe connection. The flanges, fittings, valves and other components in the A694 specification are meant for high pressure transmission service. So the Carbon Steel ASTM A694 F70 Flange can be seen in the petrochemical, oil and gas and in nuclear power industrial applications. The different types of the flanges are used for different connection types.

Table of Contents

• ASME SA694 CS F52 Slip On Flange Specification Schedule
• ASTM A694 F65 Blind Flange Composition Standard
• Carbon Steel ASTM A694 F70 Flange Mechanical Characteristics
• Common Types Of CS ASTM A694 F52 Slip On Flange
• ANSI B16.5 F60 Weld Neck Flanges Weight Chart
• ASTM A694 Flange Pressure
• Price list of High Yield CS A694 F42 Plate Flanges

The CS ASTM A694 F52 Slip On Flange is made up of the F52 grade of carbon steel and the flange allows the pipes to slip on. This allows for precise location selection and fitting for the pipes. This flange is mostly used with seamless pipes. There are other types such as the ANSI B16.5 F60 Weld Neck Flanges which range in size from ½ inches to 48 inches in nominal bore sizes and has a welded neck onto it. The welded neck provides extra attachment surface and grip for the pipes. Please contact us for various ASTM A694 Flange Dimensions, types, products and prices.

ASME SA694 CS F52 Slip On Flange Specification Schedule

Specifications	ASTM A694 / ASME SA694
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI, ASME, BS, DIN, EN etc.
Grades	F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60
Size	1/2″ to 48″
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Check High Yield CS A694 F42 Plate Flanges Price List, ASME SA 694 F65 Flange, view properties of ASTM A694 F65 Threaded Flanges

ASTM A694 F65 Blind Flange Composition Standard

Element	F42 Content, %	F52 Content, %	F60 Content, %	F65 Content, %	F70 Content, %
Carbon (C)	0.13~0.20	0.16~0.22	0.17~0.23	0.17~0.23	0.06~0.10
Silicon (Si)	0.20~0.40	0.15~0.40	0.15~0.40	0.15~0.40	0.20~0.40
Manganese (Mn)	1.20~1.60	1.10~1.40	1.20~1.50	1.30~1.60	1.10~1.40
Phosphorous (P)	≤ 0.030	≤ 0.025	≤ 0.020	≤ 0.025	≤ 0.020
Sulfur (S)	≤ 0.020	≤ 0.012	≤ 0.012	≤ 0.015	≤ 0.010
Molybdenum (Mo)		0.20~0.35	0.45~0.60	0.45~0.65	1.20~1.70
Nickel (Ni)	≤ 0.30	≤ 0.50	0.40~1.00	≤ 0.30	0.20~0.40
Chromium (Cr)	≤ 0.30	≤ 0.30	≤ 0.25	≤ 0.30	≤ 0.30
Copper (Cu)	≤ 0.25	≤ 0.25	≤ 0.25	≤ 0.25	≤ 0.25
Vanadium (V)			≤ 0.050		0.02~0.06
Niobium (Nb)				0.025~0.050
Pcm					≤ 0.25
Carbon Equivalent	≤ 0.48	≤ 0.48	≤ 0.48	≤ 0.43	≤ 0.48

Carbon Steel ASTM A694 F70 Flange Mechanical Characteristics

ASTM A694 Grade	Yield Strength min.		Tensile Strength min.		Elongation min.
	MPa	ksi	MPa	ksi	%
A694 F42 FLANGES	290	42	415	65	20
A694 F46 FLANGES	315	46	415	60	20
A694 F48 FLANGES	330	48	425	62	20
A694 F50 FLANGES	345	50	440	64	20
A694 F52 FLANGES	360	52	455	66	20
A694 F56 FLANGES	385	56	470	68	20
A694 F60 FLANGES	415	60	515	75	20
A694 F65 FLANGES	450	65	530	77	20
A694 F70 FLANGES	485	70	565	82	18

Common Types Of CS ASTM A694 F52 Slip On Flange

forged carbon steel astm a694 f70 welding neck flange

astm a694 f65 carbon steel flange/a105 wn rtj flange

astm a694 f65 carbon steel flange 3/4 flange

astm a694 a150 carbon steel 2 inch pipe flange

Weld Neck Flange 8Inch CL1500 Ring Type Joint CS ASTM A694 F-60 Normalized Sch160

astm a694 gr f52 wn flange

astm a694 f65 flange

Forged ANSI B16.5 Welded Neck ASTM A694 Alloy steel Flange

ASTM A694 F65 forged flange

150#, SORF Flange 14.3mm, ASTM A694 Gr. F 60

3 Inch NPS FLANGE, 600# RF WN,ASTM-A694 F60

36 inch 600#, Anchor Flange 14.3mm, ASTM A694 Gr. F 60

Good Quality of ANSI B16.47 F65 CS A694 Forged Flange, ASTM A694 F52 Blind Raised Flanges Weight Chart, ASTM A694 F60 Flanges

ANSI B16.5 F60 Weld Neck Flanges Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129 Flange	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

ASTM A694 Flange Pressure

ASME/ANSI B 16.5	Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flanges
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck, Blind [Series A & B] Flanges
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Welding Neck, Slip on, Threaded Flanges
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange
TABLE	D, E, F, H
DIN Flange	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Cheap Price Wholesale High Yield ASTM A694 Reducing Flanges, ASTM A694 F70 High Yield BS 10 Socket Weld Flanges, view ASTM A694 Flanges Dimensions

Price list of High Yield CS A694 F42 Plate Flanges

ASTM A694 Flanges Price Per Piece in India	ASTM a694 Steel Flanges Price in INR
Astm a694 f70 Steel Flange	$1,500.00-$1,600.00/ Ton
ASTM A694 F65 forged flange	$29.00-$36.00/ Ton
astm a694 gr f52 wn flange	$6.00-$8.00/ Piece
astm a694 carbon steel flange/a105 wn rtj flange	$1.00-$500.00/ Piece
