ASTM A350 LF2 Flanges
check ASME SA 350 GR LF2 Weld Neck Flange Dimensions, Carbon Steel A350 LF2 Flanges
ASTM A350 LF2 Flanges come in welding or screw types. The flanges are screwed or welded together with pipes to make the connection between pipes. Navstar Steel is a leading manufacturer and supplier of the various ASME SA 350 GR LF2 Weld Neck Flange Dimensions and types. The material composition includes carbon, silicon, manganese, phosphorus, sulfur, molybdenum, copper, chromium, nickel, vanadium and niobium.

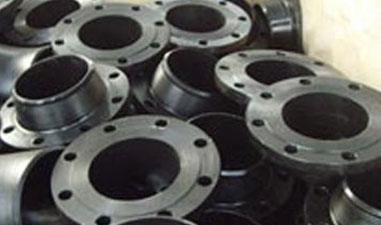

ASTM A350 LF2 Flanges
ASME SA 350 GR LF2 Weld Neck Flange
Carbon Steel A350 LF2 Flanges
Manufacturer of A350 LF2 Class 1 Flange, A350 LF2 Blind Flange, Carbon Steel A350 LF2 Slip On Flanges Price List
The carbon steel gets its mechanical properties and physical properties from this material composition. The Carbon Steel A350 LF2 Flanges have a minimum tensile strength of 485MPa and a minimum yield strength of 250MPa. The material is also hard with a 197 HB Brinell hardness score. There are class 1 and class 2 product level specifications in these flanges.
Table of Contents
- Specification List of ASME SA 350 GR LF2 Weld Neck Flange
- Weight Of Carbon Steel A350 LF2 Flanges
- Most Selling Types Of A350 LF2 Class 1 Flange
- A350 LF2 Blind Flange Thermal Properties
- Carbon Steel A350 LF2 Slip On Flanges Chemical Composition
- ASTM A350 Grade LF2 Class 2 Pipe Flange Mechanical Table
- Sa350 Gr Lf2 Forged Flange Pressure Chart
- A350 Lf2 Killed Carbon Steel Flanges Dimension
- Price List of A350 Lf2 Carbon Steel Flanges
The A350 LF2 Class 1 Flange is the most used with class 2 being used in specific applications. The flanges can also be heat treated for hardening. The heat treatment methods are normalizing and tempering. The A350 LF2 Blind Flange is a type of flange that is fitted on to the ends of pipes to close a pipe line completely. These could be bolted for easy removal at maintenance or be welded permanently. The Carbon Steel A350 LF2 Slip On Flanges are used with seamless pipes for easy installment on to the correct location as the flanges allow the pipes to slip on to the flange and move to the right position before welding or bolting. The Astm A350 Grade LF2 Class 2 Pipe Flange is also used in similar capacities. Please contact us for further information and pricing of the products.
Specification List of ASME SA 350 GR LF2 Weld Neck Flange
| Size | 1/2" TO 4" |
| Range | 15 NB TO 100 NB IN 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | ASTM / ASME A105/ A105N/ A694 F42/46/52/56/60/65/70 / A350 LF3/ A350 LF2 |
| Pressure Rating | 2000#, 3000#, 6000#, 9000# |
| Class | 150#, 300#, 400#, 600#, 900#, 1500# & 2500#. |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Form | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |
Huge Stock of Sa350 Gr Lf2 Forged Flange, A350 Lf2 Killed Carbon Steel Flanges, view A350 Lf2 Carbon Steel Flanges Weight Chart
Weight Of Carbon Steel A350 LF2 Flanges
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ASTM B16.5 | ASTM 150 | 89 | 60 | 4 | 13 | 16 |
| ASTM 300 | 95 | 67 | 4 | 13 | 16 | |
| ASTM 600 | 95 | 67 | 4 | 13 | 16 | |
| ASTM 900 | 121 | 83 | 4 | 19 | 22 | |
| ASTM 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Most Selling Types Of A350 LF2 Class 1 Flange
astm a182 a350 lf2 carbon steel van stone flanges
ASME / ASTM A350 LF2 Pipe Flanges
ASTM A350 LF2 CL1 blind flanges
Astm A350 lf2 Class150 Blind Flanges
SW RF Flanges 150# ASTM A350 LF2 Cl 1 ASME B16.5
ASTM A350 Grade LF2 Class 1 WN Flanges ASME B16.5
ASTM a350 gr lf2 carbon steel forged flanges
forged ASTM A350 GR. LF2 flanges
awwa c207 flange astm sa350 lf2 flanges
blind flange astm a350 lf2 cl1/cl2 flanges
class 300 RF A350 LF2 steel flanges
ASTM A350 LF2 CL1 forging carbon steel Flanges
A350 LF2 Blind Flange Thermal Properties
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@0-100°C/32-212°F) | 10.4 µm/m°C | 5.78 µin/in°F |
| Thermal conductivity | 21.6 W/mK | 150 BTU in/hr.ft².°F |
Check 18 inch 1500# A350 Lf2 Plate Flanges, Customized high quality Astm A350 Lf2 Class 1 And Class 2 Flange, ASME SA 350 Gr Lf2 Cl1 Flanges properties
Carbon Steel A350 LF2 Slip On Flanges Chemical Composition
| Grade | C% | Mn% | Si% | S% | P% | Cr% | Ni% |
| LF1 | 0.30 max | 0.6/1.35 | .15/.30 | .040 max | .035 max | 0.30 max | 0.40 max |
| Lf2 | 0.30 max | 0.6/1.35 | .15/.30 | .040 max | .035 max | 0.30 max | 0.40 max |
| LF3 | 0.20 max | 0.90 | .20/.35 | .040 max | .035 max | 0.30 max | 3.3/3.7 |
ASTM A350 Grade LF2 Class 2 Pipe Flange Mechanical Table
| PROPERTIES | Imperial |
|---|---|
| TS Min psi (Mpa) | 70,000 (485) |
| YS Min psi (Mpa) | 36,000 (250) |
| EL (2″ Min) | 22% |
| RA Min | 30% |
| Hardness, Bhn | Max 197 |
| -50ºF Charpy | Min Impact |
| Energy F t/Lb (J):- | |
| Set of 3 Specimen* | 15 (20) |
| For One Specimen | 12 (16) |
Sa350 Gr Lf2 Forged Flange Pressure Chart
| TEMP °C | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| -29 TO 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219 | 365 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23 | 30.7 | 46 | 69 | 115 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
| TEMP °C | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
A350 Lf2 Killed Carbon Steel Flanges Dimension
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
ASTM A350 LF2 Carbon Steel Socket Weld Forged Fittings
| Nom. Pipe Size | Min. Socket Dia. | Nom. Bore Dia. | A | B | C | D | E | F | G | H | J | K | L | M | N | O | P |
| PRESSURE CLASS 3000 | |||||||||||||||||
| 1/8 | 0.42 | 0.269 | 0.8 | 0.9 | 0.7 | 0.9 | 0.4 | 0.3 | 1.1 | 0.8 | 0.4 | 0.7 | |||||
| 1/4 | 0.555 | 0.364 | 0.8 | 0.9 | 0.7 | 0.9 | 0.4 | 0.3 | 1.1 | 0.9 | 1.62 | 0.7 | 1.25 | 0.3 | 0.4 | 0.9 | 0.8 |
| 3/8 | 0.69 | 0.493 | 0.9 | 1.1 | 0.7 | 1.1 | 0.5 | 0.3 | 1.1 | 1.1 | 1.88 | 0.8 | 1.44 | 0.4 | 0.4 | 1.3 | 0.8 |
| 1/2 | 0.855 | 0.622 | 1.1 | 1.3 | 0.8 | 1.3 | 0.6 | 0.4 | 1.3 | 1.3 | 2.06 | 0.8 | 1.62 | 0.4 | 0.4 | 1.3 | 0.8 |
| 3/4 | 1.065 | 0.824 | 1.3 | 1.5 | 1 | 1.5 | 0.8 | 0.5 | 1.5 | 1.5 | 2.53 | 1 | 2 | 0.4 | 0.6 | 1.5 | 1 |
| 1 | 1.33 | 1.049 | 1.4 | 1.8 | 1.1 | 1.8 | 0.9 | 0.6 | 1.6 | 1.9 | 2.94 | 1.1 | 2.38 | 0.5 | 0.6 | 1.8 | 1 |
| 1 1/4 | 1.675 | 1.38 | 1.7 | 2.3 | 1.2 | 2.3 | 1.1 | 0.7 | 1.6 | 2.3 | 3.44 | 1.3 | 2.81 | 0.6 | 0.6 | 2.3 | 1.1 |
| 1 1/2 | 1.915 | 1.61 | 1.9 | 2.5 | 1.3 | 2.5 | 1.3 | 0.8 | 1.6 | 2.5 | 3.88 | 1.4 | 3.19 | 0.7 | 0.6 | 2.5 | 1.1 |
| 2 | 2.406 | 2.067 | 2.3 | 3.1 | 1.7 | 3.1 | 1.5 | 1 | 2.1 | 3 | 4.69 | 1.6 | 3.88 | 0.8 | 0.7 | 3.1 | 1.3 |
| 2 1/2 | 2.906 | 2.469 | 2.9 | 3.6 | 2 | 4 | 1.6 | 1.1 | 2.1 | 3.6 | 6.88 | 2.1 | 5.94 | 1.2 | 0.7 | 3.6 | 1.3 |
| 3 | 3.535 | 3.068 | 3.3 | 4.3 | 2.4 | 4.6 | 2.3 | 1.3 | 2.1 | 4.4 | 8.5 | 2.5 | 7.25 | 1.3 | 0.7 | 5.1 | 1.4 |
| 4 | 4.545 | 4.026 | 4.2 | 5.8 | 3.1 | 5.8 | 2.6 | 1.6 | 2.4 | 5.5 | 13.6 | 4 | 12.1 | 2.5 | 0.8 | 6.8 | 1.6 |
| PRESSURE CLASS 6000 | |||||||||||||||||
| 3/8 | 0.69 | 0.344 | 1.1 | 1.3 | 0.9 | 1.3 | 0.6 | 0.4 | 1.1 | 1.3 | 2.12 | 0.9 | 1.5 | 0.3 | 0.4 | 1.3 | 0.9 |
| 1/2 | 0.855 | 0.464 | 1.3 | 1.5 | 1 | 1.5 | 0.8 | 0.5 | 1.3 | 1.5 | 2.56 | 1 | 2 | 0.4 | 0.4 | 1.5 | 0.9 |
| 3/4 | 1.065 | 0.612 | 1.5 | 1.8 | 1.1 | 1.8 | 0.9 | 0.6 | 1.5 | 1.8 | 3 | 1.1 | 2.38 | 0.5 | 0.6 | 1.8 | 1.1 |
| 1 | 1.33 | 0.815 | 1.7 | 2.3 | 1.3 | 2.3 | 1.1 | 0.7 | 1.6 | 2.3 | 3.5 | 1.3 | 2.81 | 0.6 | 0.6 | 2.3 | 1.2 |
| 1 1/4 | 1.675 | 1.16 | 2 | 2.5 | 1.3 | 2.5 | 1.3 | 0.8 | 1.6 | 2.5 | 3.94 | 1.4 | 3.19 | 0.7 | 0.6 | 2.5 | 1.2 |
| 1 1/2 | 1.915 | 1.338 | 2.3 | 3.1 | 1.7 | 3.1 | 1.5 | 1 | 1.6 | 3 | 4.75 | 1.7 | 3.88 | 0.8 | 0.6 | 3.1 | 1.3 |
| 2 | 2.406 | 1.687 | 2.5 | 3.4 | 1.8 | 3.4 | 1.6 | 1.1 | 2.1 | 3.6 | 6.88 | 2.1 | 6 | 1.3 | 0.7 | 3.6 | 1.4 |
| 2 1/2 | 2.906 | 2.125 | 3.2 | 4 | 2 | 4 | 2.3 | 1.3 | 2.1 | 4.3 | 8.5 | 2.5 | 7.5 | 1.5 | 0.7 | 5.1 | 1.4 |
| 3 | 3.535 | 2.624 | 3.7 | 4.8 | 2.4 | 4.6 | 2.5 | 1.4 | 2.1 | 5 | 8.5 | 2.5 | 7.25 | 1.3 | 0.7 | 5.1 | 1.6 |
| 4 | 4.545 | 3.438 | 4.5 | 6 | 3.1 | 5.8 | 2.6 | 1.6 | 2.4 | 6.3 | 13.6 | 4 | 12.1 | 2.5 | 0.8 | 6.8 | 1.8 |
Accept all Large Orders of A350 Lf2 Reducing Flanges, A350 Lf2 Plate Flanges View price of ASTM A350 Grade LF2 Class 2 Pipe Flange
Price List of A350 Lf2 Carbon Steel Flanges
| ASTM A350 LF2 Flanges Price Per Piece in India | ASME SA350 LF2 Flanges Price in INR |
| ASTM A350 LF2 CL1/CL2 Flanges | $200.00/ Piece |
| ASTM a350 lf2 steel flanges | $1.00-$500.00/ Piece |
| 150# RF SCH 80 ASME B16.5 ASTM A350 LF2 CL 1 LTCS WN Flanges | $5.00-$2,000.00/ Piece |
| a350 LF2 wn rtj/orifice flanges | $1,200.00/ Piece |
