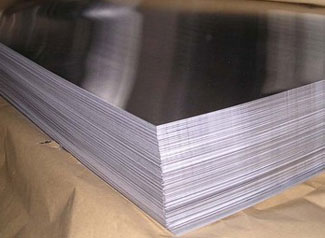

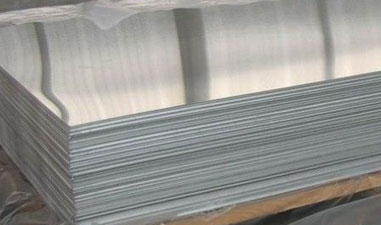

6082 Aluminium Sheet

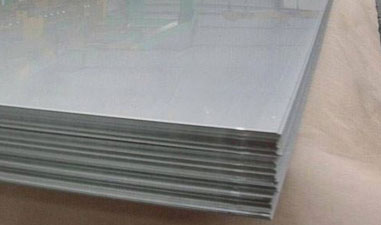

Aluminium Alloy 6082 T4 Plate, 6082 t4 Aluminium Sheet Manufacturer
6082 Aluminium Sheet is made up of a medium strength aluminum alloy. The material has good corrosion resistance and is used for structural elements. The plates are used mostly for their good machining capacities. Navstar Steel is a leading manufacturer and supplier of the Aluminium Alloy 6082 T4 Plate products in different types and dimensions.
6082 Aluminium Sheet
Aluminium Alloy 6082 T4 Plate
6082 t4 Aluminium Sheet
ASTM B209 Aluminium Alloy 6082 t6 Sheet, Check Prices of ASME SB209 Aluminium Strip 6082
The material has silicon, iron, copper, manganese, magnesium, zinc, titanium and chromium in the chemical composition. This composition provides the corrosion resistance and the high mechanical properties of the ASTM B209 Aluminium Alloy 6082 t6 Sheet. The sheets have 85MPa maximum yield strength and 150MPa maximum tensile strength. The material also has 40 HB Brinell hardness score. The different forms such as coils, foils, strips and 6082 t4 Aluminium Sheet products have 0.4mm to 6mm thickness with the lengths varying up to 10000mm.
Table of Contents
- Aluminium Alloy 6082 T4 Plate Material Specification
- Physical Properties of 6082 t4 Aluminium Sheet
- ASTM B209 Aluminium Alloy 6082 t6 Sheet Chemical Structure
- ASME SB209 Aluminium Strip 6082 Mechanical Table
- Basic Types Of Aluminium 6082 Plate
- Aluminium UNS A96082 Hot Rolled Plate Equivalent Grades
- Dimensions Chart of Aluminium 6082 Coils
- SME SB209 Aluminium 6082 Foils Price List in India
The applications are seen in the milk churns, trusses, cranes, ore skips, transport applications, and in high stress applications as well. There are ASME SB209 Aluminium Strip 6082 and plates with different tempers such as O, T4 and T6. The different tempers are good for different types of structural applications. The tempers along with the Aluminium 6082 Plate Thickness make them suitable for these applications and provide better forming, welding and machining abilities. These sheets are also highly solderable. The Aluminium Alloy UNS A96082 Hot Rolled Plate can come in perforated and extruded finishes. These different finishes provide advantages such as lightweight. Please contact us for more information on the products such as the Aluminium 6082 Coils and their pricing.
Aluminium Alloy 6082 T4 Plate Material Specification
| Grade | Aluminium 6082 / UNS A96082 |
|---|---|
| ASTM Specifications | ASTM B209 / ASME SB209 |
| Thickness Chart | 0.5mm TO 250mm |
| Form | Plates, Sheets, Slatting Coils, Coils, Foils, Plain Sheet, Shim Sheet, Strip, Rolls, Perforated Coils, Flats, Blank , Ring |
| Hardness | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Finish | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Size in Milimeter | 000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm etc |
| Length in MM | 1000mm TO 6000mm |
| Applications Industries | Gas Processing, Condensers, Sea Water Equipment, Power Generation, Pharmaceuticals, Specialty Chemicals, Pulp, Pharmaceutical Equipment, Chemical Equipment, Petrochemicals, Paper Off-Shore Oil Drilling Companies, Heat Exchangers, Industry |
Our stock list contains a wide variety of Aluminium 6082 Sheet Price. We also produce customized Aluminium 6082 T6 Plate Thickness at our factory.
Physical Properties of 6082 t4 Aluminium Sheet
| Physical Property | Value |
|---|---|
| Density | 2.70 g/cm³ |
| Melting Point | 555 °C |
| Thermal Expansion | 24 x10^-6 /K |
| Modulus of Elasticity | 70 GPa |
| Thermal Conductivity | 180 W/m.K |
| Electrical Resistivity | 0.038 x10^-6 Ω .m |
Spec: BS EN 485-2:2008
Sheet - 0.4mm to 6.00mm
| Mechanical Property | Value |
|---|---|
| Proof Stress | 260 Min MPa |
| Tensile Strength | 310 Min MPa |
| Hardness Brinell | 94 HB |
Aluminium 6082 Plate Thickness, Aluminium Alloy UNS A96082 Hot Rolled Plate, View properties of Aluminium 6082 Coils
ASTM B209 Aluminium Alloy 6082 t6 Sheet Chemical Structure
| Chemical Element | % Present |
|---|---|
| Manganese (Mn) | 0.40 - 1.00 |
| Iron (Fe) | 0.0 - 0.50 |
| Magnesium (Mg) | 0.60 - 1.20 |
| Silicon (Si) | 0.70 - 1.30 |
| Copper (Cu) | 0.0 - 0.10 |
| Zinc (Zn) | 0.0 - 0.20 |
| Titanium (Ti) | 0.0 - 0.10 |
| Chromium (Cr) | 0.0 - 0.25 |
| Other (Each) | 0.0 - 0.05 |
| Others (Total) | 0.0 - 0.15 |
| Aluminium (Al) | Balance |
ASME SB209 Aluminium Strip 6082 Mechanical Table
| Tensile Strength, MPa | Yield Strength 0.2%, MPa | Elongation % | Hardness HBW |
|---|---|---|---|
| 295 | 240 | 8 | 95 |
Basic Types Of Aluminium 6082 Plate
6082 T6 decorative aluminum sheet
1 Inch Aluminum Plate 6082
3mm 4mm 6082 Series Aluminum Sheet
6082 Aluminum alloy Sheet
40mm thickness 6082 t6 aluminum plate
50mm 60mm Thick 6082 Aluminum Plate
aluminum sheet 6082 6xxx aluminum plate
50mm thick 6082 t6 aluminum sheet
aluminum alloy 6082 plate
6082 T6 10mm aluminum plate
6082 T6 decorative aluminum sheet
3mm 4mm 6082 T6 Color Coated Aluminum Sheet
We are one of the leading and reputed 6082 Aluminium Sheet Manufacturers In India. Besides manufacturing the 6082 T6 Aluminium Sheet, we are well known for supplying and exporting the 6082 T4 Aluminium Sheet. 6082 Aluminum Plate Suppliers In India.
Aluminium UNS A96082 Hot Rolled Plate Equivalent Grades
| UNS | WNR | EN | DIN | ISO | BS (OLD) | USA |
|---|---|---|---|---|---|---|
| A96082 | 3.2315 | AW-6082 | AlMgSi1 | Al Si1MgMn | HE30 | AA6082 |
Check Global sales network For ASME SB209 Aluminium 6082 Foils, ASTM B209 Aluminum Alloy 6082 Cold Rolled Plates Dimension, 6082 Aluminium Shim Sheet in Mumbai
Dimensions Chart of Aluminium 6082 Coils
| Aluminum Sheet Surface finish Chart | Gauge (inch) | Width (max inch) |
|---|---|---|
| 2B – Cold rolled, pickled, heat treated, skin passed Sheet | 10–24 | 72* |
| 2D – Cold rolled, pickled plate, heat treated | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate/ sheet (not brushed) | 11–24 | 60 |
| Temper hot rolled plate Mexinox only | 13–29 | 48 |
Finding the best quality and reasonable ASTM B209 Aluminium A96082 HR Plate in India, Check ASME SB209 Aluminium 6082 Chequered Plate at best prices
SME SB209 Aluminium 6082 Foils Price List in India
| Aluminium 6082 Sheet Price List | 6082 t4 Aluminium Mesh Sheet Per Unit (INR) |
|---|---|
| 6082 Aluminium Roofing Sheet | $2,299.00/ Ton |
| Aluminum Roofing 6082 Sheet price | $2,650.00-$4,500.00/ Ton |
Navstar Steel is a Govt. approved certified Aluminium 6082 Plate manufacturers in India, We have our Aluminium 6082 Coil & Strips distributor and wholesaler in Malaysia, Indonesia, United Arab Emirates (UAE) & South Africa.
