Aluminium 3003 Sheet
ASTM B209 Alloy 3003 Plate, AMS 4008 Foil at reasonable price in Mumbai
Aluminium 3003 Sheet is made up of a medium strength aluminum alloy that has excellent corrosion resistance. These are structural alloys and are used mostly in structural applications. The specification of these sheets is the ASTM B209. Navstar Steel is a leading manufacturer and supplier of the ASTM B209 Alloy 3003 Plate products in various dimensions and types.
Aluminium 3003 Sheet

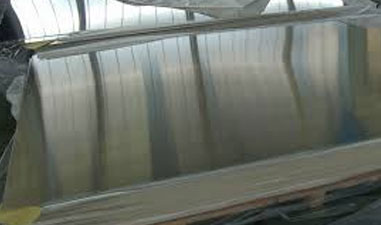

ASTM B209 Alloy 3003 Plate

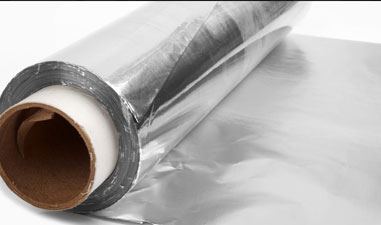

AMS 4008 Foil
Check the Market price before you buy ASME SB209 Aluminum 3003 Coil, We provide 3003 Aluminum Perforated Sheet Stock with instant delivery
The thickness of the sheets range from 0.2mm to 300mm, the width range from 500mm to 2500mm and the length ranges from 500mm to 10000mm. The AMS 4008 Foil is another type of the sheets which is used as a cladding material over other corrosive objects and is used in heat exchanging applications for the high thermal conductivity. The ASME SB209 Aluminum 3003 Coil is also used in heat exchanging applications such as boiler components, condensers and in heat exchangers because of the high thermal conductivity.
Table of Contents
- ASTM B209 Alloy 3003 Plate Specification Format
- List Of AMS 4008 Foil Types
- Equivalent Of ASME SB209 Aluminum 3003 Coil
- 3003 Aluminum Perforated Sheet Thermal Composition
- UNS A93003 Aluminum Hot Rolled Plate Size In Inch
- Chemical Properties of ASTM B209 Aluminum Alloy 3003 Strips
- Physical Properties of 3003 Aluminium Chequered Plate
- Aluminium 3003 Cold Rolled Plate Price per kg
The sheets can come in different types such as HR, CR sheet, plates, strips, coils and chequred plates as well. The 3003 Aluminum Perforated Sheet is another type that is used mainly to reduce the weight per volume. The material supports cutting, grinding, forming and polishing operations. The material composition has copper, iron, manganese, silicon, zinc and other elements in trace quantities as well. The chemical composition makes the UNS A93003 Aluminum Hot Rolled Plate to have higher mechanical properties. The minimum tensile strength is 130MPa and the minimum yield strength is 125MPa with Brinell hardness score of 35BHN. Please feel free to contact us for further information on the ASTM B209 Aluminum Alloy 3003 Strips, plates, sheets, foils and coils and the prices.
ASTM B209 Alloy 3003 Plate Specification Format
| ASTM Standards | ASTM B209 and ASME SB209 |
| Thickness in Milimeter | 0.2~300mm |
| Length in Milimeter | 500~10000mm |
| Width in Milimeter | 500~2500mm |
| Surface Finishes | Bright, hair line, polished, sand blast, brush, checkered, embossed |
| Type of Aluminium 2014 Plate & Sheet | Hot-Rolled Plate/ Cold-Rolled Sheet / Plates/ Chequered Plates/ Strips/ Coils |
| Coating of Aluminum Sheet | PVC Coated, Polyester, Color Coated, polyurethane, Fluorocarbon, epoxy coating |
List Of AMS 4008 Foil Types
3003 4mm 5mm 10mm 20mm Thickness Aluminium Plate sheet
3003 aluminum checkered sheet plate
10mm Aluminum 3003 Plate Sheet
diamond 3003 h14 aluminum sheet
0.3mm-1.5mm Aluminum Roofing Sheet 3003
3mm 4mm 3003 T6 Color Coated Aluminium Sheet
4x8 size 3003 Orange peel pattern plate aluminum sheet
10mm thick aluminium sheet Black Anodized Aluminum Sheet 3003 H14 Aluminum Sheet
1mm 2mm Thin 3003 Aluminum Plate
3003 6mm Thick Aluminium Sheet
40mm thick 3003 aluminium sheet
75mm 3003 h14 aluminum sheet
Equivalent Of ASME SB209 Aluminum 3003 Coil
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
|---|---|---|---|---|---|---|
| AW-AlCu4Mg1 | AU4G1 | 3.0517 | A93003 | AlCu4Mg | 3003 | AlCuMg2 |
| ASME SFA5.3 (E3003) | ASTM B234 | ASTM B345 | AWS A5.3 (E3003) | QQ A-200/1 |
| ASTM B209 | ASTM B241 | ASTM B404 | MIL A-52174 | QQ A-225/2 |
| ASTM B210 | ASTM B247 | ASTM B483 | MIL E-15597 (MIL-3003) | QQ A-250/2 |
| ASTM B211 | ASTM B313 | ASTM B491 | MIL P-25995 | QQ A-430 |
| ASTM B221 | ASTM B316 | ASTM B547 | MIL S-12875 | QQ WW-T-700/2 |
3003 Aluminum Perforated Sheet Thermal Composition
| Properties | Conditions | ||
|---|---|---|---|
| T (ºC) | Treatment | ||
| Thermal expansion co-efficient | 23.2 (10-6/ºC) | 20-100 | - |
| Thermal conductivity | 162 W/mK | 25 | H12 |
View Available sizes of UNS A93003 Aluminum Hot Rolled Plate, ASTM B209 Aluminum Alloy 3003 Strips, View 3003 Aluminium Chequered Plate Thickness
UNS A93003 Aluminum Hot Rolled Plate Size In Inch
| Description | Temper | Thickness | Width | Length | Specification |
|---|---|---|---|---|---|
| 3003H14 ALUM SHEET .0900 | H14 | 0.0900 | 60 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0900 | H14 | 0.0900 | 48 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .1250 | H14 | 0.1250 | 48 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .1250 | H14 | 0.1250 | 60 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .1250 | H14 | 0.1250 | 48 | 96 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0400 | H14 | 0.0400 | 48 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0800 | H14 | 0.0800 | 48 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0630 | H14 | 0.0630 | 48 | 144 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0630 | H14 | 0.0630 | 48 | 120 IN | ASTM B209 |
| 3003H14 ALUM SHEET .0500 | H14 | 0.0500 | 48 | 120 IN | ASTM B209 |
One of India's largest supplier of Aluminium 3003 Cold Rolled Plate, ASME SB209 Aluminium 3003 Shim Sheet, ASTM B209 Aluminum Alloy 3003 Mesh Sheet properties
Chemical Properties of ASTM B209 Aluminum Alloy 3003 Strips
| Al | Cu | Fe | Mn | Other Total | Si | Zn |
|---|---|---|---|---|---|---|
| Remainder | 0.05 to 0.20% | 0.7% | 1.0 to 1.5% | 0.15% | 0.6% | 0.10% |
Physical Properties of 3003 Aluminium Chequered Plate
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 130 MPa | 18855 psi |
| Yield strength | 125 MPa | 18130 psi |
| Shear strength | 83 MPa | 12039 psi |
| Fatigue strength | 55 MPa | 7977 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson's ratio | 0.33 | 0.33 |
| Elongation | 10% | 10% |
| Hardness | 35 | 35 |
Aluminium 3003 Cold Rolled Plate Price per kg
| Aluminium 3003 Sheet Price List | ASTM B209 Alloy 3003 Plate Per Unit (INR) |
|---|---|
| price aluminum checker plate sheet 3003 | $2,100.00-$2,500.00/ Ton |
| Aluminum Alloy 3003 H22 H24 Ribbed Aluminum Plate | $1.84-$3.94/ Kilogram |
| aluminum sheet price 3003 | $2,800.00-$3,000.00/ Kilogram |
| Mirror Finish 3003 Aluminum Sheet Plate | $2.00-$2.30/ Kilogram |
We Keep bulk stock of Aluminium 3003 Checker Plate, ASTM B209 Aluminium A93003 Flat Plate, Aluminium Werkstoff-Nr. 3.0517 Ring in Mumbai
Aluminium 3003 Plate Inventory
|
|
