Molybdenum Plate

Most Trusted And Reliable TZM Mo1 Sheet, TZM Mo2 Coils, ASTM B386 Mu0079 material

Molybdenum Plate is made up of commercially pure molybdenum content. The material comprises of more than 99.95% molybdenum. The density of the material is almost three times higher than most aluminum plates with 10.2 grams per centimeter cube. Navstar Steel is one of the leading Molybdenum plate suppliers.

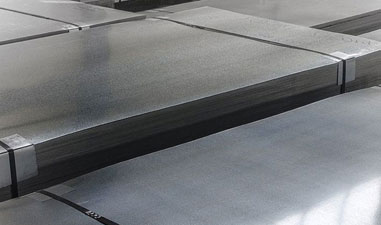

Molybdenum Plate

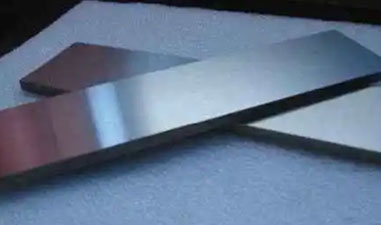

TZM Mo1 Sheet

ASTM B386 Mu0079 material

We are Leading ASME SB386 Molybdenum Foil, Check Molybdenum Sheet price in Mumbai, India

The material falls under the specification ASTM B386. The thickness of the plates and sheets ranges from 0.09 inches to 3 inches. The thickness variation is applied in varying applications. The length of the Molybdenum Sheet ranges from 42 inches to 114 inches depending on the width and the thickness of the sheets. The width ranges from 24 inches to 30 inches in most cases. The ASTM B386 Mu0079 material has lead, bismuth, tin, cadmium, iron, nickel, aluminum, silicon, magnesium, phosphorus, carbon, oxygen and nitrogen depending on the Molybdenum1, 2 and 3 classes of it.

Table of Contents

• TZM Mo1 Sheet Spec Chart
• TZM Mo2 Coils Thickness
• ASTM B386 Mu0079 material Chemical Composition Chart
• ASME SB386 Molybdenum Foil Mechanical Strength Table
• Most Common Types Of Molybdenum Sheet
• Sizes Of Molybdenum Alloy Steel Strip
• Molybdenum Alloy Plate Physical properties
• Polished Molybdenum Plate Price List

The TZM Mo1 Mo2 Molybdenum Sheets don’t have the lead, bismuth, tin and cadmium content in them. The melting point of the element molybdenum is 2623 degrees Celsius. This is one of the highest in the periodic table. This enables the ASME SB386 Molybdenum Foil and coils to be replaced for tungsten in many applications. Depending on the purity of the molybdenum material, the prices vary for the Molybdenum Alloy Steel Strip, plate, coil and foil types. Please contact us for the different grades of the molybdenum sheets and the prices.

TZM Mo1 Sheet Spec Chart

Specification	molydenium sheet/plates
Density	10.2g/cm3
Standard	ASTM B386, GB/T3876
Grade	Mo1
Material	99.95% min. Mo99.95% min. Mo
Melting Point	2610 Centigrade
Using temperature	1400 Centigrade max.
Size	Thick 0.025mm min. x W600mm max. x L3000mm max.
Processing	Cold rolled, Stress relief annealing, Hot rolled
Colour	Black or bright

Reliable Supplier Of Molybdenum Alloy Steel Strip, Molybdenum Alloy Plate, Check Polished Molybdenum Plate Weight Chart or Thickness

TZM Mo2 Coils Thickness

Thickness	Max. Width	Max. Length	Thickness Tolerance
0.090" ~ 0.200"	30"	114"	+/- 0.008"
0.200" ~ 0.250"	24"	84"	+/- 2%
0.250" ~ 0.500"	24"	42"	+/- 2%
>0.500"	24"	+/- 2%

ASTM B386 Mu0079 material Chemical Composition Chart

Brand		Mo-1	Mo-2	Mo-3
Mo(%)		99.95	99.95	99.95
Other Element Content(%) ≤	Pb	—	—	0.001
	Bi	—	—	0.001
	Sn	—	—	0.001
	Sd	—	—	0.001
	Cd	—	—	0.001
	Fe	0.005	0.006	0.010
	Ni	0.002	0.003	0.005
	Al	0.002	0.002	0.005
	Si	0.003	0.003	0.010
	Ca	0.002	0.002	0.005
	Mg	0.001	0.002	0.003
	P	0.001	0.001	0.002
	C	0.005	0.008	0.010
	O	0.003	0.005	0.050
	N	0.001	0.003	-

ASME SB386 Molybdenum Foil Mechanical Strength Table

Tensile Strength	KSI (MPa)-RT	150 (1034)
	KSI (MPa)-500°C	75 (517)
	KSI (MPa)-1000°C	25 (172)
Elongation	% in 1.0".	12
Typical Hardness	HV10	>220
Modules of Elasticity	GPa	320

Most Common Types Of Molybdenum Sheet

ASTM B386 tzm molybdenum alloy foil

aisi grade 11-pvq a387-22-2 chromium molybdenum plates

99.95% Pure Molybdenum Sheet

1mm-50mm Molybdenum Plates/ Sheet

BS 1501 620B Chrome Moly Steel Plates, Thickness: 5-50 mm

Astm 1/4 Chrome Moly Plates, Thickness: 10-350 mm

Stock an extensive range of Pure Mo1 Molybdenum Hot Rolled Plate, Cold Rolling Molybdenum Sheet sizes, Mo 99.95% Molybdenum Plate in India

Sizes Of Molybdenum Alloy Steel Strip

Format	Size Inches “	Size MM
Foil	0.001	0.025
Foil	0.002	0.050
Foil	0.003	0.080
Foil	0.004	0.100
Foil	0.005	0.127
Foil / Sheet	0.006	0.150
Foil / Sheet	0.007	0.178
Foil / Sheet	0.008	0.200
Foil / Sheet	0.010	0.250
Sheet	0.015	0.381
Sheet	0.020	0.500
Sheet	0.025	0.635
Sheet	0.030	0.762
Sheet	0.039	1.000
Sheet	0.040	1.016
Sheet	0.050	1.270
Sheet	0.059	1.500
Sheet	0.060	1.524
Sheet	0.079	2.000
Sheet	0.080	2.032
Sheet	0.090	2.286
Sheet	0.098	2.500
Sheet	0.100	2.540
Sheet	0.118	3.000
Sheet	0.125	3.175
Sheet	0.150	3.810
Sheet	0.157	4.000
Sheet / Plate	0.187	4.763
Plate	0.197	5.000
Plate	0.200	5.080
Plate	0.250	6.350
Plate	0.270	6.858
Plates	0.300	7.620
Plates	0.313	7.938
Plate	0.375	9.525
Plates	0.394	10.000
Plate	0.410	10.414
Plate	0.500	12.700
Plates	0.591	15.000
Plate	0.625	15.875
Plate	0.750	19.050
Plate	0.787	20.000
Plate	1.000	25.400
Plate	1.125	28.575
Plate	1.187	30.150
Plate	1.250	31.750
Plate	1.375	34.925
Plate	1.500	38.100
Plate	1.750	44.450
Plate	2.000	50.800
Plate	2.500	63.500
Plate	3.000	76.201

Molybdenum Alloy Plate Physical properties

Density	lb/in3	0.37
gm/cm3	10.20
Melting Point	°F	4784
	°C	2620
Thermal Conductivity @20°C	W/m-K	142
Specific Heat	Cal/gm/°C	0.061
Coefficient of Linear Thermal Expansion	10-6(°F)-1	2.70
	10-6(°C)-1	4.90
Electrical Resistivity	Micro-ohm-cm	5.34
Recrystallization Temp.	°C	1100

View Mo Round Plate Price List, Pure Molybdenum Disc, Check Properties of Astm B386 Molybdenum Mo-la Plate

Polished Molybdenum Plate Price List

Molybdenum Plates Price List	ASTM B386 Mu0079 material Per Unit (INR)
molybdenum copper alloy plates	$22.93-$25.24/ Piece
High pure Molybdenum sheet / plates	$50.00-$150.00/ Kilogram
cold rolling molybdenum sheet	$55.00-$69.00/ Kilogram
MoLa alloy sheet, TZM molybdenum alloy plates	$31.00-$56.00/ Kilogram

Ready Stock Available Of Pure Mo1 Molybdenum Hot Rolled Plate

Sheet Stock:
.003" x 12" x 36"	.020" x 12" x 36"	.060" x 12" x 36"
.005" x 12" x 36"	.025" x 12" x 36"	.070" x 12" x 36"
.010" x 12" x 36"	.030" x 12" x 36"	.090" x 12" x 36"
.012" x 12" x 36"	.040" x 12" x 36"	.100" x 12" x 36"
.015" x 12" x 36"	.050" x 12" x 36"	.125" x 12" x 36"
Plate Stock:
.187″ x 12″ x 36″	.500″ x 12″ x 36″	1″ x 12″ x 36″
.250″ x 12″ x 36″	.625″ x 12″ x 36″	1.25″ x 12″ x 36″
.375″ x 12″ x 36″	.750″ x 12″ x 36″
