Zirconium Wire

Check 0.5mm ZR5668 Wire, Zirconium Wire Mesh Supplier in India

Zirconium Wire looks like silver. The wires are most suiting for nuclear power industries because of the high melting point of 1855 degrees Celsius and small neutron adsorption cross section. The wires are used in springs, meshes and electrodes because of the high corrosion resistance, especially for acids.

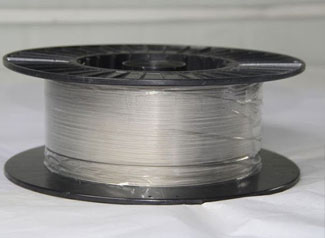

Zirconium Wire

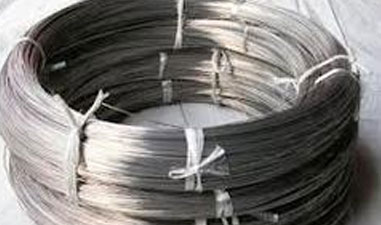

0.5mm ZR5668 Wire

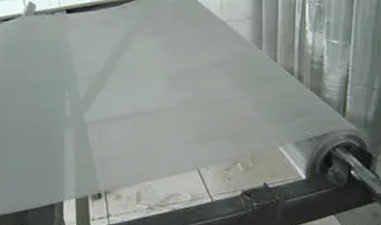

Zirconium Wire Mesh

Check Zirconium Welding Wire, ZR5668 Zirconium Filler Wire Sizes

The 0.5mm ZR5668 Wire and other dimensional wires are used in different industrial and commercial applications. Navstar Steel is a leading manufacturer and supplier of the wires in different forms and dimensions such as the Zirconium Wire Mesh. The material can come in different grades such as 702, 704 and 705. There are also zircalloy-2 and zircalloy-4 types. The material composition has tin, iron, chromium, nickel, hafnium and niobium in the composition. The Zirconium Welding Wire and other types of wires come in 0.5mm to 10mm diameters and varying lengths from 50mm to 2500mm and more.

Table of Contents

• 0.5mm ZR5668 Wire Material Specification
• Zirconium Wire Mesh Chemical Structure
• Zirconium Welding Wire Mechanical Properties Table
• Basic Types Of ZR5668 Zirconium Filler Wire
• ERZr2 Zr Copper Wire Size Chart In Mm
• UNS R60702 Zirconium tig Wire Physical Composition
• Zirconium Welding Rods Wire Price List in India

The ZR5668 Zirconium Filler Wire and the other types have good yield strength up to 379MPa and the tensile strength varies up to 552MPa. There are variations of the wires such as the ERZr2 Zirconium Copper Wire. They come under the specification B551 and different grades as mentioned. The density of the material is 6.4 grams per centimeter cube. Please contact us for more information on the various types of wires such as the r60702 Zirconium tig Wire and other forms and prices.

0.5mm ZR5668 Wire Material Specification

Weight in meter	≈1.31g/m
Quantity	1meter
Odor	Odorless
Physical Form	Wires, ≈1.31g/meter
Purity in Percent	99.2%
Chemical Material	Zr wires, 0.5milimeter (0.020 inch) dia., Annealed
Assay	(metals basis excluding Hf) Hf 4.5% max
Zirconium Material Chart	ERZr2, ERZr4, ERZr3, high purity zirconium
Size Chart	0.3-6.0milimeter diameter x L
Specification	ASTM B550, 550M-07, AWS A5.24

ERZr2 Zirconium Copper Wire, UNS R60702 Zirconium tig Wire, Zirconium Welding Rods Wires Manufacturer in India

Zirconium Wire Mesh Chemical Structure

Grade Chart	Sn	H	N	Zr+Hf	Hf	Fe+Cr	C	O	Nb
R60702/ERZr2	-	<0.005%	<0.015%	99.2%	<4.5%	<0.20%	<0.030%	<0.15%	-
R60704/ERZr3	97.5%	<4.5%	0.2-0.4%	1.0-2.0%	<0.005%	<0.015%	<0.030%	<0.16%	-
R60705/ERZr4	95.5%	<4.5%	<0.2%	-	<0.005%	<0.015%	<0.050%	<0.16%	2.0-3.0%

Zirconium Welding Wire Mechanical Properties Table

DESIGNATION	TENSILE STRENGTH		YIELD STRENGTH 2% OFFSET		PERCENT ELONGATION IN 2 in. IN 50 mm
	KSI*	MPa**	KSI*	MPa**
Annealed (A)	35	241	10	68	55
Half Hard (1/2H)	62	427	53	365	11
Hard (H)	68	468	60	413	10
Extra Hard (XH)	70	482	62	427	10.5
Spring	72	496	63	434	11

Basic Types Of ZR5668 Zirconium Filler Wire

Pure Zr702 Zr704 Zr705 wires

ASTM B550 zr 702 wires

zr wires with dia1.6mm

200 - 1000 m UNS R60702 wires

zirconium Welding wires Dia 1mm

R60702 R60704 Dia 0.25/0.5 Zr Wires

ERZr2 Zr Copper Wire Size Chart In Mm

Dia in mm	Diameter in mm	Dia in inches
1.14	1.2 mm	0.045
1.57	1.6 mm	0.03
2.3	2 mm	0.04
3.175	3.15 mm	0.047

PED Approved UNS ZR0929 Zirconium Wire Weight Chart, Zr702 Zr700 pure zirconium coiled wire, Check ASTM B550 zirconium 702 wire properties

UNS R60702 Zirconium tig Wire Physical Composition

Melting Point	1795 to 1975°F	980 to 1080°C
Density	.321 lb/cu inch @ 68°F	8.89 gm/centimeter@ 20°Celcius
Specific Gravity	8.89	8.89
Coefficient of Thermal Expansion	.000094 per °Farenheit (68-572°F)	.000017 per °Celcius (20-300°C)
Thermal Conductivity Chart	212 BTU/sq ft/ft/hr/°Farenheit @ 68°F	.876 cal/sq cm/cm/sec/°Celcius @ 20°C
Electrical Resistivity (Aged)	11.2 Ohms circ mil per ft @ 68°Farenheit	1.86 microhm – cm @ 20°Celcius
Electrical Conductivity (Aged)†	93% Copper IACS @ 68°F	.538 megohm cm @ 20°C
Specific Heat Treatment	.092 BTU/lb/°F @ 68°F	.092 cal/gm/°C @ 20°C
Modulus of Elasticity (tension)	18,700 KSI	13,000 kg/sq mm
Modulus of Rigidity in mm	7300 KSI	5000 kg/sq mm
Annealing Temperature †† in Celcius	1600-1700°F	870-970°C
Aging Temperature Annealed Hard	930-1020°F (1-4 hr.) 700-890°F (1-4 hr.)	500-550°C (1-4 hr.) 370-475°C (1-4 hr.)

Best Price & Fast Delivery of Zirconium Alloy Wire, Zirconium 702 Wire in India. Check Zirconium Vape Wire Dimension

Zirconium Welding Rods Wire Price List in India

Zirconium Wires Price List	Zirconium Welding Wires Per Unit (INR)
Zr702 Zr700 pure Zr coiled wires price	$70.00-$100.00/ Kilogram
zirconium wires Price List	$80.00-$200.00/ Kilogram
Pure Zr702 Zr704 Zr705 Zirconium wires	$30.00-$55.00/ Kilogram
ASTM B550 Zr 702 wires	$30.00-$65.00/ Kilogram
