Cobalt Wire

Chromium Alloy 6B Welding Wire Manufacturer In India, check Cobalt Mig Wire specification

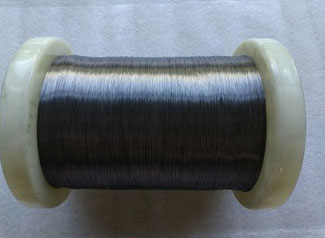

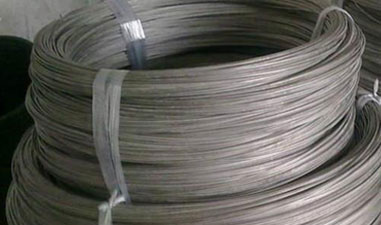

Cobalt Wire is a blue silver looking product made up of cobalt material. The wires are mostly used to make magnets. The material can be seen in medical industrial applications, electronics, batteries and in mobile devices. Navstar Steel is a leading Chromium Alloy 6B Welding Wire Manufacturer In India. The wires can range in diameter from 0.005 inches to 0.125 inches in various lengths.

Cobalt Wire

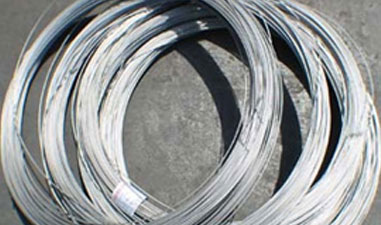

Chromium Alloy 6B Welding Wire

Cobalt Mig Wire

Check Cobalt Chromium Wire, Cobalt 6 Welding Wire Chemical Composition, AMS 5844 Nickel Cobalt Wire stockist in India

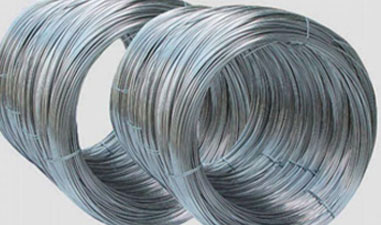

The lengths range from 25 inches to 100 inches for the wires. The Cobalt Mig Wire has carbon, 52% cobalt, chromium and tungsten in the composition. It is used for the MIG welding procedures. There are different grades of the wires such as NIC 9001 and NIC 9006.

Table of Contents

• Specification Chart of Chromium Alloy 6B Welding Wire
• Chemical Element of Cobalt Mig Wire
• Mechanical Properties of Cobalt Chromium Wire
• Types Of Cobalt 6 Welding Wire
• Size Chart of AMS 5844 Nickel Cobalt Wire
• UNS R30035 Cobalt Radio Ignition Wire Price

The NIC 9006 Cobalt Chromium Wire has more cobalt content of 65% and has less hardness. The hardness of the 9006 grade is at 44-46HRc. The material has high melting point of 1768.5K and is used for high performance alloys. The Cobalt 6 Welding Wire can be used with ease for welding applications. The material comes in different purities such as 99%, 99.95% and 99.99% pure grades as well. Please contact us for more information on the cobalt wires, Nickel Cobalt Wire and other types of cobalt wire products and prices.

Specification Chart of Chromium Alloy 6B Welding Wire

Product Name	Cobalt wires
Material	99.9% min cobalt
Size	Diameter 0.3mm min;
Technics	wire-drawing
Condition	Annealed
Application	chemical industry, Mechanical equipment, chemical engineering, military, heat exchanger, Condenser, electrode, power station, generating plant, generating station, electric power, electroplating, electroplating equipment, etc.

Large inventory of UNS R30035 Cobalt Radio Ignition Wire, Cobalt 60 Wire in Mumbai, Check Properties of Cobalt Based Welding Wire

Chemical Element of Cobalt Mig Wire

	C	Si	Mn	P	S	Cr	Ni	Co	Fe	W	Mo	Cu
max	1.30	1.80	0.50	0.030	0.030	32.00	3.00	bal	3.00	5.50	0.50	0.50
min	1.00	0.60				26.50				4.00
	Cu
Stellite 6 Mechanical property
Yield Strength (Mpa)		Tensile Strength (Mpa)		Elongation (%)		Reduction (%)		Hardness (HRC)		Charpy Impact (J)
541		896		<1				40-46HRC

Mechanical Properties of Cobalt Chromium Wire

Symbol: Co	Atomic Number: 27
Atomic Weight: 58.9332	Density: 8.9 gm/cc
Melting Point: 1495 oC	Boiling Point: 2870 oC
Thermal Conductivity: 1.0 W/cm/K @ 298.2 K	Electrical Resistivity: 6.24 microhm-cm @ 20 oC
Electronegativity: 1.8 Paulings	Specific Heat: 0.109 Cal/g/K @ 25 oC
Heat of Vaporization: 93 K-cal/gm atom at 2870 oC	Heat of Fusion: 3.64 Cal/gm mole

Types Of Cobalt 6 Welding Wire

Stellit 6 Rod Hardfacing CO Base Welding Wires

pure CO wires

Nickel alloy UNS R30035 MP35N wires W.Nr 2.4999 AMS 5844

CO alloy Stellite wires

API 6A stellite 6 wires welding wires

nickel plating wires

CO alloy wires 0.5mm

Straight CO welding wires

AWSA5.21 ERCoCr-A stellite 6 cobalt base welding wires

Get instant delivery of WNR 2.4999 Cobalt 6b Wire, Flat Cobalt Wires in india, View sizes and dimension of Straight CO Welding Wires

Size Chart of AMS 5844 Nickel Cobalt Wire

Diameter	Length
.005″ to .020″	100′ maximum
.021″ to .040″	72′ maximum
.042″ to .062″	50′ maximum
.064″ to .125″	25′ maximum

Manufacturer of Cobalt Alloy Stellite Wire, Nickel Plating Cobalt Wires, Check the latest price list of UNS R30035 CO Alloy Wire

UNS R30035 Cobalt Radio Ignition Wire Price

Chromium Alloy 6B Welding Wires Price List	Cobalt Chromium Wires Per Unit (INR)
nickel plating CO wires	$300.00-$350.00/ Kilogram
CO wires 0.5mm 0.5mm	$500.00-$600.00/ Kilogram
Cobalt Based Alloy Stellite 12 Wires	$30.00-$40.00/ Kilogram
pure CO welding wires	$68.00-$529.00/ Kilogram
