Stainless Steel Rectangular Pipe

Check SS Grade 202 Rectangular Tube, Rectangular Steel Pipe Price

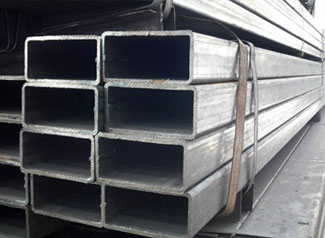

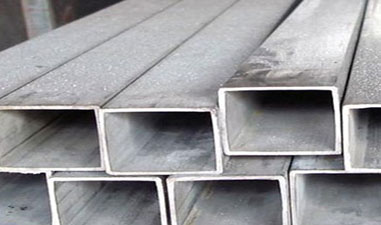

Stainless Steel Rectangular Pipe is a pipe that has a rectangular cross sections. The rectangular pipes are not very common in applications. The specific applications use these pipes for the strength. Navstar Steel is a leading manufacturer and supplier of the Stainless Steel Rectangular Pipe types in different material grades. There are different grades and specifications such as the 304 grade, 316 and the A249, A182 and 202 grades.

Stainless Steel Rectangular Pipe

SS Grade 202 Rectangular Tube

304 Stainless Steel Rectangular Tube

304 Stainless Steel Rectangular Tube Sizes, Manufacturer of Austenitic Stainless Steel Welded Rectangular Pipe in India

The SS Grade 202 Rectangular Tube as well as other grades are used in specific applications. The applications include high temperature services such as heat exchangers, boiler and condenser pipe components as well as general corrosive services. The Rectangular Steel Pipe Price ranges depending mostly on the grade of the material.

Table of Contents

• SS Grade 202 Rectangular Tube Specification Table
• Rectangular Steel Pipe Schedule Chart
• 304 Stainless Steel Rectangular Tube Tolerance
• Size Schedule Chart of Welded Rectangular Pipe
• Sizes of Stainless Steel Rectangle Tube
• SS Rectangular Tube Chemical Material Composition
• Mechanical Behaviour of SS Rectangular Pipe
• What Are The Types Of 316 Stainless Steel Rectangular Tubing?
• Price of SS Seamless Rectangular Pipes

The 304 stainless steel pipes are the cheapest among all other grades and these are the most used pipes. The 304 Stainless Steel Rectangular Tube Sizes range widely. Customized sizes are common because of the rare usage of the rectangular pipes. The Austenitic Stainless Steel Welded Rectangular Pipe is welded from pieces of the plates such as strips. The ends are welded together by electric resistance welded or electric fusion welding. Please feel free to contact us for more information on the Stainless Steel Rectangular Tube products and pricing.

SS Grade 202 Rectangular Tube Specification Table

Size	10 X 20, 12.75 X 25.4, 10 X 30, 15 X 30, 20 X 40, 20 x 50, 25 X 50, 20 x 60, 40 X 60, 40 X 80, 45 X 75, 50 X 100
Grades	TP - 304, 304L, 316, 316L, 201
Standards	A312 - A358 - A409 - A554 - A778 - A789 - A790
Tolerance on Length	Commercial Length: 6000 milimeter +/- 30 milimeter Fix Length: from 1200 milimeter up to 12000 milimeter with a tolerance up to -0/+ 5mm
Finish	Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1 milimeter,Mirror Polished

Rectangular Steel Pipe Schedule Chart

GAUGE	THICKNESS RANGE(INCHES)	TYPICAL VALUE (INCHES)
22	0.025 through 0.029	0.028
20	0.031 through 0.035	0.035
19	0.038 through 0.042	0.042
18	0.044 through 0.049	0.049
17	0.053 through 0.058	0.058
16	0.060 through 0.065	0.065
15	0.066 through 0.074	0.072
14	0.075 through 0.085	0.083
13	0.087 through 0.097	0.095
12	0.101 through 0.111	0.109
11	0.112 through 0.122	0.12
10	0.126 through 0.136	0.134
9	0.140 through 0.150	0.148
8	0.157 through 0.167	0.165
7	0.175 through 0.185	0.18

304 Stainless Steel Rectangular Tube Tolerance

NPS Designator	Permissible Variations in Outside Diameter
	Over In.	Under In.
1/8 to 1-1/2, incl	1/64 (0.015)	1/32 (0.031)
Over 1-1/2 to 4, incl	1/32 (0.031)	1/32 (0.031)
Over 4 to 8, incl	1/16 (0.062)	1/32 (0.031)
Over 8 to 18, incl	3/23 (0.093)	1/32 (0.031)

Size Schedule Chart of Welded Rectangular Pipe

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

SS Rectangle Pipe OD milimeter	Pipe WT milimeter	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Sizes of Stainless Steel Rectangle Tube

Wall Thickness	SS Rectangle Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

What Are The Types Of 316 Stainless Steel Rectangular Tubing?

AISI 304 SS Pipes Rectangular Tube Oval Tube 304

ss tube wholesale 316l 304 316 rectangular ss pipe

Rectangular tubes ss grade 201 304

304 316 309S 310S ss rectangular tube pipe

SS Square Rectangular Tube 316

Welded SS Rectangular Pipes, Wall Thickness: 1 To 20

SS Rectangular Pipes, Thickness: 3.5 Mm, 9 meter

SS 304 Rectangular Pipe, 2-5mm

SS 409 Rectangular Pipes

316 SS Rectangular Pipe, Material Grade: SS316, Thickness: 3 To 10 Mm

SS Rectangular Pipes, Nominal Size 1/2 inch

SS Rectangular Tube, Thickness: 0.8 to 1.5mm, Size: 60 x 40mm

Martensitic Stainless Steel Rectangular Tube Dimensions, Stainless Steel Rectangle Pipe, Check SS Rectangular Pipe Weight Chart

Weight Of Stainless Steel Rectangular Pipe In Kg/m

NPS	Outside Diameter		Wall Thickness			Weight	Weight
	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Save up to 40% on 316 Stainless Steel Rectangular Tubing, Stainless Seamless Rectangular Pipes. View 310 SS Rectangular Tube Chemical Composition

SS Rectangular Pipe Chemical Material Composition

PIPE GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0

Mechanical Behaviour of SS Rectangular Pipe

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35

Chromium Nickel Stainless Rectangular ERW Pipe, Visit Stainless 304 Rectangular Pipe manufacturers factory in India, ask for SS 316 Rectangular Pipe free sample

Price of SS Seamless Rectangular Pipes

Price of Stainless Steel Rectangle Pipe	SS Grade 202 Rectangular Tube Price in India (INR)
SS Welded Galvanized Rectangle Pipe	US $1-30 / Kilogram
18 inch Welded SS Pipe / 40*40 Stainless Rectangle Pipe	US $790-1900 / Ton
SS304/316 SS Rectangle Pipe	US $1600-2800 / Ton
SS seamless Rectangle pipe	US $1-4000 / Ton
