904L Stainless Steel Seamless and ERW Pipe

ASTM B677 UNS N08904 ERW Pipes Suppliers, Check 904L Stainless Steel Tube Price

904L Stainless Steel Seamless and ERW Pipe is made up of a nickel chromium alloy that has lower carbon content. The lower carbon content enables the pipes to be welded with ease without the risk of localized corrosion due to the reduced carbide precipitation during welding.

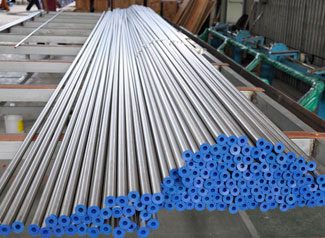

904L Stainless Steel Seamless and ERW Pipe

ASTM B677 UNS N08904 ERW Pipe

904L Stainless Steel Pipe

Check SS 904L Tubing, SS 904L Pipe, 904L Stainless Steel Pipe Weight Chart

Navstar Steel is one of the 904L Stainless Steel Pipe Suppliers and we supply the pipes in different types and dimensions. The material has 23% nickel, 19% chromium, carbon, manganese, silicon, phosphorus, sulfur and 4% molybdenum in the composition with nitrogen in 0.1% as well. The 904L Stainless Steel Tube gets the corrosion resistance and the strength from the composition. The material has 220MPa yield strength and 490MPa tensile strength. The material also has 70-90 Rockwell B hardness score. The Stainless Steel 904L Tubing belongs to ASTM B673 specification.

Table of Contents

• Specification List of ASTM B677 UNS N08904 ERW Pipes
• Schedule List of 904L Stainless Steel Pipe
• Tolerance Chart of 904L Stainless Steel Tube
• SS 904L Tubing Surface Finish
• 904L SS Pipe Size in mm
• Size Schedule Chart of 904L Stainless Steel Welded Tubes
• UNS N08904 Seamless Pipe Chemical Composition
• DIN 1.4539 Hexagonal Pipe Mechanical Strength Table
• Most Selling Types Of ASTM B677 TP 904L SS Round Pipes
• Equivalent Material Grade Of Steel UNS N08904 Square Pipe
• Physical Grade Of 904L SS Hollow Pipe
• Weight Of Stainless Steel 904L Rectangular Pipe
• Price List of 904L Stainless Steel Polished Pipe
• 904L SS Tube Pressure Chart

The dimensions of the tubes vary according to the ASTM, ASME and API standards. The pipes range from ½ inches to 16 inches in nominal bore size for seamless pipes, ½ to 24 inches for ERW pipes and 6 to 100 inches for electric fusion welded pipes. The sizes range from 1/8 inches to 30 inches. These ASTM B677 UNS N08904 ERW Pipes are specialized as larger diameter pipes. There are varying schedules from sch20 through XXS. There are seamless, welded, fabricated, ERW and LSAW pipes. The 904L Stainless Steel Welded Pipes are good for welding. They can come in different pipe endings like plain, beveled and treaded. Please contact us for more information on the products such as the UNS N08904 Seamless Pipe and the prices.

Specification List of ASTM B677 UNS N08904 ERW Pipes

Specifications	ASTM B673, B677 / ASME SB673, SB 677
Dimensions	ASTM, ASME and API
SS 904L Pipes	1/2″ NB – 16″ NB
ERW 904L Pipes	1/2″ NB – 24″ NB
EFW 904L Pipes	6″ NB – 100″ NB
Size	1/8″NB TO 30″NB IN
Specialized in	Large Diameter Size
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form	Round, Square, Rectangular, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

904L Stainless Steel Welded Pipes, UNS N08904 Seamless Pipe, Check WERKSTOFF NR. 1.4539 Hexagonal Pipe Schedule Chart

Schedule List of 904L Stainless Steel Pipe

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Tolerance Chart of 904L Stainless Steel Tube

Stainless Steel 904L Pipe OD	astm b677 tp 904l Pipe Tolerance
4 to 35 milimeter	+/- 0.08 milimeter
35 to 38 milimeter	+/- 0.15 milimeter
38 to 60 milimeter	+/- 0.20 milimeter
60 and above	+/- 0.25 milimeter

SS 904L Tubing Surface Finish

Surface Finish		Internal Surface(ID)		Exterbal Surface(OD)
		Roughness Average(RA)		Roughness Average(RA)
		μ inch	μm	μ inch	μm
AP	Annealed & Pickled	Not defined	Not defined	40 or Not defined	1.0 or Not defined
BA	Beight Annealed	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
MP	Mechanical Polish	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
EP	Electro Polish	15,10,7,5	0.38,0.25,0.20;0.13	32	0.8

904L SS Pipe Size in mm

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

904L Stainless Steel Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Size Schedule Chart of 904L Stainless Steel Welded Tubes

Wall Thickness	904L Stainless Steel Pipe Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

UNS N08904 Seamless Pipe Chemical Composition

Grade		C	Mn	Si	P	S	Cr	MO	Ni	CU
904L	Min	–	–	–	–	–	19.0	4.00	23.00	1.00
	max	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	2.00

WERKSTOFF NR. 1.4539 Hexagonal Pipe Mechanical Strength Table

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B)	Brinell (HB)
904L	490	220	35	70-90 typical	–
Rockwell Hardness value range is typical only; other values are specified limits.

Navstar Steel is a UNS N08904 Seamless Pipe manufacturer in India and SS 904L Pipe Suppliers, built a distribution network with more then 60 countries globally.

Most Selling Types Of ASTM B677 TP 904L SS Round Pipes

8 sch 10 stainless steel 904l tube

stainless Dteel 904L Pipe 3.0mm dia x 0.50mm wall x500mm

Customized 904l 4 Inch Stainless Steel Pipe

904L welded inox stainless steel pipe

1 inch sch 40 904l stainless steel pipe

Stainless Steel 904L Seamless Pipe 1/4"(13.72mm) NBxSch10/10s(1.65mm) wall x500mm

AISI 904L 18 inch Welded Stainless Pipe

904L stainless steel capillary tube micro polished 4mm capillary pipe

Thickness 9.0mm aisi 904l seamless stainless steel pipe

904L 5mm thickness stainless steel pipe

100mm diameter seamless stainless steel pipe 904l

904L Stainless Steel Pipe outer 29mm 38mm

Equivalent Material Grade Of Stainless Steel UNS N08904 Square Pipe

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	KS	EN
SS 904L	1.4539	N08904	SUS 890L	Z2 NCDU 25-20	904S13	STS 317J5L	X1NiCrMoCu25-20-5

We are SS 904L Pipe Suppliers in India. Check updated & latest 904L Stainless Steel Price In India.

Physical Grade Of 904L SS Hollow Pipe

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 20°C	At 500°C
904L	8000	200	15	–	–	13	–	500

Check below the stock of Stainless Steel 904L Pipe & Tube

OD mm	wall thikness mm	ANSI	weight kg/m
10,00	2,00		0,401
13,50	2,30		0,645
17,20	2,30		0,858
20,00	2,00		0,901
21,30	2,00		0,967
21,30	2,60		1,217
21,34	2,11	1/2″ SCH 10S	1,016
21,34	2,77	1/2″ SCH 40S	1,288
21,34	3,37	1/2″ SCH 80S	1,645
25,00	2,00		1,152
26,67	2,11	3/4″ SCH 10S	1,299
26,67	2,87	3/4″ SCH 40S	1,710
26,67	3,91	3/4″ SCH 80S	2,239
26,90	2,00		1,247
26,90	2,60		1,582
30,00	2,00		1,402
33,40	2,77	1″ SCH 10S	2,125
33,40	3,38	1″ SCH 40S	2,541
33,40	4,55	1″ SCH 80S	3,287
33,70	2,00		1,588
33,70	2,60		2,025
33,70	3,20		2,444
38,00	2,60		2,305
42,16	2,77	1.1/4″ SCH 10S	2,732
42,16	3,56	1.1/4″ SCH 40S	3,441
42,16	4,85	1.1/4″ SCH 80S	4,536
42,40	2,00		2,023
42,40	2,60		2,591
42,40	3,20		3,141
48,26	2,77	1.1/2″ SCH 10S	3,155
48,26	3,68	1.1/2″ SCH 40S	4,108
48,26	5,08	1.1/2″ SCH 80S	5,493
48,30	2,00		2,319
48,30	2,60		2,975
48,30	3,20		3,614
60,30	2,00		2,920
60,30	2,60		3,757
60,30	2,90		4,168
60,30	3,60		5,111
60,33	2,77	2″ SCH 10S	3,992
60,33	3,91	2″ SCH 40S	5,524
60,33	5,54	2″ SCH 80S	7,601
73,03	5,16	2.1/2″ SCH 40S	8,769
76,10	2,90		5,315
76,10	3,60		6,535
88,90	2,90		6,245
88,90	3,05	3″ SCH 10S	6,557
88,90	4,05		8,605
88,90	5,49	3″ SCH 40S	11,466
88,90	7,62	3″ SCH 80S	15,509
108,00	4,00		10,417
114,30	3,05	4″ SCH 10S	8,496
114,30	3,60		9,979
114,30	4,50		12,372
114,30	6,02	4″ SCH 40S	16,322
114,30	8,56	4″ SCH 80S	22,660
114,30	8,56	4″ SCH 80S	22,665
139,70	4,00		13,592
168,30	3,40	6″ SCH 10S	14,039
168,30	5,00		20,445
168,30	7,11	6″ SCH 40S	28,697
219,10	8,18	8″ SCH 40S	43,202

Navstar Steel is a Govt. approved certified 904L Stainless Steel Pipe Suppliers In India. All of our 904L Stainless Pipe are manufactured and tested to international standards, and specifications. We are well-known as a trusted vendor as a Stainless Steel 904L Seamless And Welded Pipes manufactuers & distributor in your country. We have huge stock in Asia, GCC, Gulf, Middle east, UK to supply with over 58 countries.

Product Description	Outside Diamter, OD (in mm)		Wall Thickness, WT (in mm)
904L SS Rectangular Pipe	10*20mm to 100*200mm		0.5mm-30mm
904L SS Colour Coated Pipe	6mm to 630mm		0.5mm-30mm
904L Stainless Steel Ornamental Tubes	12.7mm to 76.2mm		0.5mm-2.0mm
904L SS Electropolished Pipes/Tubes	12.7mm to 250mm		0.5mm-30mm
904L SS Slot Round Pipe	12.7mm to 76.2mm		0.5mm-2.0mm
904L SS Round Pipe	6mm – 630mm		0.5mm-30mm
904L SS Square Pipe	12.7mm* 12.7mm to 300mm* 300mm		0.5mm-30mm
904L SS Handrail Pipe	–		0.5mm-2.0mm
904L SS U Shaped Pipe	20mm to 200mm		0.5mm-2.0mm
904L Thin-Wall Stainless Steel Pipe	22mm*0.7mm to 108mm*2.0mm		0.5mm-2.0mm
904L SS Triangle Pipe	16mm to 85mm		0.5mm-3.0mm
904L SS Hexagonal Pipe	13mm to 85mm		0.5mm-2.0mm
904L Inner/Outside Polished Stainless Steel Pipe	12.5mm to 203.2mm		1.0mm – 5mm
Stainless Steel 904L Capillary Pipe	0.28mm to 10mm		0.08mm – 1.2mm
Stainless Steel 904L Seamless Pipe	6mm to 430mm		0.8mm – 30mm

Weight Of Stainless Steel 904L Rectangular Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Accept all small/ Large OrdersASTM B677 TP 904L SS Round Pipes, Stainless Steel UNS N08904 Square Pipe, 904L SS Hollow Pipe at reasonable price

Price List of 904L Stainless Steel Polished Pipe

Price of 904L Stainless Steel Pipe manufacturer in India	904L Stainless Steel Pipe Price in India (INR)	904L SS Pipe Price in UAE Dirham
Stainless Steel 904L Pipe	950 INR	48.67 UAE Dirham
SS 904l Seamless Tubes	1300 INR	66.60 UAE Dirham
Uns N08904 Pipe	1150 INR	58.91 UAE Dirham

Call us to know more about Ready stock of SS 904L Pipes, Stainless Steel 904L Rectangular Pipe, View Pressure Rating of 904L Stainless Steel Polished Pipe.

904L SS Tube Pressure Chart

Pipe O.D. (in.)	Wall Thickness of Pipe/Tube (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Maximum Allowable Working Pressure (Psi) For Fractional Sizes

Pipe OD	Wall Thickness (Inches)
	.010	.012	.016	.020	.028	.035	.049	.065	.083	.095	.109	.120
1/16	6,422	7,872	10,768	13,484
1/8				6,422	9,325	11,823
3/16				4,081	5,935	7,630	11,005
1/4					4,305	5,518	8,053	10,946
3/8						3,530	5,107	7,029
1/2						2,595	3,721	5,078	6,699
5/8						2,051	2,927	3,970	5,200	6,056
3/4						1,696	2,412	3,259	4,249	4,933	5,755	6,422
7/8						1,446	2,051	2,764	3,592	4,161	4,842	5,391
1						5,040	7,140	9,595	12,445	14,390	16,715	18,585

Maximum Allowable Working Pressure (Bar) For Metric Sizes

Pipe OD	Wall Thickness (Inches)
	0.5	0.6	0.7	0.8	1.0	1.2	1.5	1.6	1.8	2.0	2.2	2.5	3.0
3	464	567	672	775	965
4	335	411	491	567	723	873
6			310	360	464	567	723	775
8			227	262	335	411	528	567
10				206	262	320	411	442
12				169	215	262	335	360	411	464
14					182	222	282	303	345	389	433	500	612
16					158	192	244	262	298	335	372	430	528
18					140	169	215	230	262	294	326	377	464
22					113	137	173	186	211	236	262	301	369
25					99	120	152	162	184	206	228	262	320
