ASTM A672 GR B60 class 12 Pipe

ASTM A672 GR B65 CL 22 Seamless Pipe, Check ASTM A672 Pipe Dimension

ASTM A672 GR B60 class 12 Pipe is electric fusion welded and has different classes to it. The material can be welded with the aid of filler material. There are different specifications such as ASTM A 672, GR B60 and others. Navstar Steel is a leading supplier and manufacturer of the ASTM A672 GR B65 CL 22 Seamless Pipe and other classes of the pipes in different dimensions.

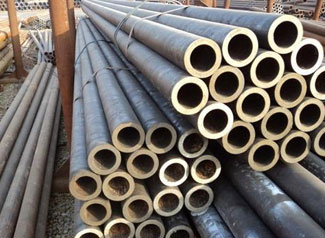

ASTM A672 GR B60 class 12 Pipe

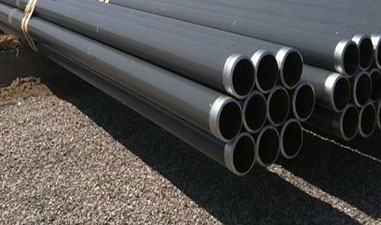

ASTM A672 GR B65 CL 22 Seamless Pipe

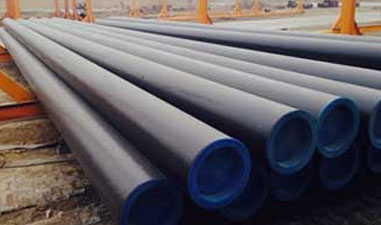

ASTM A672 Pipe

ISO Certified Manufacturer of A672 Pipe Material, ASME SA672 CC70 ERW Pipe, ASTM A672 GR C70 CL 12 Welded Pipe in India

The outer diameter of the pipes ranges from 12 inches to 64 inches. The wall thickness of the pipes ranges from 2mm to 60mm and the length of the pipes ranges from single random, double random and custom cut to length sizes. The ASTM A672 Pipe can have different surface treatments. They could be bare, painting black, varnished, galvanized, anti-corrosion PE coated, etc.

Table of Contents

• ASTM A672 GR B65 CL 22 Seamless Pipe Material Specification
• ASTM A672 Pipe Standard Weight Chart
• ASTM A672 GR C70 CL 12 Welded Pipe Size Chart In Mm
• Basic Types Of A672 Pipe Material
• ASME SA672 CC70 ERW Pipe Equivalent Grades
• ASTM A672 C70 Cl22 Pipe Chemical Structure
• ASTM A672 C70 Pipe Material Mechanical Properties Table
• Dimensions Chart of ASTM A672 Grade C70 Pipe
• A672 Gr B65 Square Pipe Price List in India

There are different methods involved in making the pipes such as the hot rolled and cold drawn methods. There are different classes to the ASTM A672 GR C70 CL 12 Welded Pipe that range from class 10 through class 50. The applications of the pipes vary from petrochemicals to marine industrial applications. The strength and corrosion resistance of the A672 Pipe Material makes it available for a host of applications. The wear and tear resistance of the material makes it long lasting. Please contact us for the ASME SA672 CC70 ERW Pipe prices and more information.

ASTM A672 GR B65 CL 22 Seamless Pipe Material Specification

Standards	ASTM A672 / A672 C55 LSAW STEEL PIPES
Specification	ASTM A672 /ASME SA672
Type	EFW (ELECTRIC FUSION WELDED PIPES)
Class Designation	CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Outer Diameter Size	16" NB To 100" NB (Nominal Bore Size)
Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Ends	Plain Ends / Beveled Ends / Coupling
Delivery Conditions	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Get ASTM A672 C70 Pipe Material, ASTM A672 Grade C70 Pipe Weight Chart and Buy A672 Gr B65 Square Pipe at Best Price in India

ASTM A672 Pipe Standard Weight Chart

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

ASTM A672 GR C70 CL 12 Welded Pipe Size Chart In Mm

ASTM A672 GR B60 class 12 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Basic Types Of A672 Pipe Material

coupling pvc and carbon bend a672 efw 1.0315 seamless steel pipe

astm a672 48*3.5 Seamless Steel Pipes SSAW Pipe

astm grade a36 square a672 efw black 12 inch seamless steel pipe

Astm A672 C70 Cl22 Spiral Welded Tube Erw Cold Rolled Black Square Pipe

schedule 40 astm A672 cold rolled steel pipe

ASTM A672 Carbon Seamless Steel Pipe

ASTM A672 Welded Pipe 6-100 mm thick

3m, 6m ASTM A672 Grade A45 Pipes

Black ASTM A672 CC65 Pipes, Length: 3mtr, 6mtr

ASTM A672 EFW Carbon Steel Pipe

Carbon Pipes EFSW ASTM A 672 GR60 CL 22, Size: 1 inch

Black ASTM A672 Seamless Pipes, Size: 1/2 Inch And 3 Inch

ASME SA672 CC70 ERW Pipe Equivalent Grades

ASTM Grade	Material	JIS/JPI
A55	A285 Gr C	JPI-SB42
B55	A515 Gr 55	-
B60	A515 Gr 60	JPI-SB42
B65	A515 Gr 65	JPI-SB46
B70	A515 Gr 70	JPI-SB49
C55	A516 Gr 55	-
C60	A516 Gr 60	JPI-SLA24B (1)
C65	A516 Gr 65	JPI-SLA33B (1)
C70	A516 Gr 70	-
D70	A537 CL 1	-
E55	A442 Gr 55	-
E60	A442 Gr 60	JPI-SPV24
L65	A204 Gr A	JPI-SB46M
L70	A204 Gr B	JPI-SB49M (2)
L75	A204 Gr C	-
N75	A299	-

Stock an extensive range of A672 B70 Cl 32 Hollow Pipe, ASTM A672 grade c70 Welded Pipe, check Composition of ASTM A672 B65 CL22 Hex Pipe

ASTM A672 C70 Cl22 Pipe Chemical Structure

Specification	Steel grade	Chemical composition						Remarks
		C	Si	Mn	P	S	Ti
Pipes for pressure service ASTM A671, A672	-/A45	-/0.17	-	0.98	0.035	0.035	-	A671/ A672
	-/A50	-/0.22	-
	CA55/A55	0.28	-
	-/B55	-/0.20	0.13 ~0.45
	CB60/B60	0.24
	CB65/B65	0.28
	CB70/C70	0.31		1.30
	-/C55	-/0.18		0.55 ~0.98
	CC60/C60	0.21
	CC65/C65	0.24		0.79 ~1.30
	CC70/C70	0.27

ASTM A672 C70 Pipe Material Mechanical Properties Table

Products	Steel Grade	BASE METAL MECHANICAL COMPOSITION				Welding point tensile strength (N/mm2)	Remarks
		Yield point (N/mm2)	Tensile Stregth (N/mm2)	Test Pieces	Elongation (%)
Pipes for pressure service ASTM A671, A672	-/A45	-/165	-/310~450	-	-/30	-/310~450	A671/ A672
	-/A50	-/185	-/345~485		-/28	-/345~485
	CA55/A55	205	380~515		27	380~515
	-/B55	-/205	-/380~515		-/27	-/380~515
	CB60/B60	220	415~550		25	415~550
	CB65/B65	240	450~585		23	450~585
	CB70/B70	260	485~620		21	485~620
	-/C55	-/205	-/380~515		-/27	-/380~515
	CC60/C60	220	415~550		25	415~550
	CC65/C65	240	450~585		23	450~585
	CC70/C70	260	485~620		21	485~620

Dimensions Chart of ASTM A672 Grade C70 Pipe

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

Manufacturing high-class Steel Pipe ASTM A672 C70, A672 Rectangular Pipe in India, offer lowest price of ASTM A672 C70 Cl22 Pipe

A672 Gr B65 Square Pipe Price List in India

Price of ASTM A672 Pipe	A672 Pipe Material Price
Mild Steel ASTM A672 EFW Pipes, Thickness: 1-2	Rs 80/ Kilogram(s)
Carbon Steel ASTM / ASME A 672 B65 Welded Pipe	Rs 120/ Kg
Astm a672 carbon schedule 40 steel black iron pipe	Rs 150/ Kg
