ASTM A333 Grade 6 Pipe

  Home   ⁄   ASTM A333 Grade 6 Pipe

ASME SA 333 GR 6 Seamless Pipe, ASTM A333 Grade 6 Welded Pipe Specification

ASTM A333 Grade 6 Pipe is a carbon steel pipe that comes under ASTM, ASME and API standards. There are grades 1 through 11 in the pipe series and the sizes range from ½ inches to 36 inches. The wall thickness of the pipes range from 3mm to 12mm and the ASME SA 333 GR 6 Seamless Pipe come under different schedules such as sch40, sch80 and up to XXS including all schedules.

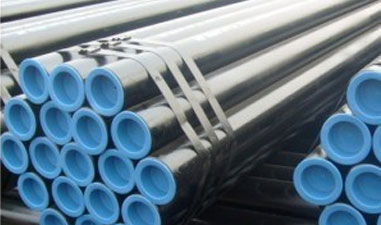

ASTM A333 Grade 6 Pipe
ASTM A333 Grade 6 Pipe

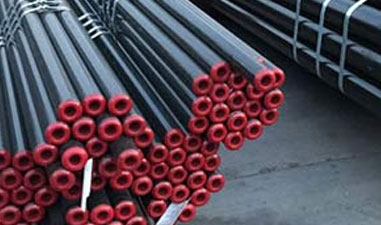

ASME SA 333 GR 6 Seamless Pipe
ASME SA 333 GR 6 Seamless Pipe

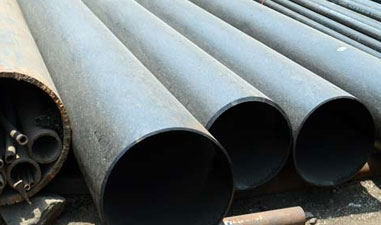

ASTM A333 Grade 6 Welded Pipe
ASTM A333 Grade 6 Welded Pipe

Carbon Steel ASTM A333 ERW Pipe, ASTM A333 Carbon Steel GR.6 Square Pipe suupliers, check sizes of CS A333 GR 6 Hexagonal Pipe

The cold drawn and cold rolled pipe types are available. There are seamless, welded, ERW and fabricated pipes. The seamless pipes are drawn from a single billet of the material whereas the ASTM A333 Grade 6 Welded Pipe Specification mandates it be welded from a strip or sheet of the same material grade. The form of the pipes can vary as round or hydraulic in most cases.

Table of Contents


ASTM A333 Grade 6 Pipe

These carbon steel pipes are used in the transportation of oil and gases in long pipe lines. The Carbon Steel ASTM A333 ERW Pipe is strong with 415MPa minimum tensile strength and 240MPa minimum yield strength. The material is used for its extended toughness and wear resistance. The carbon steel provides the mechanical properties necessary for line pipes. The ASTM A333 Carbon Steel GR.6 Square Pipe is also available but is used under different circumstances. The square pipes have high strength due to the geometric shape. There are also other types such as the CS A333 GR 6 Hexagonal Pipe. Please contact us for more product information and pricing.

Specification Format of ASME SA 333 GR 6 Seamless Pipe

Specifications ASTM A333 ASME SA333
Dimensions ASTM, ASME and API
Size 1/2” NB to 36” NB
Thickness 3-12mm
Schedules SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Type Seamless / ERW / Welded / Fabricated
Form Round, Hydraulic Etc
Length Min 3 Meters, Max18 Meters, or according to customer’s requirement
End Plain End, Beveled End, Treaded

we have bulk stock of Carbon Steel A333 Gr.6 Square Pipe, CS A333 Gr.6 Hollow Pipe in india, check properties of Carbon Steel A333 Grade 6 Pipe

Physical Composition of ASTM A333 Grade 6 Welded Pipe

Density (lb / cu. in.) 0.284
Specific Gravity 7.9
Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) 0.105
Melting Point (Deg F) 2750
Thermal Conductivity 360
Mean Coeff Thermal Expansion 6.3
Modulus of Elasticity Tension 30
Modulus of Elasticity Torsion 11

Thickness List of Carbon Steel ASTM A333 ERW Pipe

ASTM A333 Grade 6 Pipe Types Out diameter Wall thickness Length
A333 Grade 6 Seamless Pipe (Custom Sizes) 1/2" NB – 60" NB SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Custom
Welding A333 Grade 6 Pipe (in Stock + Custom Sizes) 1/2" NB – 24" NB As per requirement Custom
ASTM A333 Grade 6 ERW Pipe (Custom Sizes) 1/2" NB – 24" NB As per requirement Custom
ASTM A333 Grade 6 SAW Pipe 16" NB – 100" NB As per requirement Custom

Tolerance Chart of ASTM A333 Carbon Steel GR.6 Square Pipe

Outside Diameter, inch Tolerance, %
1/8≤OD≤2-1/2 +20.0/-12.5
3≤OD≤18, WT/OD≤5% +22.5/-12.5
3≤OD≤18, WT/OD>5% +15.0/-12.5
OD≥20, WT/OD≤5% +22.5/-12.5
OD≥20, WT/OD>5% +15.0/-12.5

Product Range of CS A333 GR 6 Hexagonal Pipe

Crade The lowest temperature for strike test
℉ ℃
SA 333 GR 1 -50 -45
SA 333 GR 3 -150 -100
SA 333 GR 4 -150 -100
SA 333 GR 6 -50 -45
SA 333 GR 7 -100 -75
SA 333 GR 8 -320 -195
SA 333 GR 9 -100 -75
SA 333 GR 10 -75 -60

Carbon Steel A333 Gr.6 Square Pipe Chemical Formula

C(max) Mn P(max) S(max) Si Ni
Grade 1 0.03 0.40 – 1.06 0.025 0.025
Grade 3 0.19 0.31 – 0.64 0.025 0.025 0.18 – 0.37 3.18 – 3.82
Grade 6 0.3 0.29 – 1.06 0.025 0.025 0.10 (min)

CS A333 Gr.6 Hollow Pipe Mechanical Analysis

Grade Yield strength, min, psi (MPa) Tensile strength, min, psi (MPa) Elongation (%)
A333 Gr.6 35 000 (240) 60 000 (415) 30 min

Most Common Types Of Carbon Steel A333 Grade 6 Pipe

6m, 3m ASTM A333 Gr 6 Pipes

6m, 3m ASTM A333 Gr 6 Pipes

Black ASTM A333 GR.3 , Size: 1/2 Inch, 3/4 Inch

Black ASTM A333 GR.3 Pipes, Size: 1/2 Inch, 3/4 Inch

Black ASTM A333 Grade 6 Seamless Pipes

Black ASTM A333 Grade 6 Seamless Pipes

1/8 to 24 inch Carbon Steel Round ASTM A333 Gr.6 Pipe

1/8 to 24 inch Carbon Steel Round ASTM A333 Gr.6 Pipes

ASTM A333 Welded Pipe, Size: 2 Inch And 3 Inch
ASTM A333 Welded Pipes, Size: 2 Inch And 3 Inch
Round Carbon Steel ASTM A333 Grade 6 Seamless Pipe, Size: 1/2 to 48 inch

Round Carbon Steel ASTM A333 Grade 6 Seamless Pipes, Size: 1/2" to 48"

ASTM A333 Grade 6 ERW Pipe & Tubes, Size: Upto 20inch

ASTM A333 Grade 6 ERW Pipes & Tubes, Size: Upto 20"

Galvanized ASTM A333 Carbon Steel Seamless Pipe, 3-10 Meter

Galvanized ASTM A333 Carbon Steel Seamless Pipes, 3-10 Meter

32mm 8 inch Schedule 40 ASTM A333 Carbon Steel

32mm 8 inch Schedule 40 ASTM A333 Carbon Steel

ASTM A333 2 inch black steel pipe 7 inch sch40 seamless steel carbon pipe

ASTM A333 2 inch black steel pipes 7 inch sch40 seamless steel carbon pipe

ERW carbon ASTM A333 sch 40 GI pipe galvanized steel pipes

ERW carbon ASTM A333 sch 40 GI pipes galvanized steel pipes

ASTM A333 50*100 Schedule 40 Rectangular Galvanized Carbon Steel Pipe

ASTM A333 50*100 Schedule 40 Rectangular Galvanized Carbon Steel Pipe

Equivalent Grades Of Grade 6 ASTM A333 Bush Hex Pipe

Former New
Execution Standard Material Standard Material
Seamless ASTM A333 GRADE 6 EN 10216-4 P265NL
DIN EN BS NFA ASTM ASME
DIN 17178 Grade FGP 28 EN P265NL Grade 10216-4 NFA A 36-2051) Grade A 42 AP ASTM A333 Grade6 ASME SA 333 Grade 6 UNI C20

Low Temperature of Carbon Steel Seamless Black Round Pipes

OD 1.0-30mm, 10.0-700.0mm
WT SCH5, SCH10, SCH20, SCH60, SCH80, SCH100, SCH120, SCH160, XXS
Specification
  • Outer Diameter:10mm – 700mm;2.Wall Thickness:1.0mm–30mm;3.Length:Max 12m
  • We can also produce according to customers requirement
Material EN 10216-4 p265nl, en 10216-4 p215nl, bs en 10216-4, din en 10216-4, sr en 10216-4, 10#20#45#16Mn A106 Gr A, B, A53 Gr B, ASTM A179, A315B, A335 P11, A335 P22, A335 P5 12CrMo 15CrMo 20CrMo 42CrMo 12Cr1Mov 10CrMo 910A 355P 22 STF A25
Stockist of Grade 6 ASTM A333 Bush Hex Pipe, Carbon Steel Seamless Black Round Pipes sizes, ASTM A333 Grade 6 Pipes Price in Mumbai

ASTM A333 Grade 6 Pipes Price per Foot

Price of ASTM A333 Grade 6 Pipe Carbon Steel ASTM A333 ERW Pipe Price
hot rolled seamless carbon steel pipe astm a333 grade 6 $830.00-$850.00
ASTM a333 grade 6 sch 120 carbon steel seamless pipe $400.00-$1,000.00
ASTM a333 gr 6 schedule 10 carbon steel pipe $600.00-$680.00

Carbon Steel A333 Grade 6 Pipe Pressure Class

Size (in) Outside Diameter (in) Wall Thickness (in) Inside Diameter (in) Schedule Temperature (oF)
100 200 300 400 500 600 650 700
Allowable Stress (psi)
23300 21300 20700 20000 18900 17300 16900 16800
Maximum Allowable Pressure (psi)
1/2 0.84 0.109 0.622 401) 6747 6168 5994 5792 5473 5010 4894 4865
0.84 0.147 0.546 802) 9483 8669 8424 8140 7692 7041 6878 6837
0.84 0.188 0.464 160 12704 11614 11287 10905 10305 9433 9215 9160
0.84 0.294 0.252 22653 20708 20125 19444 18375 16819 16431 16333
3/4 1.05 0.113 0.824 40 5487 5016 4875 4710 4451 4074 3980 3957
1.05 0.154 0.742 80 7743 7079 6879 6647 6281 5749 5616 5583
1.05 0.219 0.612 160 11666 10665 10364 10014 9463 8662 8462 8412
1.05 0.308 0.434 17861 16328 15868 15331 14488 13261 12955 12878
1 1.315 0.133 1.049 40 5128 4688 4556 4402 4160 3808 3720 3698
1.315 0.179 0.957 80 7118 6507 6324 6110 5774 5285 5163 5133
1.315 0.25 0.815 160 10448 9552 9283 8969 8475 7758 7578 7534
1.315 0.358 0.599 16219 14827 14409 13922 13156 12042 11764 11694
1 1/4 1.66 0.14 1.38 40 4214 3853 3744 3618 3419 3129 3057 3039
1.66 0.191 1.278 80 5905 5398 5246 5069 4790 4385 4283 4258
1.66 0.25 1.16 160 7979 7295 7089 6849 6473 5925 5788 5753
1.66 0.382 0.896 13143 12015 11677 11282 10661 9759 9533 9477
1 1/2 1.9 0.145 1.61 40 3788 3462 3365 3251 3072 2812 2747 2731
1.9 0.2 1.5 80 5356 4897 4759 4598 4345 3977 3885 3862
1.9 0.281 1.338 160 7817 7146 6944 6710 6341 5804 5670 5636
1.9 0.4 1.1 11797 10785 10481 10127 9570 8759 8557 8506
2 2.375 0.109 2.157 10 2220 2030 1972 1906 1801 1648 1610 1601
2.375 0.154 2.067 40 3187 2913 2831 2736 2585 2366 2312 2298
2.375 0.218 1.939 80 4616 4220 4101 3963 3745 3428 3348 3329
2.375 0.25 1.875 5356 4897 4759 4598 4345 3977 3885 3862
2.375 0.281 1.813 6090 5567 5410 5227 4940 4522 4417 4391
2.375 0.344 1.687 160 7634 6979 6782 6553 6193 5668 5537 5505
2.375 0.436 1.503 10027 9167 8908 8607 8134 7445 7273 7230
2 1/2 2.875 0.12 2.635 10 2012 1840 1788 1727 1632 1494 1460 1451
2.875 0.203 2.469 40 3487 3188 3098 2993 2829 2589 2529 2514
2.875 0.216 2.443 3725 3405 3309 3197 3022 2766 2702 2686
2.875 0.25 2.375 4355 3981 3869 3738 3533 3234 3159 3140
2.875 0.276 2.323 80 4846 4430 4305 4159 3931 3598 3515 3494
2.875 0.375 2.125 160 6786 6204 6029 5825 5505 5039 4922 4893
2.875 0.552 1.771 10571 9664 9391 9074 8575 7849 7667 7622
3 3.5 0.12 3.26 1643 1502 1459 1410 1333 1220 1192 1184
3.5 0.156 3.188 2154 1969 1913 1849 1747 1599 1562 1553
3.5 0.172 3.156 2384 2179 2118 2046 1934 1770 1729 1719
3.5 0.188 3.124 2615 2391 2324 2245 2122 1942 1897 1886
3.5 0.216 3.068 40 3025 2766 2688 2597 2454 2246 2194 2181
3.5 0.25 3 3530 3227 3136 3030 2864 2621 2561 2545
3.5 0.281 2.938 3998 3655 3552 3432 3243 2969 2900 2883
3.5 0.3 2.9 80 4288 3920 3810 3681 3479 3184 3110 3092
3.5 0.438 2.624 160 6480 5924 5757 5563 5257 4812 4700 4673
3.5 0.6 2.3 9258 8464 8225 7947 7510 6874 6715 6675
3 1/2 4 0.12 3.76 10 1432 1309 1273 1230 1162 1064 1039 1033
4 0.226 3.548 140 2758 2521 2450 2367 2237 2047 2000 1988
4 0.25 3.5 3066 2803 2724 2632 2487 2276 2224 2211
4 0.281 3.438 3469 3171 3082 2977 2814 2575 2516 2501
4 0.318 3.364 80 3956 3617 3515 3396 3209 2938 2870 2853
4 0.636 2..728 8489 7761 7542 7287 6886 6303 6157 6121
4 4.5 0.12 4.26 10 1270 1161 1128 1090 1030 943 921 916
4.5 0.156 4.188 1662 1519 1476 1426 1348 1234 1205 1198
4.5 0.188 4.124 2014 1841 1789 1729 1634 1495 1461 1452
4.5 0.203 4.094 2181 1994 1938 1872 1769 1619 1582 1572
4.5 0.219 4.062 2360 2157 2096 2026 1914 1752 1712 1701
4.5 0.237 4.026 40 2562 2342 2276 2199 2078 1902 1858 1847
4.5 0.25 4 2709 2477 2407 2326 2198 2012 1965 1953
4.5 0.281 3.938 60 3063 2800 2721 2629 2485 2274 2222 2208
4.5 0.312 3.876 3421 3127 3039 2936 2775 2540 2481 2466
4.5 0.337 3.826 80 3712 3394 3298 3186 3011 2756 2693 2677
4.5 0.438 3.624 120 4919 4497 4370 4222 3990 3652 3568 3547
4.5 0.531 3.438 160 6072 5551 5394 5212 4925 4508 4404 4378
4.5 0.674 3.152 7930 7249 7045 6807 6432 5888 5752 5718
5 5.563 0.188 5.187 1619 1480 1438 1389 1313 1202 1174 1167
5.563 0.219 5.125 1894 1732 1683 1626 1536 1406 1374 1366
5.563 0.258 5.047 40 2244 2052 1994 1927 1821 1667 1628 1618
5.563 0.281 5.001 2453 2242 2179 2106 1990 1821 1779 1769
5.563 0.312 4.939 2736 2501 2431 2349 2220 2032 1985 1973
5.563 0.344 4.875 3032 2771 2693 2602 2459 2251 2199 2186
5.563 0.375 4.813 80 3320 3035 2950 2850 2693 2465 2408 2394
5.563 0.5 4.563 120 4513 4126 4009 3874 3661 3351 3273 3254
5.563 0.625 4.313 160 5753 5259 5111 4938 4666 4271 4172 4148
5.563 0.75 4.063 7042 6438 6256 6045 5712 5229 5108 5078
We are Govt. approved certified Carbon Steel A333 Grade 6 Pipe, Carbon Steel A333 Gr.6 Rectangular Pipe, Check Weight Chart of ASTM A333 Grade 6 Pipes

ASTM A333 Gr 6 Pipe Weight Chart

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule Pipe # Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
0.147 0.546 1.09 XHY 80 .0478 .0122
0.188 0.464 1.31 160 .0528 .0088
0.294 0.252 1.72 XXHY .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
0.154 0.742 1.48 XHY 80 .0853 .0225
0.219 0.612 1.95 160 .1006 .0153
0.308 0.434 2.44 XXHY .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
0.179 0.957 2.17 XHY 80 .1606 .0374
0.250 0.815 2.85 160 .1904 .0271
0.358 0.599 3.66 XXHY .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
0.191 1.278 3.00 XHY 80 .2913 .0666
0.250 1.160 3.77 160 .3421 .0549
0.382 0.896 5.22 .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
0.200 1.500 3.63 XHY 80 .4118 .0918
0.281 1.338 4.86 160 .5079 .0730
0.400 1.100 6.41 .5977 .0494
2 2.375 0.109 2.157 2.64 10 .4205 .1898
0.154 2.067 3.66 STD 40 .5606 .1743
0.218 1.939 5.03 XHY 80 .7309 .1534
0.250 1.875 5.68 .8045 .1434
0.281 1.813 6.29 .8666 .1344
0.344 1.687 7.47 160 .9806 .1161
0.436 1.503 9.04 XXHY 1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53 10 .6870 .2833
0.203 2.469 5.80 STD. 40 1.0640 .2487
0.216 2.443 6.14 1.1169 .2435
0.250 2.375 7.02 1.2468 .2301
0.276 2.323 7.67 XHY 80 1.3386 .2202
0.375 2.125 10.02 160 1.6371 .1842
0.552 1.771 13.71 XXXHY 1.9971 .1280
3 3.50 0.120 3.260 4.34 1.0411 .4336
0.156 3.188 5.58 1.3122 .4147
0.172 3.156 6.12 1.4265 .4064
0.188 3.124 6.66 1.5342 .3984
0.216 3.068 7.58 STD. 40 1.7241 .3840
0.250 3.000 8.69 1.9372 .3672
0.281 2.938 9.67 2.1207 .3521
0.300 2.900 10.26 XHY 80 2.2253 .3431
0.438 2.624 14.34 160 2.8774 .2811
0.600 2.300 18.6 XXHY 3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98 10 1.3776 .5768
0.226 3.548 9.12 STD. 140 2.3939 .5136
0.250 3.500 10.02 2.6001 .4998
0.281 3.438 11.17 2.8562 .4821
0.318 3.364 12.52 XHY 80 3.1400 .4617
0.636 2..728 22.87 XXHY 4.8795 .3085
4 4.5 0.120 4.260 5.62 10 1.7612 .7404
0.156 4.188 7.24 2.2354 .7156
0.188 4.124 8.67 2.6296 .6942
0.203 4.094 9.32 2.8173 .6838
0.219 4.062 10.02 3.0184 .6725
0.237 4.026 10.80 STD. 40 3.2145 .6613
0.250 4.000 11.36 3.3611 .6528
0.281 3.938 12.67 60 3.7021 .6326
0.312 3.876 13.97 4.0273 .6126
0.337 3.826 15.00 XHY 80 4.2713 .5972
0.438 3.624 19.02 120 5.1790 .5361
0.531 3.438 22.53 160 5.8997 .4822
0.674 3.152 27.57 XXHY 6.7927 .4054
5 5.563 0.188 5.187 10.80 4.1161 1.0979
0.219 5.125 12.51 4.7279 1.0716
0.258 5.047 14.63 STD. 40 5.4500 1.0391
0.281 5.001 15.87 5.8644 1.0204
0.312 4.939 17.51 6.4074 .99647
0.344 4.875 19.19 6.9358 .9696
0.375 4.813 20.80 XHY 80 7.4300 .9449
0.500 4.563 27.06 120 9.2534 .8495
0.625 4.313 32.99 160 10.7976 .7590
0.750 4.063 38.59 XXHY 12.0954 .6734
6 6.625 0.109 6.407 7.59 5 3.5769 1.6748
0.134 6.357 9.30 10 4.3475 1.6488
0.156 6.313 10.79 5.0107 1.6260
0.188 6.249 12.94 5.9351 1.5937
0.203 6.219 13.94 6.3804 1.5780
0.219 6.187 15.00 6.8261 1.5620
0.250 6.125 17.04 7.6905 1.5306
0.280 6.065 18.99 STD. 40 8.4958 1.5008
0.312 6.001 21.06 9.3416 1.4688
0.344 5.937 23.10 10.111 1.4391
0.375 5.875 25.05 10.893 1.4082
0.432 5.761 28.60 XHY 80 12.224 1.3541
0.500 5.625 32.74 13.711 1.2909
0.562 5.501 36.43 120 14.9806 1.2346
0.625 5.375 40.09 16.1821 1.1787
0.719 5.187 45.39 160 17.8243 1.0977
0.864 4.897 53.21 XXHY 20.025 .9784
1.000 4.625 60.13 21.7719 .8727
1.125 4.375 66.14 23.1237 .7809
