904L Stainless Steel Bolts Nuts Studs

Manufacturer of ASTM A193 SS 904L Screws, SS 904L Bolts Nuts Prices

904L Stainless Steel Bolts Nuts Studs are made up of material that is low in carbon content. So it becomes easy to use these with welded applications. The material is also highly machinable with low cost. These martensitic grade of ASTM B649 Alloy 904L Fasteners are used in acids, alkalis, water and air for different applications.

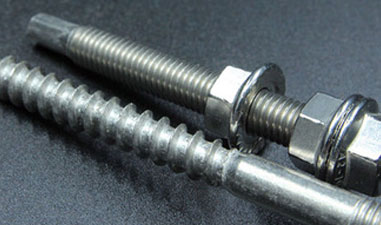

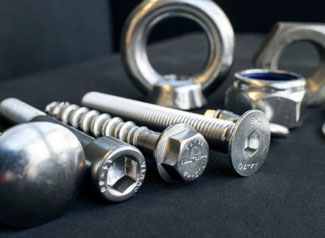

904L Stainless Steel Bolts Nuts Studs

ASTM A193 SS 904L Screws

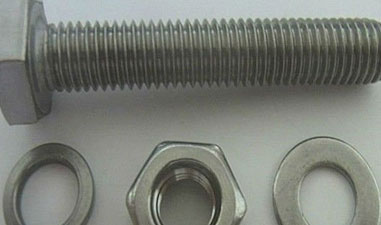

SS 904L Bolts Nuts

We are Largest UNS N08904 Stainless Steel Bolts, ASME SA193 904L Stainless Steel Washers, Stainless Steel 904L Fasteners in Mumbai

NavStar Steel is one of the leading suppliers and leading manufacturers of this martensitic Stainless Steel 904L Fasteners in various dimensions and types. They also belong to the ASTM A193 and DIN, ASTM BS standards. The lengths vary from 3mm to 200mm and the sizes can be from M3 to M56 and 3/6 inches to 2 inches with varying custom sizes as well. Where the application of nuts is not an option, the ASTM A193 SS 904L Screws are used to make sure that the surface is flat after the installation of the fastener.

Table of Contents

• Specification of ASTM A193 SS 904L Screws
• SS 904L Bolts Nuts Composition Chart
• Mechanical Behaviour of UNS N08904 Stainless Steel Bolts
• Properties of ASME SA193 904L Stainless Steel Washers
• List Of Stainless Steel 904L Fasteners Types
• DIN 1.4539 Stainless Steel Stud Equivalent Grades
• SS 904L Threaded Rod Weight per meter
• SS 904L Hex Nuts Size in MM
• Dimension & Sizes of Stainless Steel 904L Threaded Rod
• 904L Screws price in india

The different types of bolts and nuts such as hex head bolts, panel nuts, t bolts, dome nuts and many others are used in different applications for different purposes. The 904L Bolts Nuts are made up of nickel chromium molybdenum alloy with carbon, manganese, silicon, phosphorus, sulfur and nitrogen in the composition. The material is also stronger than the ordinary 304 grade material. The UNS N08904 Stainless Steel Bolts have 220MPa minimum yield strength and 490MPa minimum tensile strength. There are other types of fasteners such as the washers. The ASME SA193 904L Stainless Steel Washers are used in between bolt heads and nuts as well as between any other two components. The washers act as buffers for extended stress and they absorb the stress and fill in the gap between the components for perfect fixture. Please contact us for more information on the fasteners such as the DIN 1.4539 Stainless Steel Stud and other types with their pricing information.

Specification of ASTM A193 SS 904L Screws

Specifications Chart	ASTM A193, ASME SA 193
ASTM Standard	International Standards DIN, ASTM, BS
Length	3 milimeter to 200 milimeter
Size	M3 to M56 | 3/6inch to 2inch | Custom Sizes
Type	Hex Head Bolts, U bolts, Square Bolts, T bolt, Eye bolts, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
Screw Type	SS 904L Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types	SS 904L Hex Head Bolts, Square Bolts, Hex Bolts, T Bolts, Eye Bolts, U Bolts, Counter sunk Bolts, Lag Bolts etc.
Washer Types	SS 904L Lock Washer, Star Washers, Machine Washers, Split Washer, Sealing Washer etc.
Nuts Types	SS 904L Coupling Nuts, Wing Nuts, Hex Head Nuts, Panel Nuts, Square Nuts, Acorn Nuts, T Nuts, Eye Nuts, Dome Nuts, Lock Nuts etc.
Studs Types	SS 904L Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.

SS 904L Bolts Nuts Composition Chart

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
904L	min.	–	–	–	–	–	19.0	4.00	23.00	0.10
	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Behaviour of UNS N08904 Stainless Steel Bolts

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
904L	490	220	35	70-90 typical	–

We holds a wide range of 904L Stainless Steel Threaded Rod & SS 904L Hex Bolts in all Thickness, stock for immediate despatch throughout India & globally.

Properties of ASME SA193 904L Stainless Steel Washers

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
904L	8000	200	15.0	–	–	13.0	–	500	850

List Of Stainless Steel 904L Fasteners Types

5x20 Mm SS 904L Bolts

904L SS Hex Bolts, Size: M6-m55

904L SS I Bolts

SS 904L Hex Bolts, Size: 6-30 Mm

904L Flat Head Bolts SS Bolts And Nuts

904l SS studs bolts

stainless steel 904l cylinder screw bolts

904l (UNS N0804, DIN1.4539) SS Fasteners

ansi 904l SS 1.4539 hex bolts

SS 904l anchor bolts N08904 1.4539 fastener

SS 904L U Bolts Din933

ss 904l cylinder screw bolts 1.4539 m8 m12

NavStar Steel is an ISO certified Stainless Steel 904L Bolts Suppliers in India & SS 904L Screws distributor in India.

DIN 1.4539 Stainless Steel Stud Equivalent Grades

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
904L	N08904	904S13	X1NiCrMoCu25-20-5	1.4539	–	–	SUS 890L

Get DIN 1.4539 Stainless Steel Stud, SS 904L Hex Nuts, View Stainless Steel 904L Threaded Rod Weight Chart

SS 904L Threaded Rod Weight per meter

Size (MM)	Weight per Metre	Size (UNC)	Weight per Mtr
M2	0.0187
M2.5	0.030
M3	0.044
M3.5	0.060
M4	0.078
M5	0.124
M6	0.177	¼”	0.194
M8	0.319	5/16”	0.323
M10	0.500	3/8”	0.469
		7/16”	0.650
M12	0.725	½”	0.896
M14	0.970	9/16”	1.096
M16	1.330	5/8”	1.342
M18	1.650
M20	2.080	¾”	2.021
M22	2.540	7/8”	2.756
M24	3.000	1”	3.638
M27	3.850	1 1/8”	4.545
M30	4.750	1 ¼”	5.718
M33	5.900	1 3/8”	6.842
M36	6.900	1 ½”	8.281
M39	8.200	1 5/8”	9.726
M42	9.400	1 ¾”	11.231
M45	11.000	1 7/8”	13.038
M48	12.400	2	14.741

Special Price Offer For 904L Screws, Stainless Steel 904L Nylon Insert Nuts, Buy 904L SS Bolts in many sizes

SS 904L Hex Nuts Size in MM

Nut Size (mm)	Diameter* (mm)	Height (mm)
		Hex Nuts	Jam Nuts	Nylock Nuts
2	4	1.6	1.2	-
2.5	5	2	1.6	-
3	5.5	2.4	1.8	4
4	7	3.2	2.2	5
5	8	4	2.7	5
6	10	5	3.2	6
7	11	5.5	3.5	-
8	13	6.5	4	8
10	17	8	5	10
12	19	10	6	12
14	22	11	7	14
16	24	13	8	16
18	27	15	9	18.5
20	30	16	10	20

Supplies A Full Range Of Stainless Steel 904L Studs, 904L SS Double Ended Studs, View DIN 1.4539 Fasteners Dimension

Dimension & Sizes of Stainless Steel 904L Threaded Rod

**All measurements in millimeters**

NOMINAL SIZE (D)	BODY DIAMETER		HEAD THICKNEASTM A193		ACROASTM A193 THE FLATS		ACROASTM A193 CORNERS
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Please note this is an approximate Price of 904L Stainless Steel Fasteners Manufacturers in Mumbai, India. For accurate 1.4539 Bolt Price List Please Call on +91 22 6610 9925 or drop an Email to navstarsteel@gmail.com

904L Screws price in India

904L SS Bolts Price List	904L Stainless Steel Nuts Price Per Pcs.
904l (UNS N0804, DIN1.4539) SS Fasteners	$0.01-$1.00/ Piece
904L stainless steel fasteners	$0.10-$5.00/ Piece
SS 904l anchor bolts N08904 1.4539 fastener price	$2.85-$28.55/ Piece
904L 254SMO AL6XN 1.4529 SS fasteners u bolts	$0.10-$999.00/ Set
