Hastelloy C276 Bolts

Factory custom M3X0.5 Alloy C276 Fasteners manufacturers in India, Anti safety UNS N10276 Stud Sizes

Hastelloy C276 Bolts are used in heavy applications for their excellent mechanical qualities. The material is one of the most corrosion resistant materials used in the world. The bolts can be used with welding without having the effect of grain boundary precipitations as it has less to no carbide precipitation while welding. The Hastelloy C276 Bolts can be used in acid processing applications as the material is resistant to most corrosive conditions including heavy sulfur compounds and chlorine ions. This quality makes it applicable in desulfurization machineries, flue gas machineries and in other harsh conditions.

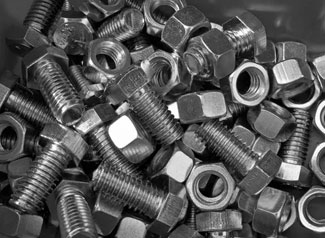

Hastelloy C276 Bolts

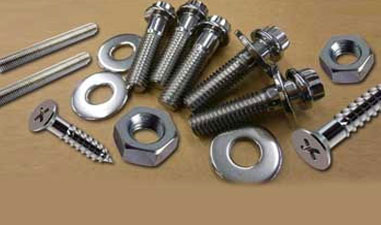

Alloy C276 Fasteners

UNS N10276 Stud

ASTM B564 Hastelloy C276 Nuts, DIN933 DIN931 Hastelloy Alloy C276 Screws, Hot Sales Hardware Hastelloy C276 ASME SB564 Washers price in India.

Navstar Steel is a leading supplier and manufacturer of the Hastelloy C276 Fasteners in various dimensions and types. The material is very strong with some extensive mechanical properties. The specification is ASTM B574 for these bolts. They range in size from M3 through M56, 3/6 inches to 2 inches and custom sizes. The dimensions are governed by the DIN, ASTM, BS and international standards. The Alloy C276 Fasteners can range in length from 3mm to 200mm and there are various types such as lag bolts, countersunk bolts, t bolts, hex bolts, eye bolts and so on.

Table of Contents

• Specification List of Alloy C276 Fasteners
• Chemical Analysis of UNS N10276 Stud
• ASTM B564 Hastelloy C276 Nuts Mechanical Strength Table
• Most Popular Types Of Hastelloy Alloy C276 Screws
• Hastelloy C276 ASME SB564 Washers Material Equivalent
• Weight Of Alloy UNS N10276 Set Screws Per Meter
• ASME SB564 Alloy C276 Stud Bolts Dimension
• Hastelloy C276 Hex Nut price per Piece

The different types are used in different applications for different purposes. The UNS N10276 Stud for example is a structure with a rod in the middle with threads on both ends. The threads are usually male to fit into female threaded components on both ends. The ASTM B564 Hastelloy C276 Nuts possess 355MPa minimum yield strength and 790MPa minimum tensile strength. They also have a high melting point of 1370 degrees Celsius. With the extensive corrosion resistance and the high mechanical properties, these bolts are trusted for high corrosive services in high temperatures and high pressures. The Hastelloy Alloy C276 Screws are used in applications where bolts or nuts are not appropriate. The advantage of the screws is that they can be fitted without nuts and they can sink into the surface to keep the surface flat even after the installation of the fastener. Please contact us for more information on the different fastener types such as the Hastelloy C276 ASME SB564 Washers their prices.

Specification List of Alloy C276 Fasteners

Specifications	ASTM B 574 ASME SB 574
Standard	DIN, ASTM, BS and all International Standards
Length	3 to 200 milimeter
Size	M3 – M56 | 3/6″ to 2″ | Custom Sizes
Type	Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
Screw Type	Hastelloy c276 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types	Hastelloy c276 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolt, T Bolt, U Bolt, Lag Bolts, Counter sunk Bolt etc.
Washer Types	Hastelloy c276 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs Types	Hastelloy c276 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut Types	Hastelloy c276 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.

Standard size Alloy UNS N10276 Set Screws, ASME SB564 Alloy C276 Stud Bolts, Check M12 Customized Hastelloy C276 Hex Nut Dimension

Chemical Analysis of UNS N10276 Stud

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

ASTM B564 Hastelloy C276 Nuts Mechanical Strength Table

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Most Popular Types Of Hastelloy Alloy C276 Screws

hastelloy c276 bolt Stud Bolts Hex Bolts And Nut

M10 Hastelloy C-276 Bolts and Nut

Hastelloy C-276 Bolts and Nuts and Washers

DIN975 Alloy C276 UNS N10276 W.Nr.2.4819 Alloy C276 Full Threaded Stud Bolts

hastelloy C276 hexagon head flange bolts

Hastelloy C276 C3-80 B2 double-threaded stud bolts

din931 Alloy c276 UNS N0276 2.4819 hex head bolts hex bolts

Alloy c276 bolts truss hex bolts

Alloy c276 n10276 bolts hex bolts

Alloy Nut Bolts, Size: M6 To M64

Alloy c276 bolts hex 180w hexagon bolts

3 to 200 milimeter Alloy C276 Fasteners

Hastelloy C276 ASME SB564 Washers Material Equivalent

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Weight Of Alloy UNS N10276 Set Screws Per Meter

MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH in Milimeter	DIAMETER
	M 5	M 6	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
16	0.448	0.743	1.590	3.211
20	0.598	0.812	1.711	3.411	4.892
25	0.660	0.897	1.871	3.660	5.252	8.170
30	0.737	1.010	2.070	3.912	5.574	9.690	10.707		18.657
35	0.804	1.120	2.271	4.223	5.974	10.000	11.416	16.026	19.608
40	0.881	1.230	2.470	4.533	6.410	10.288	12.107	16.667	20.747
45	0.958	1.340	2.671	4.840	6.859	10.504	12.821	17.241	21.739
50	1.030	1.450	2.870	5.155	7.299	11.261	13.624	17.857	22.727	28.409
55		1.560	3.071	5.464	7.740	11.628	14.409	18.868	23.810	30.120
60		1.670	3.270	5.774	8.183	12.255	15.244	20.000	25.126	32.051
65		1.781	3.472	6.083	8.621	12.626	16.026	21.008	26.455	34.014
70		1.890	3.671	6.394	9.058	12.987	16.835	22.124	27.778	35.461
75		2.000	3.873	6.702	9.506	13.228	17.606	23.256	29.070	39.063
80		2.111	4.072	7.013	10.000	13.889	18.248	24.510	30.303	40.000
90			4.472	7.634	10.917	14.925	19.841	26.042	33.113	41.667
100			4.873	8.251	11.820	16.340	21.459	27.778	35.714	46.296
110				8.881	12.723	17.730	23.041	31.250	38.168	47.170
120				9.506	13.624	18.797	24.631	32.895	40.984	50.000
130				10.101	14.535	20.000	26.316	34.722	43.478	52.632
140				10.707	15.432	20.833	27.933	35.461	46.296	55.556
150				11.312	16.340	22.222	29.412	37.594	48.544	58.824
160				11.905	17.241	24.272	31.056	40.984	50.505	61.728
170				12.500	18.116		32.680		53.191	64.935
180				13.123	19.011	26.882	34.247		55.556	67.568
190				13.736	19.920		35.971		58.140	70.423
200				14.327	20.833	29.586	37.594	49.020	60.976	73.529
220				15.528	22.624		40.650		65.789	79.365
240				16.722	24.510		43.860		71.429	84.746
250				17.301	25.381		45.455		74.627	87.719
260				17.921	26.316		47.170		76.923	90.909
280				19.157	28.090		50.505		81.967	98.039
300				20.325	29.940		53.763		87.719	104.167
320					31.646		56.818		92.593
340					33.557		60.241		98.039
360					35.211		63.291		104.167
380					37.037		66.667		108.696
400					39.063		69.444		113.636

M5 M6 M10 UNS N10276 Threaded Rod, Hastelloy C276 Hex Bolts, High Quality Hardware Fasteners C276 Alloy Socket Head Cap Screws in India

ASME SB564 Alloy C276 Stud Bolts Dimension

**All measurements in millimeters**

NOMINAL SIZE (D)	BODY DIAMETER		HEAD THICKNESS		ACROSS THE FLATS		ACROSS CORNERS
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

ASTM B564 Hastelloy C276 Shoulder Nuts, Half Full Thread UNS N10276 U Bolts, DIN6921 8mm ASME SB564 Eye Bolts High quality durable ANSI B16.5 Hastelloy C276 Square Bolts

Hastelloy C276 Hex Nut price per Piece

Hastelloy C276 Fasteners Price List	Price Per Pcs.
Hastelloy C276 Machine bolts price	USD $5.20
Alloy C276 Hex head bolts price	USD $6.15
Alloy C276 Socket Head Cap Screw price	USD $3.50
Alloy C276 Screws price	USD $3.10
