Stainless Steel 310 Pipe Fittings

ASME B16.9 ASTM A403 WP 310 Buttweld Elbow manufacturer in India, Check 310 Stainless Steel Buttweld Fittings Dimension

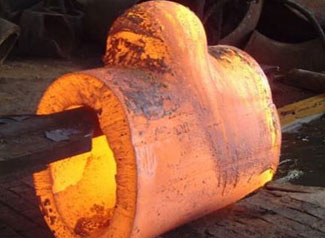

Stainless Steel 310 Pipe Fittings are more corrosion resistant than the 304 and 316 grade fittings. They are also oxidation resistant and high temperature resistant. These are meant for pressure pipe applications. Navstar Steel is a leading manufacturer and supplier and manufacturer of the Stainless Steel 310 Pipe Fittings in different sizes and types. The material of the fittings has 24% chromium and 19% nickel in the composition along with carbon, manganese, silicon, phosphorus, sulfur, molybdenum and nitrogen. This specific composition provides the material with extra corrosion resistance and strength as well.

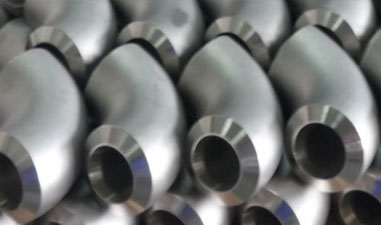

Stainless Steel 310 Pipe Fittings

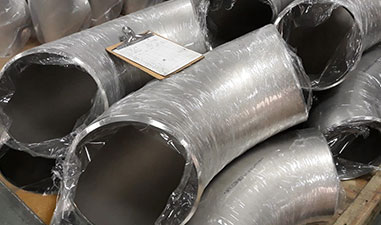

ASTM A403 WP 310 Buttweld Elbow

310 Stainless Steel Buttweld Fittings

High Pressure Pipeline Welded Grade 310 Stainless Steel 90 degree Elbow, Check Best Quality Glossy Finish SAE 310 Stainless Steel Cross Price in India.

The ASTM A403 WP 310 Buttweld Elbow is a fitting that is applied to turn a pipe in a different direction with 45 degrees angle or 90 degrees angle usually. There are differently sized elbows as well. They are either the short radius elbows or the long radius elbows. The 310 grade steel has 205MPa minimum yield strength and 515MPa minimum tensile strength. The 310 Stainless Steel Buttweld Fittings can also operate under high temperatures because of the high melting point. The melting point of 310 material is 1402 degrees Celsius. This allows the fittings to be used in high pressure and high temperature services like the heat exchangers and boiler components.

Table of Contents

• ASTM A403 WP 310 Buttweld Elbow Specification Format
• Weight Chart Of 310 Stainless Steel Buttweld Fittings
• List Of Grade 310 Stainless Steel 90 degree Elbow Types
• Equivalent Of SAE 310 Stainless Steel Cross
• Chemical Standard of 310 Stainless Steel Pipe Fittings
• SS UNS S31000 Reducer Dimensions Chart
• SS 310 Grade Equal Tee Price per piece
• Properties of Stainless Steel Grade 310 3d Pipe Bend

The Grade 310 Stainless Steel 90 degree Elbow is one of the most used types. The elbows are preferred over the bends because they avoid the heavy pressure exposure to the walls of the fittings by extending the distance of turn. The fittings come under the specification ASTM A182 and with outer diameters ranging from 1/16 inches to 2 inches. There are different threaded types such as NPT, BSP, BSPT and so on. The SAE 310 Stainless Steel Cross is a fitting that can connect four pipes at one point. These fittings come under different pressure ratings such as 6000psi and so on. Please contact us for more information and pricing on the 310 grade stainless steel fittings.

ASTM A403 WP 310 Buttweld Elbow Specification Format

Specifications	ASTM A403 / ASME SA403
Size	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Type	Seamless / Welded / Fabricated

1.4841 AISI 310 SS WP 45 degree Elbow, Seamless/ welded SS UNS S31000 Reducer, Check SS 310 Grade Equal Tee weight chart

Weight Chart Of 310 Stainless Steel Buttweld Fittings

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

List Of Grade 310 Stainless Steel 90 degree Elbow Types

seamless 90 degree sch 40 310 stainless pipe fittings elbow

Stainless 310 Pipe Fittings, Hex Nipple , Nipple

stainless pipe fittings/ss 310 Male hose nipple pipe fittings

1/2"-24" inch 310stainless steel fittings butt-welded elbow

ASME B16.9 Stainless 310 Butt Weld Cross Pipe Fittings

Stainless Steel SS310 90 Degree Butt Weld Elbow Sanitary Pipe Fittings

Stainless Steel 45 Degree Elbow SS310 Butt Welded Pipe Fittings

60 degree Stainless Steel 310 butt weld tee asme b16.9 stainless steel fittings

Stainless Steel 310 Butt Weld Tee

1mm - 40mm thickness, SS 310 Buttweld Fittings

stainless steel fittings 310S butt welding dn500 pipe fittings stub end

45 Degree 310 Stainless Steel Short Bend Weld Fittings

Equivalent Of SAE 310 Stainless Steel Cross

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21

SUS 310 Stainless Steel Short Radius Elbow, 24 inch, ANSI B 16.9 ASTM A403 F310 Stainless Butt weld Pipe Fittings, View Stainless Steel 310 5d Bend properties.

Chemical Standard of 310 Stainless Steel Pipe Fittings

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 310	0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 – 26.00	0.10 max	19.00 – 21.00	54.7 min
SS 310S	0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 – 26.00	0.75 max	19.00 – 21.00	53.095 min

SS UNS S31000 Reducer Dimensions Chart

Nominal Pipe Size	Outside Diameter		Caps	Straight Tees	Straight Crosses	Stub Ends
(inches)	(mm)	(inches)	Length (inches)	Center to End (inches)	Center to End (inches)	Lap Diameter (inches)	Long Length (inches)	Short Length (inches)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

SS 310 Grade Equal Tee Price per piece

ASTM A403 WP310s Pipe Fittings Price Per Piece in India	ASTM A403 WP310h Fittings Price in INR	ASTM A403 WP310h Fittings Price in UAE Dirham
ASTM A403 WP310 Buttweld Fittings Price in India	Rs. 405	UAE Dirham 20.75
ASTM A403 WP310s Pipe Fittings Price in India	Rs. 291	UAE Dirham 14.91
ASTM A403 WP310h Buttweld Pipe Fittings Price List	Rs. 623	UAE Dirham 31.92
ASTM A403 WP310 Elbow Cost in Mumbai	Rs. 580	UAE Dirham 29.72
Price of ASTM A403 WP310h Fittings in Mumbai	Rs. 676	UAE Dirham 34.64

Buy directly from SS 310 180 Deg bend, Own stockyard of 310 Stainless Steel Pipe Bend, Buttweld End 310 SS Pipe End Cap, Stainless 310 Grade Pipe Fittings Mechanical Properties.

Properties of Stainless Steel Grade 310 3d Pipe Bend

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1402 °C (2555 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %
