ASTM A691 Grade 1-1/4 CR Class 22 Pipe
Manufacturer of ASTM A691 Grade 2.1/4CR Seamless Pipe, ASTM A691 9CR Cl22 ERW Pipe
ASTM A691 Grade 1-1/4 CR Class 22 Pipe comes under the A691 specification. This specification covers alloy steel pipes and carbon steel pipes that are fusion welded with filler materials. The pipes can also be fabricated from pressure vessel quality sheets. The ASTM A691 Grade 2.1/4CR Seamless Pipe is deemed as suitable for high pressure and high temperature applications.

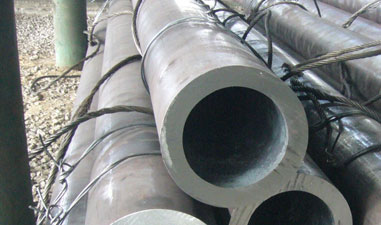

ASTM A691 Grade 1-1/4 CR Class 22 Pipe
ASTM A691 Grade 2.1/4CR Seamless Pipe
ASTM A691 9CR Cl22 ERW Pipe
Buy ASTM A691 Pipe, ASME SA691 EFW Pipe, Check Dimension Chart of ASTM A691 Material
There are different classes to the material ranging from class 10 through class 50. The material could be heat treated. The welding of the pipes is done either manually or automatically. The ASTM A691 9CR Cl22 ERW Pipe has different grades such sa 5CR, 9CR, P5, P11 and each of the grades have specific chemical composition and a set of mechanical properties. The pipes are used in different industrial applications according to the characteristics of each grade such as the ASTM A691 5CR Welded Pipe.
Table of Contents
- Specification Of ASTM A691 Grade 2.1/4CR Seamless Pipe
- ASTM A691 9CR Cl22 ERW Pipe Thickness
- ASTM A691 5CR Welded Pipe Sizes
- ASTM A691 Pipe Tensile Chart
- Heat Treatment of ASME SA691 EFW Pipe
- Chemical Analysis of ASTM A691 Material
- ASTM A691 GRADE 1 1/4 CR AS Pipes Mechanical Table
- Different A691 triangular Pipe Types
- Equivalent Material of ASTM A691 Gr.91 Hex pipes
- ASTM A691 Class 22 steel pipe Weight Per Foot Chart
- ASTM A691 Grade 2.1/4cr Alloy Steel EFW Pipes Grade
- ASTM A691 CM 70 Rectangular pipes Price List
The seamless pipes range in outer diameter from 17mm to 914mm, the LSAW pipes range from 18 inches to 56 inches. The wall thickness of the pipes ranges from 2mm to 60mm and the schedules range from sch10 through XXS. The length of the ASTM A691 Pipe products ranges from single random to double random and custom sizes. The pipes can also have different ends such as the plain end, beveled end, protect by plastic caps on both sides and other types as well. The ASME SA691 EFW Pipe is welded through a procedure called the electric fusion weld. A high temperature electric arc is used to weld the pipes together from strips or sheets of pressure vessel quality grades of materials. Please feel free to contact us for more information on the ASTM A691 Material and pricing.
Specification Of ASTM A691 Grade 2.1/4CR Seamless Pipe
| Grade | Alloy Steel ASTM A691 Cl22, A691 GRADE 1 CR, GRADE 1/2 CR, GRADE 1 1/4 CR, GRADE 2 1/4 CR, GRADE 3 CR, GRADE 5 CR, GRADE 9 CR, GRADE 91, CM 65, CM 70, CM 75 |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Class Designation | Class 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 34, 40, 41, 42, 43, 50, 51, 52, 53, 60, 61, 62, 63, 70, 71, 72, 73 |
| ASTM A691 Grades | ASTM A691 Gr 11, ASTM A691 Gr.91, ASTM A691 9cr, ASTM A691 5cr, ASTM A691 1 1/4cr Cl22, ASTM A691m, ASTM A691 Gr.5cr Cl22, ASTM A691 Cm70, ASTM A691 Class 22, ASTM A691 Class 42, ASTM A691-91, ASTM A691 Grade 2.1/4cr, ASTM A691 11/4cr Cl22 |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter ASTM A691 Pipe |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
ASTM A691 5CR Welded Pipe polished, 2 inch ASTM A691 GRADE 1 1/4 CR Alloy Steel Pipes, Check available sizes of A691 triangular Pipe
ASTM A691 9CR Cl22 ERW Pipe Thickness
| ASTM A691 Pipe Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| A691 Alloy Steel EFW Pipe (Custom Sizes) | 1/2" NB - 60" NB | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Custom |
| ASTM A691 Welded Pipe (in Stock + Custom Sizes) | 1/2" NB - 24" NB | As per requirement | Custom |
| ASTM A691 ERW Pipe (Custom Sizes) | 1/2" NB - 24" NB | As per requirement | Custom |
| Alloy Gr.5 CR High Pressure Boiler Pipe | 16" NB - 100" NB | As per requirement | Custom |
ASTM A691 5CR Welded Pipe Sizes
| ASTM A691 Grade 1-1/4 CR Class 22 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
ASTM A691 Pipe Tensile Chart
| Grade | Tensile (MPa) | Yield (MPa) | Elong. (50mm) | Reduc’n of Area* |
|---|---|---|---|---|
| 1CR | 380 – 550 | 230 min | 22% min | – |
| 1-1/4CR | 415 – 585 | 240 min | 22% min | – |
| 2-1/4CR, 5CR, 9CR | 415 – 585 | 205 min | 18% min | 40% min |
| 91 | 415 – 585 | 205 min | 18% min | 40% min |
Grade Tensile (MPa) Yield (MPa) Elong. (50 mm) Reduc’n of Area*
| 2 | 485 – 620 | 310 min | 22% min | – |
| 1-1/4CR | 515 – 690 | 310 min | 22% min | – |
| 1CR | 450 – 585 | 275 min | 22% min | – |
| 2-1/4CR, 5CR, 9CR | 515 – 690 | 310 min | 18% min | 40% min |
| 91 | 585 – 760 | 415 min | 18% min | – |
Heat Treatment of ASME SA691 EFW Pipe
| Pipe Grade | ASTM Specification | Post-Weld Heat-Treat Temperature Range (Stress Relieving), °F (°C) | Normalizing Temperature max unless otherwise noted, | Quenching Temperature max unless otherwise noted,°F (°C) | Tempering Temperature, min, °F (°C) |
| CM-65 | A 204/A 204M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CM-70 | A 204/A 204M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CM-75 | A 204/A 204M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CMSH-70 | A 537/A 537M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CMS-75 | A 299/A 299M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CMSH-80 | A 537/A 537M | 1100 to 1200 (590 to 650) | A | 1700( 925) | 1100 to 1250 (590 to 675) |
| 1/2CR | A 387/A 387M | 1100 to 1300 (590 to 705) | 1850 (1010) | 1700( 925) | 150 to 1375 (620to745) |
| 1CR | A 387/A 387M | 1100 to 1350 (590 to 730) | 1850 (1010) | 1700 (925) | 150 to 1375 (620to745) |
| 11⁄4CR | A 387/A 387M | 1100 to 1375 (590 to 745) | 1850 (1010) | 1700 (925) | 150 to 1375 (620to745) |
| 21⁄4CR | A 387/A 387M | 1200 to 1400 (650 to 760) | 1850 (1010) | 1700 (925) | 250 to 1400(675 to760) |
| 3CR | A 387/A 387M | 1200 to 1400 (650 to 760) | 1850 (1010) | 1700 (925) | 250 to1400 (675 to760) |
| 5CR | A 387/A 387M | 1200 to 1400 (650 to 760) | 1850 (1010) | 1650 (900) | 1300 to1400 (705 to760) |
| 9CR | A 387/A 387M | 1325 to 1375 (715 to 745) | B | … | 1325 to1375 (715 to745) |
| ASTM A691 Gr.91 | A 387/A 387M | 1350 to 1420 (730 to 770) | 11900 to 2000 (1040 to 1095) | 1900 min (1040 min) | 1350 to 1440 (730 to 780) |
Chemical Analysis of ASTM A691 Material
| 1CR | 1-1/4CR | 2-1/4 CR | 5 CR | 9 CR | 91 | |
| C | 0.05-0.17 | 0.05-0.17 | 0.05-0.15 | 0.15 | 0.15 | 0.08-0.12 |
| Mn | 0.40-0.65 | 0.40-0.65 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 |
| P | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 |
| S | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.010 |
| Si | 0.15-0.40 | 0.50-0.80 | 0.50 | 0.50 | 1.00 | 0.20-0.50 |
| Cr | 0.80-1.15 | 1.00-1.50 | 2.00-2.50 | 4.00-6.00 | 8.00-10.00 | 8.00-9.50 |
| Mo | 0.45-0.60 | 0.45-0.65 | 0.90-1.10 | 0.45-0.65 | 0.90-1.10 | 0.85-1.05 |
| V | – | – | – | – | 0.04 | 0.18-0.25 |
ASTM A691 GRADE 1 1/4 CR AS Pipes Mechanical Table
| Class | Heat Treatment on Pipe Section see: | Radiography, see Section | Pressure Test, see : |
| 10 | none | none | none |
| 11 | none | 9 | none |
| 12 | none | 9 | 8.3 |
| 13 | none | none | 8.3 |
| 21 | stress relieved, see 6.3.1 | none | none |
| 21 | stress relieved, see 6.3.1 | 9 | none |
| ASTM A691 Class 22 | stress relieved, see 6.3.1 | 9 | 8.3 |
| 23 | stress relieved, see 6.3.1 | none | 8.3 |
| 31 | normalized, see 6.3.2 | none | none |
| 31 | normalized, see 6.3.2 | 9 | none |
| 32 | normalized, see 6.3.2 | 9 | 8.3 |
| 33 | normalized, see 6.3.2 | none | 8.3 |
| 40 | normalized and tempered, see 6.3.3 | none | none |
| 43 | normalized and tempered, see 6.3.3 | 9 | none |
| 43 | normalized and tempered, see 6.3.3 | 9 | 8.3 |
| 43 | normalized and tempered, see 6.3.3 | none | 8.3 |
| 50 | quenched and tempered, see 6.3.4 | none | none |
| 51 | quenched and tempered, see 6.3.4 | 9 | none |
| 52 | quenched and tempered, see 6.3.4 | 9 | 8.3 |
| 53 | quenched and tempered, see 6.3.4 | none | 8.3 |
| 60 | normalized and precipitation heat none none treated | none | none |
| 61 | normalized and precipitation heat none none treated | 9 | none |
| 62 | normalized and precipitation heat none none treated | 9 | 8.3 |
| 63 | normalized and precipitation heat none none treated | none | 8.3 |
| 70 | normalized and precipitation heat none none treated | none | none |
| 71 | normalized and precipitation heat none none treated | 9 | none |
| 72 | normalized and precipitation heat none none treated | 9 | 8.3 |
| 73 | normalized and precipitation heat none none treated | none | 8.3 |
Different A691 triangular Pipe Types
ASTM A691 Gr.1.25 CR/CL SAW Steel Pipe
14 inch schedule 40 ASTM A691 steel pipe
2 inch mirror polished ASME SA691 EFW Pipe
1/2 inch, ASTM A691 Grade 91 Pipe
Steel Pipes EFSW ASTM A691 CLASS 42, Size: 2 inch
Size: 2 inch Mild Steel ASTM A691 EFW Pipes, Thickness: 2-5 Mm
ASTM A691 Seamless Pipes, Nominal Size: 3 inch
1.5mm thickness ASTM A691 Round Pipes
schedule 40 ASTM A691 Welded Pipes
hot-rolled 100mm diameter square pipe ASTM A691
8 inch ASTM A691 Welded Seamless Pipes
ASTM A691 seamless steel thickness 4mm pipe tube
Equivalent Material of ASTM A691 Gr.91 Hex pipes
| Pipe Grade | Type of Steel | ASTM Specification | HB, max | |
| Number | Grade | |||
| CM-65 | carbon-molybdenum steel | A204/A204M | A | 201 |
| CM-70 | carbon-molybdenum steel | A204/A204M | B | 201 |
| CM-75 | carbon-molybdenum steel | A204/A204M | C | 201 |
| CMSH-70 | carbon-manganese-silicon steel, normalized | A537/A537M | 1 | |
| CMS-75 | carbon-manganese-silicon steel | A299/A299M | — | — |
| CMSH-80 | carbon-manganese-silicon steel, quenched and tempered | A537/A537M | 2 | |
| 1/2 CR | 1/2 % chromium, 1/2 % molybdenum steel | A387/A387M | 2 | 201 |
| 1 CR | 1 % chromium, 1/2 % molybdenum steel | A387/A387M | 12 | 201 |
| 1 1/4 CR | 1 1/4 % chromium, 1/2 % molybdenum steel | A387/A387M | 11 | 201 |
| 2 1/4 CR | 2 1/4 % chromium, 1 % molybdenum steel | A387/A387M | 22 | 201 |
| 3 CR | 3 % chromium, 1 % molybdenum steel | A387/A387M | 21 | 201 |
| 5 CR | 5 % chromium, 1/2 % molybdenum steel | A387/A387M | 5 | 225 |
| 9 CR | 9 % chromium, 1 % molybdenum steel | A387/A387M | 9 | 241 |
| 91 | 9 % chromium, 1 % molybdenum, vanadium, columbium | A387/A387M | 91 | 241 |
ASTM A691 Class 22 steel pipe, ASTM A691 Grade 2.1/4cr Alloy Steel EFW Pipes weight, buy ASTM A691 CM 70 Rectangular pipes at best prices
ASTM A691 Class 22 steel pipe Weight Per Foot Chart
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
recision Welded ASTM A691 CM 9 Alloy Steel Square Pipes, A691 GRADE 1/2 CR Alloy Steel Hollow Pipes, View ASTM A691 Gr.91 Hex pipes grades
ASTM A691 Grade 2.1/4cr Alloy Steel EFW Pipes Grade
- ASTM A691 GRADE 1 1/4 CR Alloy Steel Pipes
- ASTM A691 Carbon Steel & Alloy Steel Electric-Fusion Welded Pipes
- Grade CM65/ CM-65
- Grade CM70/ CM-70
- Grade CM75/ CM-75
- Grade CMSH70/ CMSH-70
- Grade CMS75/CMS-75
- Grade 1/2CR/-1/2 CR
- Grade 1CR/-1 CR
- Grade 12/-12
- Grade 1.1/4CR/-1.1/4 CR
- Grade 11/-11
- Grade 2.1/4CR/ -2.1/4 CR
- Grade 22/-22
- Grade 3CR/-3 CR
- Grade 21/ -21
- Grade 5CR/ -5 CR
- Grade 5/ -5
- Grade 9CR/ -9 CR
- Grade 9/ -9
- Grade 91/ -91
ASTM A691 CM 70 Rectangular pipes Price List
| Price of ASTM A691 Pipe | ASME SA691 ERW Pipe Price |
|---|---|
| ASTM A691 Gr.1.25 CR/CL SAW Steel Pipe in india | $450.00-$550.00 |
| ASTM A691 Material Price in India | $1,200.00-$5,000.00 |
| ASTM A691 5CR Welded/ERW Pipe | $900.00-$1,200.00 |
