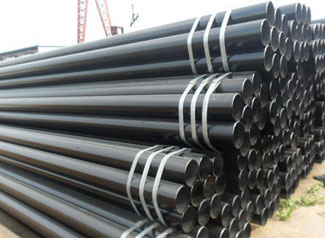

API 5L Grade B ERW and Seamless Pipe PSL1/ PSL2

API 5L Grade B Pipe Thickness, API 5L Grade B ERW Pipe Suppliers in india

API 5L Grade B ERW Pipe is made up of a steel material that has carbon, manganese, copper, nickel, chromium, molybdenum phosphorus, sulfur and vanadium in the composition. The material also has good strength. Navstar Steel is a leading supplier and manufacturer of these API 5L Grade B Seamless Pipe products in various dimensions and types. There are also welded pipes.

API 5L Grade B Seamless Pipe

API 5L Grade B Pipe

API 5L Grade B ERW Pipe

Manufacturer of API 5L Grade B Carbon Steel Seamless Pipe, API 5L Grade B Welded Pipe, Check API 5L Grade B PSL1 Specification

The dimensions of the pipes vary from ½ inches to 48 inches in outer diameters. As one of the leading API 5L Grade B Pipe Suppliers we provide the materials in two different product specifications namely the PSL 1 and PSL 2. The PSL 1 is the most used. The carbon steel pipes are also available in different schedules. The schedules range from 5s through XXS. The API 5L Grade B Carbon Steel Seamless Pipe comes in different finishes as well.

The finishes range as plain, bevel ended, screwed and threaded pipes. The length of the pipes vary from single random, double random to required and custom lengths as cut to sizes. The API 5L Grade B Welded Pipe has high absolute roughness than the seamless pipes. The seamless pipes can be used for more dimensionally accurate applications. The pipes can also be manufactured through hot rolling and cold drawing procedures. The API 5L Grade B PSL1 Line Pipe can come in different coatings such as fusion bond epoxy resin coated, galvanized, sand blasted, machined and other types. The API 5L Gr B PSL2 Pipe has higher mechanical properties than the PSL 1 pipes and these are used for higher stress applications. The material has high resistance to corrosion cracking. As the CS API 5L Grb Material is carbon steel, it has high toughness and is resistant to wear and tear.

Specification Chart of API 5L Grade B Pipe

Size Range	1/2 to 36 inch NB
Schedule Thickness Range	SCH 40, 80, 160, XS, XXS, All Schedules
Applications	Oil Refineries, Power Generation, Petrochemicals, Sugar, Pressure Vessels, Boiler Equipments, General Engineering Purposes
Pipe Type	Seamless, ERW, Welded, Fabricated, CDW
Pipe & Tube Form	Round, Square, Rectangular, Coiled, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length:	Single, Double Random & Length, Custom Size – 12 M lengths
End:	Beveled End, Plain End, Treaded
End Protection:	Plastic Caps
End Connections for Line Pipes	Plain, Bevel, Screwed, Threaded
Outside Coating	Black Painting, Anti-Corrosion Oil, Galvanised Finish

Buy Carbon steel API 5L Gr B PSL2 Pipe, CS API 5L Grb Material tolerance, Quenching API 5L grade b saw pipe For Fastest Delivery To Our Customers.

API 5L Grade B ERW Pipe Tolerance

OD Tolerance		WT Tolerance
OD Tolerance		A, B		X42 ~ X70
D<60.3milimeter	+0.41/-0.40milimeter	D<73milimeter	+20%/-12.5%	D<73milimeter	+15%/-12.5%
D>=60.3milimeter	+0.75/-0.40milimeter	D>=73milimeter	+15%/-12.5%	D>=73milimeter	+15%/-12.5%

Size Chart of API 5L Grade B Carbon Steel Seamless Pipe

API 5L Grade B ERW and Seamless Pipe OD milimeter	Pipe WT milimeter	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Mechanical Properties of API 5L Grade B PSL1 Specification

Grade	Yield Strength(Min.)		Tensile Strength(Min.)		Elongation
Mechanical Properties PSL 1
Grade	Ksi	MPa	Ksi	MPa	E=1944 A 0.2 /U 0.9
B	35	241	60	414
X42	42	290	60	414
X46	46	317	63	434
X52	52	359	66	455
X56	56	386	60	414
X60	60	414	63	434
X65	65	448	66	455

Grade	Yield Strength				Tensile Strength				Elongation
Mechanical Properties PSL 2
	Min		Max		Min		Max		E=1944 A 0.2 / U 0.9
	Ksi	MPa	Ksi	MPa	Ksi	MPa	Ksi	MPa
B	35	241	65	448	60	414	110	758
X42	42	290	72	496	60	414	110	758
X46	46	317	76	524	63	434	110	758
X52	52	359	77	531	66	455	110	758
X56	56	386	79	544	71	490	110	758
X60	60	414	82	565	75	517	110	758
X65	65	448	87	600	77	531	110	758

Types Of Carbon steel API 5L Gr B PSL2 Pipe

API 5L grade B sch40 seamless steel pipes

Carbon Steel 5L grade B sch40 seamless steel pipes

5L GrB carbon steel seamless pipes

API 5L grade B sch10 steel pipes

6 Inch Sch80 12m API 5L Grade B Coating 3LPE Seamless Steel Pipe

6 Inch Sch80 12m 5L Grade B Coating 3LPE Seamless Steel Pipes

Carbon Steel Pipe Api 5l Grade B Erw Black

CS Pipe 5l Grade B Erw Black

API 5L Carbon Steel/Galvanized Mild Steel welded Pipe/seamless Pipes

Carbon Steel 5L/Galvanized Mild Steel welded Pipes/seamless Pipes

carbon steel 5L GR.B seamless pipes

14Inch SCH10 API 5L Grade B PSL1 Mild Steel Line Pipe

14Inch SCH10 5L Grade B PSL1 Mild Steel Line Pipes

5L grade b SCH 40 80 160 carbon seamless steel pipe

carbon steel 5L grade b SCH 40 80 160 seamless steel pipes

ASME B36.10 5L Grade B CS Welded Pipe 114.3 x 8.56mm Beveled Ends

2In SCH 40 5L Grade B PLS2 Seamless Pipe

CS 5L Grade B 3IN x SCH40 x 5.8 Meters Seamless Steel Pipe

CS API 5L Grb Material Chart And Weight

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

We Provide A Complete Range Of API 5L Gr. B Pipe, API 5L gr.b psl 2- dsaw Material At Discounted Prices, Manufacting high-class API 5L Grade b PSL1 and PSL2 Material

API 5L grade b saw pipe Price

API 5L Grade B Pipe Price List	API 5L Grade B ERW and Seamless Pipe Per Unit (INR)
36Inch SCH STD SSAW Pipe 100% Radiography API 5L GRADE B PSL1 price	$480.00-$800.00/ Ton
API 5L Grade B Large Diameter SSAW Steam Steel Pipe	$500.00-$580.00/ Ton
API 5L Grade B sch 160 carbon steel seamless pipe	$650.00-$1,500.00/ Ton
14Inch SCH10 API 5L Grade B PSL1 Line Pipe	$500.00-$800.00/ Ton

Contact US Today For CS API 5L B Pipe, API 5L Grade B PSL1 Line Pipe dimension, View sizes of API 5L Grade B Seamless Pipe

Dimensions of API 5L Gr. B Pipe

NB	DN	OD (inches)	Pipe Schedule
NB	DN	OD (inches)	SCH 5	SCH 10	SCH 20	SCH 30	SCH 40	SCH 60	SCH 80	SCH 100	SCH 120	SCH 160
3/4"	20	1.05	0.065	0.11	x	0.095	0.113	x	x	0.17	x	0.219
1"	25	1.315	0.065	0.11	x	0.114	0.133	x	x	0.2	x	0.25
1.1/2"	40	1.9	0.065	0.11	x	0.125	0.145	x	x	0.225	x	0.281
2"	50	2.375	0.065	0.12	x	x	0.154	x	x	0.25	x	0.344
2.1/2"	65	2.875	0.083	0.12	x	x	0.203	x	x	0.3	x	0.375
3"	80	3.5	0.083	0.12	x	x	0.216	x	x	0.35	x	0.438
4"	100	4.5	0.083	0.12	x	x	0.237	x	x	0.437	x	0.531
5"	125	5.563	0.109	0.12	x	x	0.258	x	x	0.5	x	0.625
6"	150	6.625	0.109	0.13	x	x	0.28	x	x	0.562	x	0.719
8"	200	8.625	0.109	0.15	0.25	0.277	0.322	0.406	0.593	0.718	0.812	0.906
10"	250	10.75	0.134	0.17	0.25	0.307	0.365	0.5	0.718	0.843	1.0	1.125
12"	300	12.75	0.165	0.18	0.25	0.33	0.406	0.5	0.843	1.0	1.125	1.312

Difference Between PSL1 and PSL2

	PSL1	PSL2
CVN impact (Charpy) testing	None required	Required for all grades
Certification	Certificates when specified per SR15	Certificates (SR 15.1) mandatory
Nondestructive inspection of seamless	Only when purchaser specifies SR4	SR4 mandatory
Hydrostatic Test	Required	Required
Traceability	Traceable only until all tests are passed, unless SR15 is specified	Traceable after completion of tests (SR 15.2) mandatory
